  • Capricorn 7 Standard Toilet Building with Ironstone and Shale Grey colour scheme

    Capricorn 7 Standard Toilet Building with Ironstone and Shale Grey colour scheme

  • Capricorn 3 with Modwood external walls

    Capricorn 3 with Modwood external walls

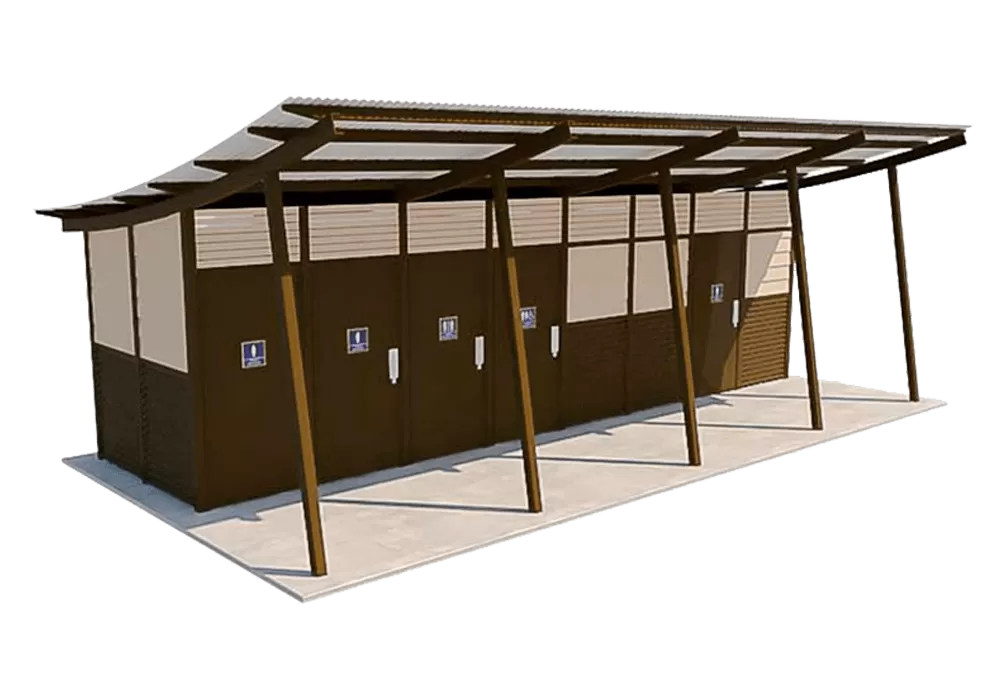

  • Capricorn 7 Standard Toilet Building with Paperbark and Jasper colour scheme

    Capricorn 7 Standard Toilet Building with Paperbark and Jasper colour scheme

  • Capricorn 5 in Woodland Grey and Shale Grey colour scheme

    Capricorn 5 in Woodland Grey and Shale Grey colour scheme

  • Capricorn 7 Standard Toilet Building with Pale Eucalypt and Surfmist colour scheme

    Capricorn 7 Standard Toilet Building with Pale Eucalypt and Surfmist colour scheme

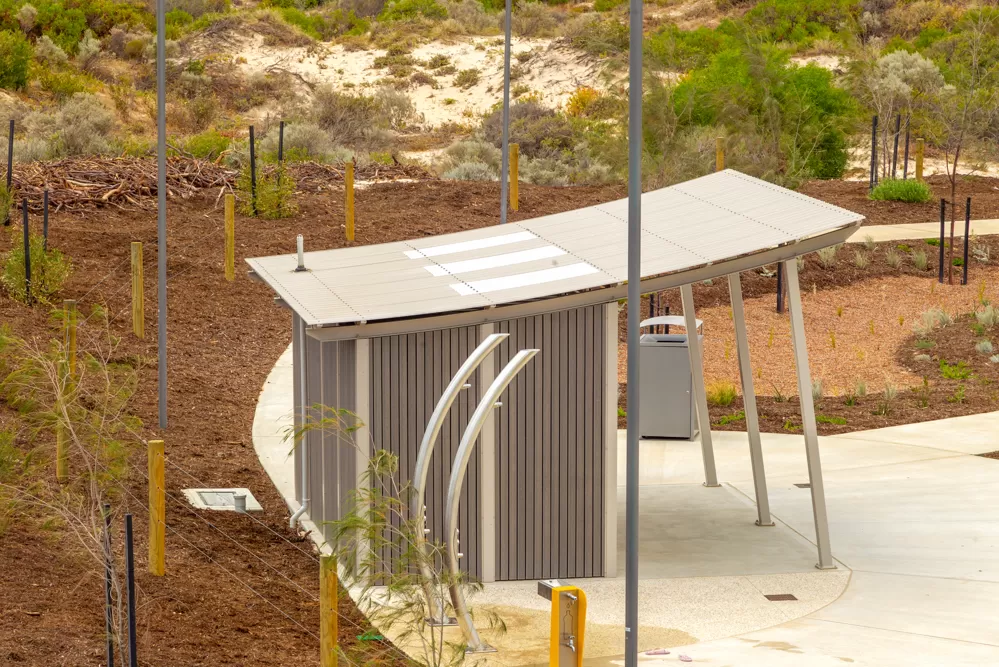

  • Capricorn in coastal setting with it's distinctive concave curved roof line and architectural rolled steelwork

    Capricorn in coastal setting with it's distinctive concave curved roof line and architectural rolled steelwork

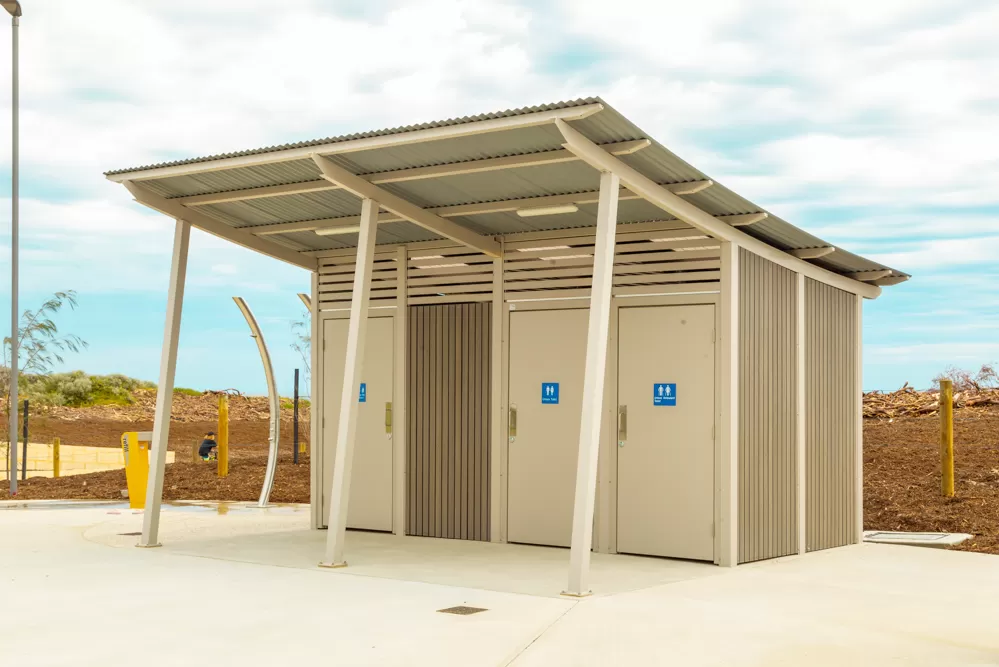

  • Capricorn 5 with Wood Look Alumium and Custom Orb external walls

    Capricorn 5 with Wood Look Alumium and Custom Orb external walls

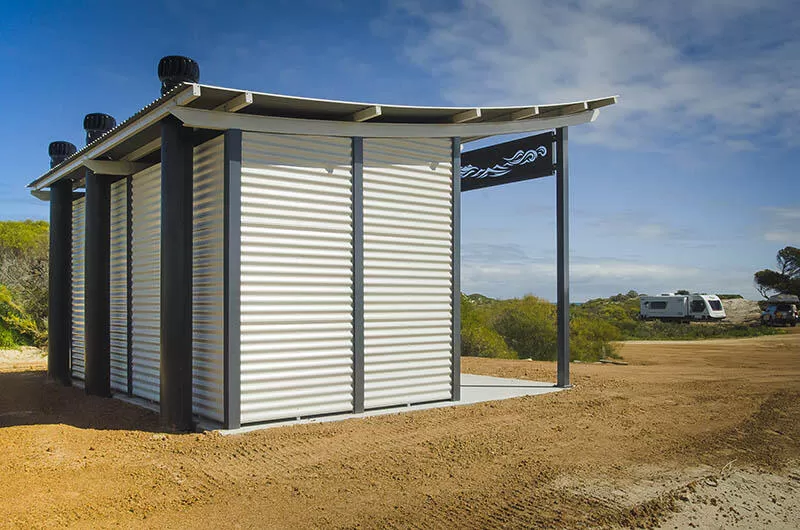

  • Capricorn 2 with Fascia Plank and Custom Orb

    Capricorn 2 with Fascia Plank and Custom Orb

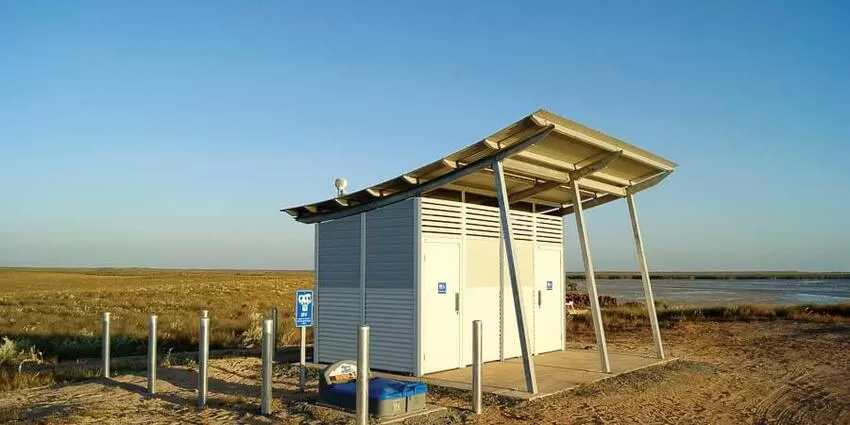

  • Capricorn 3 with integrated self-contained sewage system

    Capricorn 3 with integrated self-contained sewage system

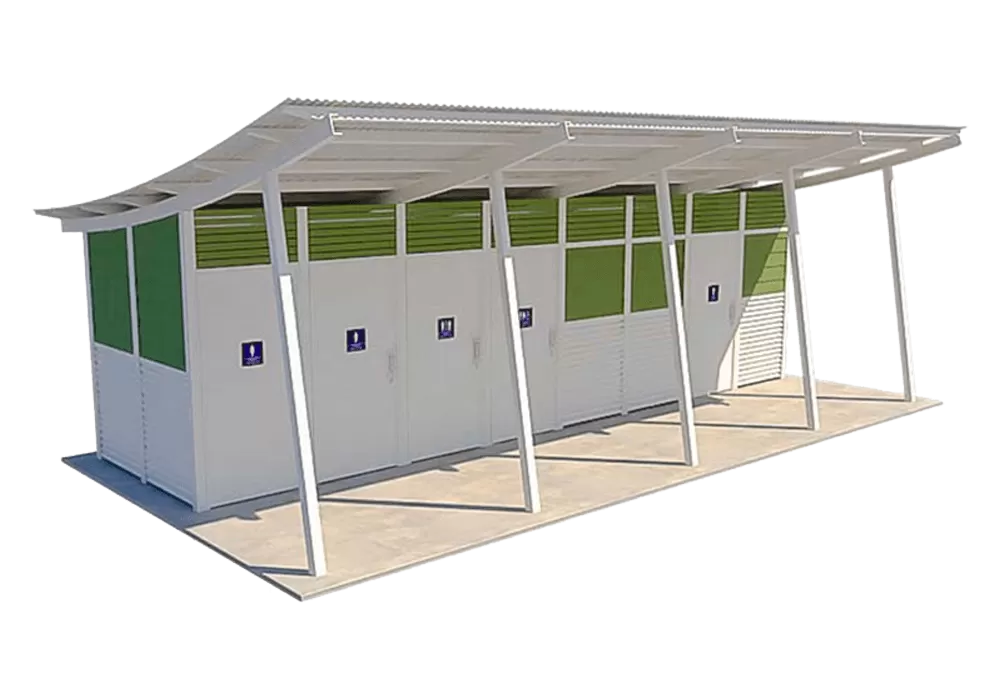

Capricorn 7

The Capricorn Toilet Building sets itself apart with a distinctive concave curved roof line and architectural rolled steelwork, designed to make a bold statement in any environment. The concave curved roof design provides an ideal catchment area for rainwater for water tanks to capture this valuable resource..

Applications

Specification

  • Wall Framing

    Fully welded robust steel SHS, hot dip galvanized after fabrication

  • Proprietary Prefab Wall Panel System

    Pre-clad panels, inside and out. Doors pre-hung in frames. Prefab for simple, fast and accurate bolt together onsite construction

  • External Wall Cladding

    • 1/2 Colorbond Custom Orb, 1/2 Alum Extruded Cladding (standard)Colorbond Custom Orb (standard)
    • Alum Extruded Cladding

  • Internal Wall Cladding

    Miniorb - vandal resistant and easy maintenance

  • Roof

    Colorbond Custom Orb - Curved

  • Door

    Solid core, Colorbond clad

  • Door Hardware

    Heavy duty marine grade stainless steel, indicator bolts, door closers, internal and external pull handles

  • Door Signage

    Tactile Braille blue/white

  • Fixings

    Class 3 roof fixings, stainless steel structural fixings

  • Structural Engineering

    Engineered for your site, including Region D cyclonic locations

  • Exposed Steel

    Hot dip galvanised and powder-coated

  • Standard Fixtures

    Toilet suites, S/S Basin, S/S Grab Rails, S/S Toilet Roll Holder

  • Optional Extras

    • Solar lighting
    • Auto-timed door locking
    • Verandah screens
    • Additional internal fixtures
    • Off-grid solutions
Standard 7 Make an Enquiry

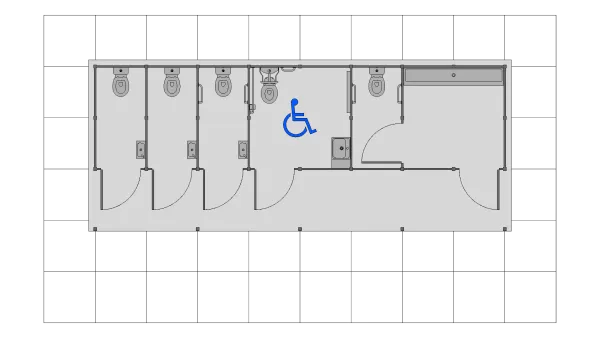

Standard 7

  • 2 Standard Toilet
  • 2 Ambulant Toilet
  • 1 Universal Access Toilet
  • 1 Multiple Urinal
  • 9600mm x 2400mm
Make an Enquiry

Resources

  • Risk Audit Checklist Download

    Risk Audit Checklist

  • Flood and Cyclone Resilient Guide Download

    Flood and Cyclone Resilient Guide

  • HVRA Funding Guide and Checklist Download

    HVRA Funding Guide and Checklist

  • Design Consultation Download

    Design Consultation

  • Public Toilet Planning Guide and Checklist Download

    Public Toilet Planning Guide and Checklist

  • Refurb vs Replace: Guide and Cost Study Download

    Refurb vs Replace: Guide and Cost Study

  • Inspiration Lookbook Download

    Inspiration Lookbook

  • Education Planning Guide and Checklist Download

    Education Planning Guide and Checklist

  • Automated Public Toilets Download

    Automated Public Toilets

  • Modus vs Concrete Toilets Download

    Modus vs Concrete Toilets

  • Flood-Resilient Public Toilet Checklist and Guide Download

    Flood-Resilient Public Toilet Checklist and Guide

  • Colours and Finishes Download

    Colours and Finishes

  • About Prefab Modular Download

    About Prefab Modular

Frequently Asked Questions

How many cubicles does the Capricorn 7 have?
The Capricorn 7 tops the range with one Universal Access Toilet, two ambulant toilets, two standard cubicles, and a multiple urinal integrated at the far ambulant end. Room types remain customisable.
What are the dimensions of the Capricorn 7?
The Capricorn 7 extends to 9600mm x 2400mm, the largest footprint and roof catchment in the standard Capricorn line.
What sites is the Capricorn 7 best suited for?
The Capricorn 7 is made for the busiest destination sites: major foreshores, regional tourist attractions, and event-scale parklands where its capacity and striking curved roof both earn their place.
How is the Capricorn 7 different from the Capricorn 5?
It moves past the Capricorn 5 with extra positions including a multiple urinal for peak crowds. Anything larger or more specialised becomes a Custom Capricorn.
Can the Capricorn 7 be customised?
Yes, across every element from the cubicle mix to cladding, tanks, and locking, with clean-sheet designs available through the Custom Capricorn.
Is the Capricorn 7 compliant with AS 1428.1 and the NCC?
Yes. Compliance with AS 1428.1 and the NCC is part of the base design. Read more about AS 1428.1 compliance.
What warranty does the Capricorn 7 carry?
Like the whole Modus catalogue: 20 years structural warranty, 50 years design life.

Related Products

Related Projects

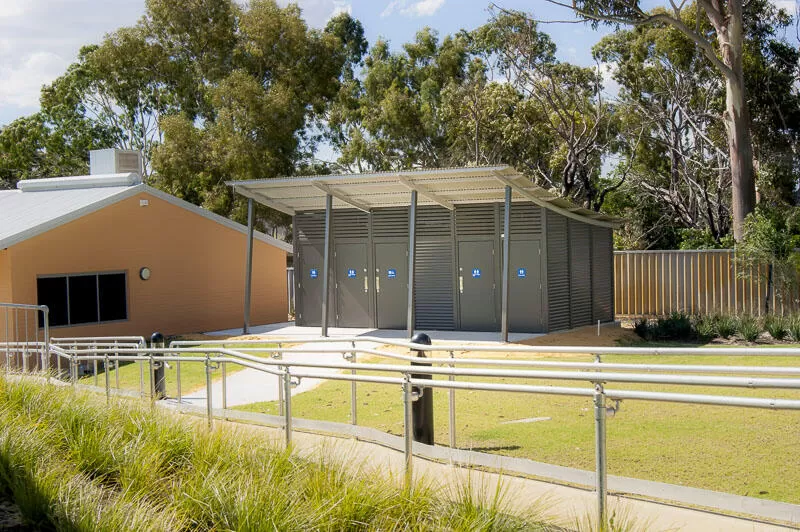

Bluegum Community Centre project in WA
