Yarra 7 Standard Toilet Building with Shale Grey and Woodland Grey colour scheme

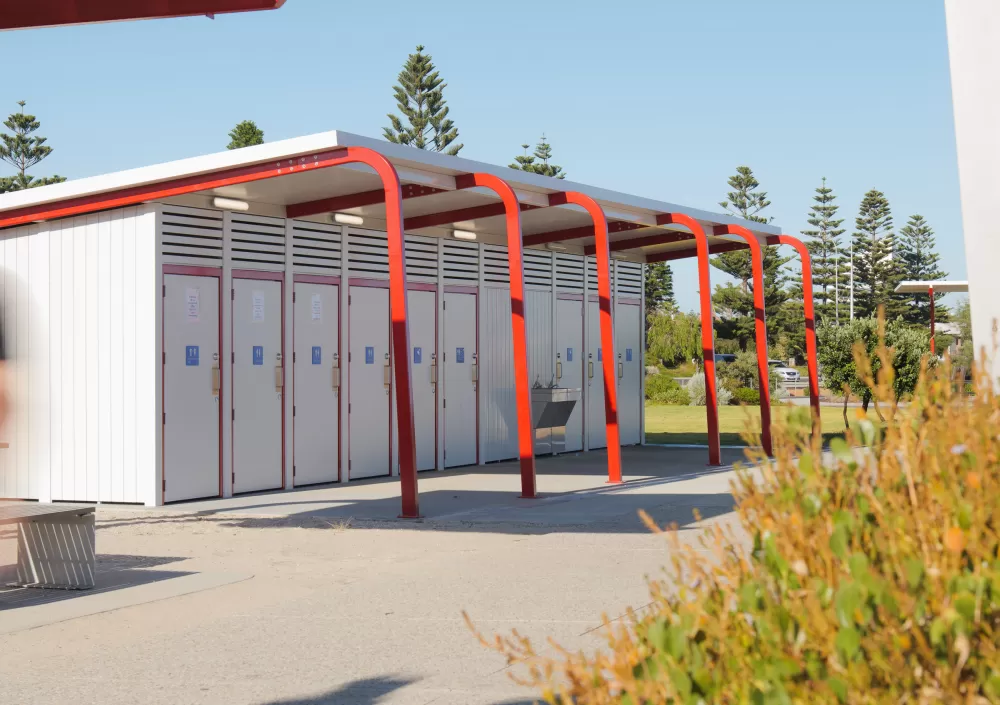

Custom Yarra 6 for Koombana Bay
Custom Yarra 6 for Koombana Bay
Yarra 7 with Custom Orb Exterior
Yarra 7 with Fascia Plank and Custom Orb
Yarra 7 with solar panel in Broome, WA
Custom Yarra 5 with American Oak Wood-Look aluminium
Custom Yarra with yellow floral verandah and vertical aluminium planks
Custom Yarra for campground with Wood-Look aluminium and showers
Yarra 5 with wood-look aluminium slats
Yarra 2 with Fascia Plank and Custom Orb
Yarra 3 integrated into structure
Yarra 5 with Modwood external walls, ventilation louvres and privacy screen verandah
Yarra 5 with Modwood ventilation louvres and privacy screen verandah
Yarra 1 with graphic panels

Custom Yarra

This configuration offers complete design flexibility to match your project vision. External cladding, internal layouts, fixtures, and fittings can all be tailored to your specifications. Click "Make an Enquiry" and tell us what you're thinking - we'll reach out with exactly what you need to know to make it happen.

Wall Framing

Fully welded robust steel SHS, hot dip galvanized after fabrication
Proprietary Prefab Wall Panel System

Pre-clad panels, inside and out. Doors pre-hung in frames. Prefab for simple, fast and accurate bolt together onsite construction
External Wall Cladding
- Colorbond Custom Orb (standard)
- Alum Extruded Cladding
- 1/2 Colorbond Custom Orb, 1/2 Alum Extruded Cladding
- Vinyl Graphics
Internal Wall Cladding

Miniorb - vandal resistant and easy maintenance
Roof

Colorbond Custom Orb
Door

Solid core, Colorbond clad
Door Hardware

Heavy duty marine grade stainless steel, indicator bolts, door closers, internal and external pull handles
Door Signage

Tactile Braille blue/white
Fixings

Class 3 roof fixings, stainless steel structural fixings
Structural Engineering

Engineered for your site, including Region D cyclonic locations
Exposed Steel

Hot dip galvanised and powder-coated
Standard Fixtures

Toilet suites, S/S Basin, S/S Grab Rails, S/S Toilet Roll Holder
Optional Extras
- Solar lighting
- Auto-timed door locking
- Verandah screens
- Additional internal fixtures
- Off-grid solutions

Make an Enquiry

Custom Floorplan

What can be customised:

Fixtures and fittings
Wall and floor finishes
Lighting options
Accessibility features
Floorplan layout and configuration

Make an Enquiry

Resources

Download

Risk Audit Checklist

Download the Risk Audit Checklist

The 14 oversights councils most regret missing - covering site engineering, permissions, and specification. Take ten minutes at scoping or pre-tender to stress-test your next project.

Loading form...
Download

Flood and Cyclone Resilient Guide

Download the Flood and Cyclone Resilient Guide

Our comprehensive guide covers cyclone and flood design solutions in detail, includes planning checklists for both, and features real-world case studies from some of the toughest environments.

Loading form...
Download

HVRA Funding Guide and Checklist

Download the HVRA Funding Guide and Checklist

The HVRA grant funds new and upgraded rest areas across Australia to improve road safety for heavy vehicle drivers. Applications close 30 April. The department rarely accepts late evidence, so download the guide now to confirm your eligibility and start building your submission.

Loading form...
Download

Design Consultation
Download

Public Toilet Planning Guide and Checklist
Download

Refurb vs Replace: Guide and Cost Study

Download the guide for a 30 year cost comparison

A complete guide to help councils decide whether to refurbish or replace their toilet building. Includes 30 year cost breakdown comparison and full project planning checklist.

Loading form...
Download

Inspiration Lookbook
Download

Education Planning Guide and Checklist

Education Planning Guide and Checklist

A practical planning guide for facility managers, business managers, and campus planners covering every stage of an education amenity building project - from budget and procurement through to design, compliance, and handover.

Loading form...
Download

Automated Public Toilets

Download the guide for a 20 year cost study breakdown

See how the costs really stack up. Our 20-year cost comparison breaks down the true price of automated toilets—versus traditional toilet buildings.

Loading form...
Download

Modus vs Concrete Toilets

Download the guide for a 20 year cost study breakdown

See how the costs really stack up. Our 20-year cost comparison breaks down the true price of concrete Masonry versus traditional toilet buildings.

Loading form...
Download

Flood-Resilient Public Toilet Checklist and Guide
Download

Colours and Finishes
Download

About Prefab Modular

Frequently Asked Questions

What is the Custom Yarra?

The Custom Yarra is where you bring us your own vision for a Yarra Toilet Building. Rather than choosing a standard floorplan and making minor tweaks, this option lets you put forward exactly what you have in mind, whether that's a small change or something completely out of the box. Browse our projects and Inspiration Lookbook, found in our resources or in the Resources section above, to see what's been done before, then tell us what you're thinking, and our designers and engineers will work through what's possible for your site.

When should I choose a Custom Yarra over a standard model?

If a standard Yarra covers your needs and you just want minor changes, like vinyl graphics or a different colour scheme, you can simply choose your model by cubicle count and note those requests in your enquiry. Choose the Custom Yarra when your idea goes beyond the standard floorplans altogether: showers, service rooms, a different cubicle mix, an unusual footprint, or an architectural treatment designed to match your precinct.

How many cubicles can a Custom Yarra have?

There's no fixed count. The cubicle mix (Universal Access, ambulant, standard, showers, or service rooms) is designed around your site's demand, compliance requirements, and available footprint.

Does customising affect compliance?

No, and this is exactly where our expertise comes in. Write down whatever you're thinking and don't hold back: our designers and engineers will take your idea and tailor it to ensure it fully adheres to AS 1428.1 and NCC requirements, and every Custom Yarra is structurally engineered for its site, including Region D cyclonic locations. Read more about AS 1428.1 compliance.

Does the warranty change on a Custom Yarra?

No. Custom Yarra buildings carry the same 20-year structural warranty and 50-year design life as the standard range.

How do I start a Custom Yarra project?

There are a few easy ways to get started. You can hit Make an Enquiry on this page and describe what you're thinking in the message section, attaching any documents, sketches, or reference images you have. If the layout matters most, head to our floorplan options and choose Design Your Own Floor Plan, where you can select your cubicle count and build from the floorplan up. Or if you'd rather talk it through first, book a design consultation and a Modus design consultant will work through your site, capacity needs, and compliance requirements with you.
