Berowra Waters Marina
Berowra Waters Marina is a high-traffic public open space that needed a modern amenity building to replace an ageing, non-compliant brick block.
The Council required a durable, low-maintenance solution that met AS 1428.1 accessibility requirements, matched the site aesthetic, and could handle heavy daily use.

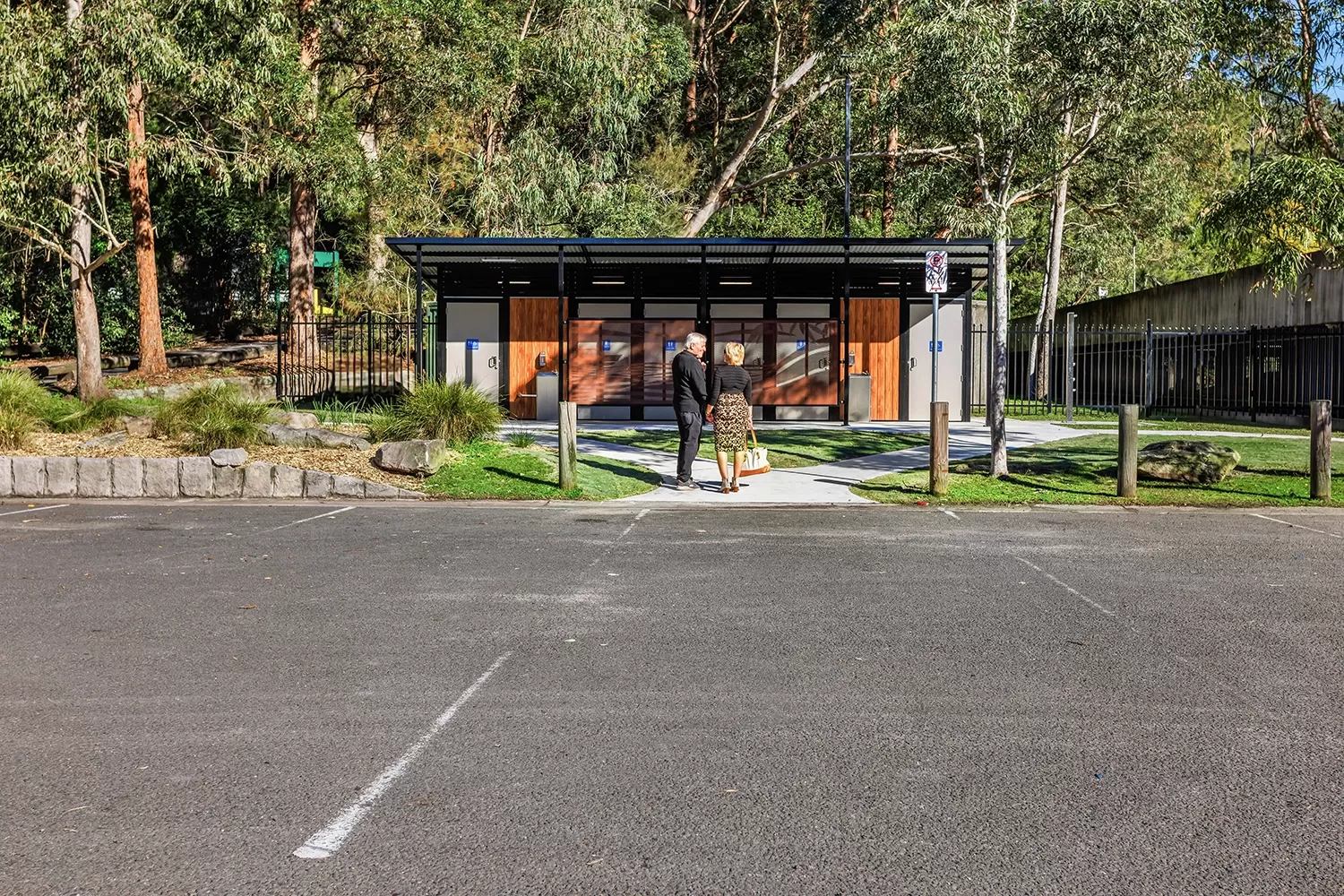

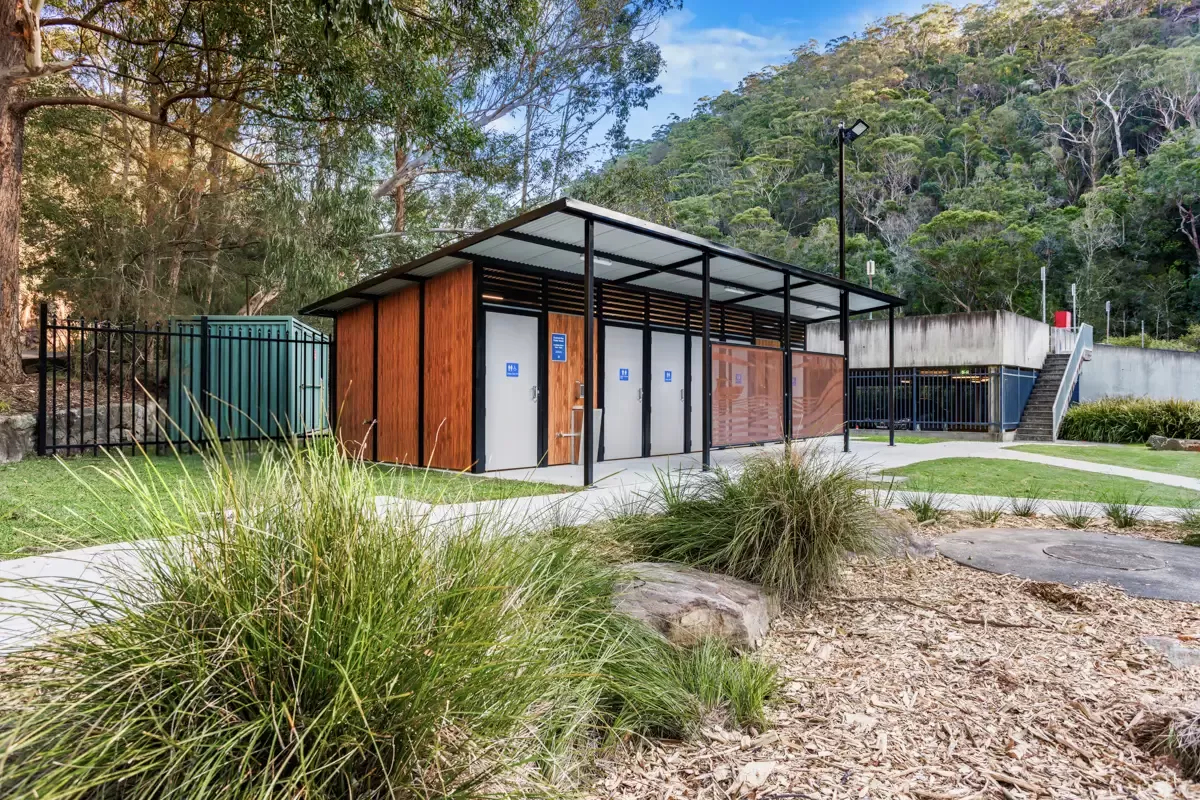

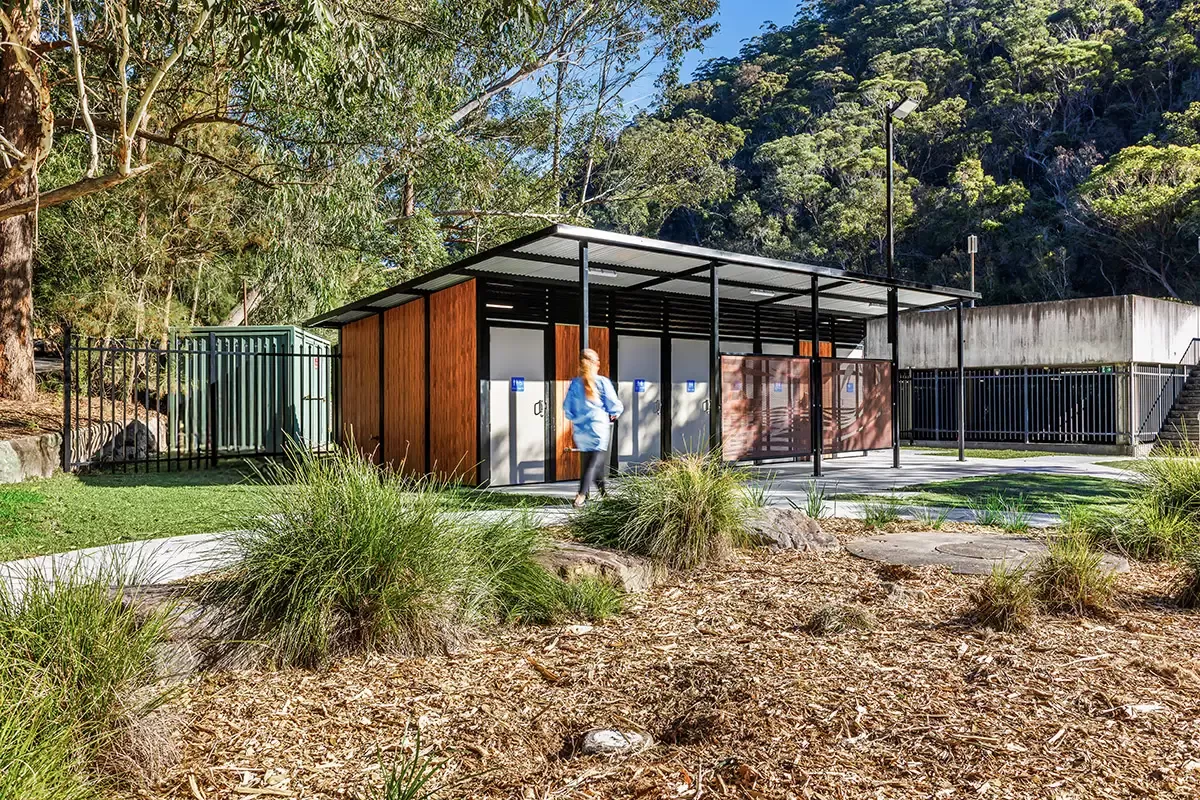

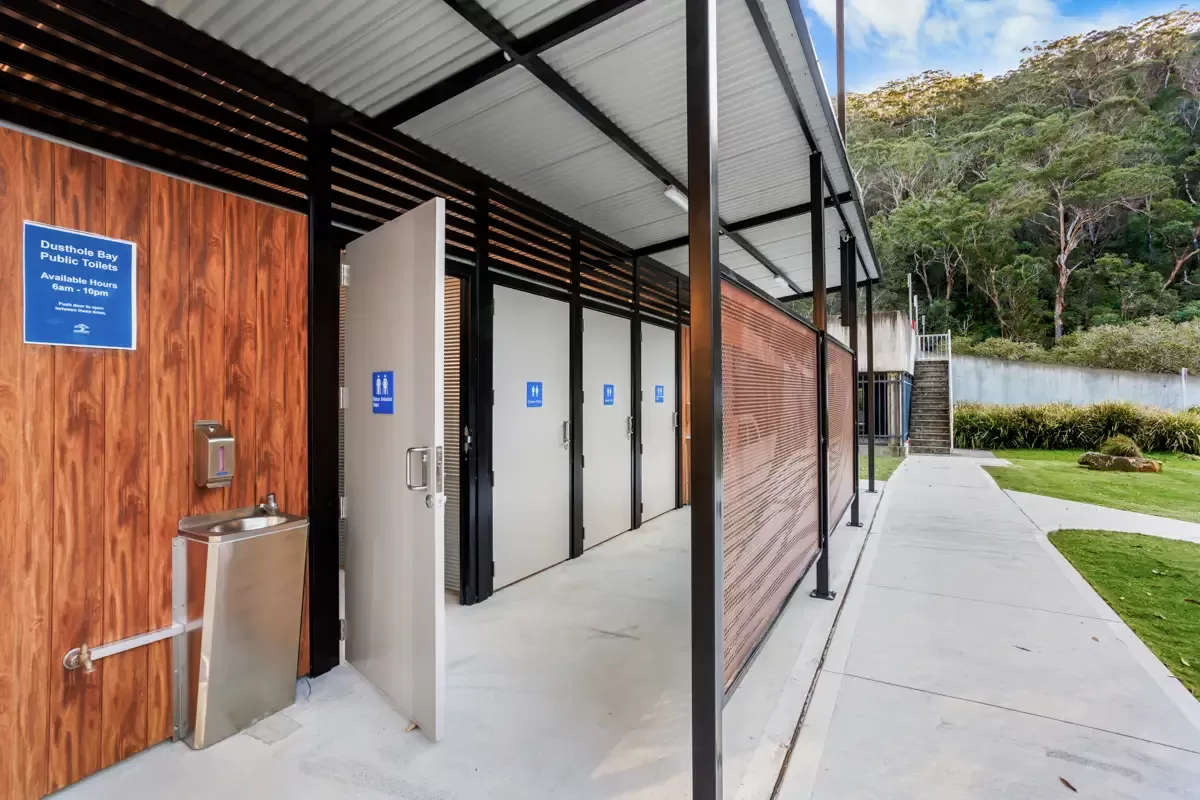

After Design Consultation meetings with the council Modus designed and delivered a custom Yarra 6 with two Universal Access and two ambulant cubicles, finished in wood-look aluminium cladding and a custom perforated screen drawn from the marina setting.
Challenges and Project Needs
- High vandalism risk and frequent use in a waterfront setting

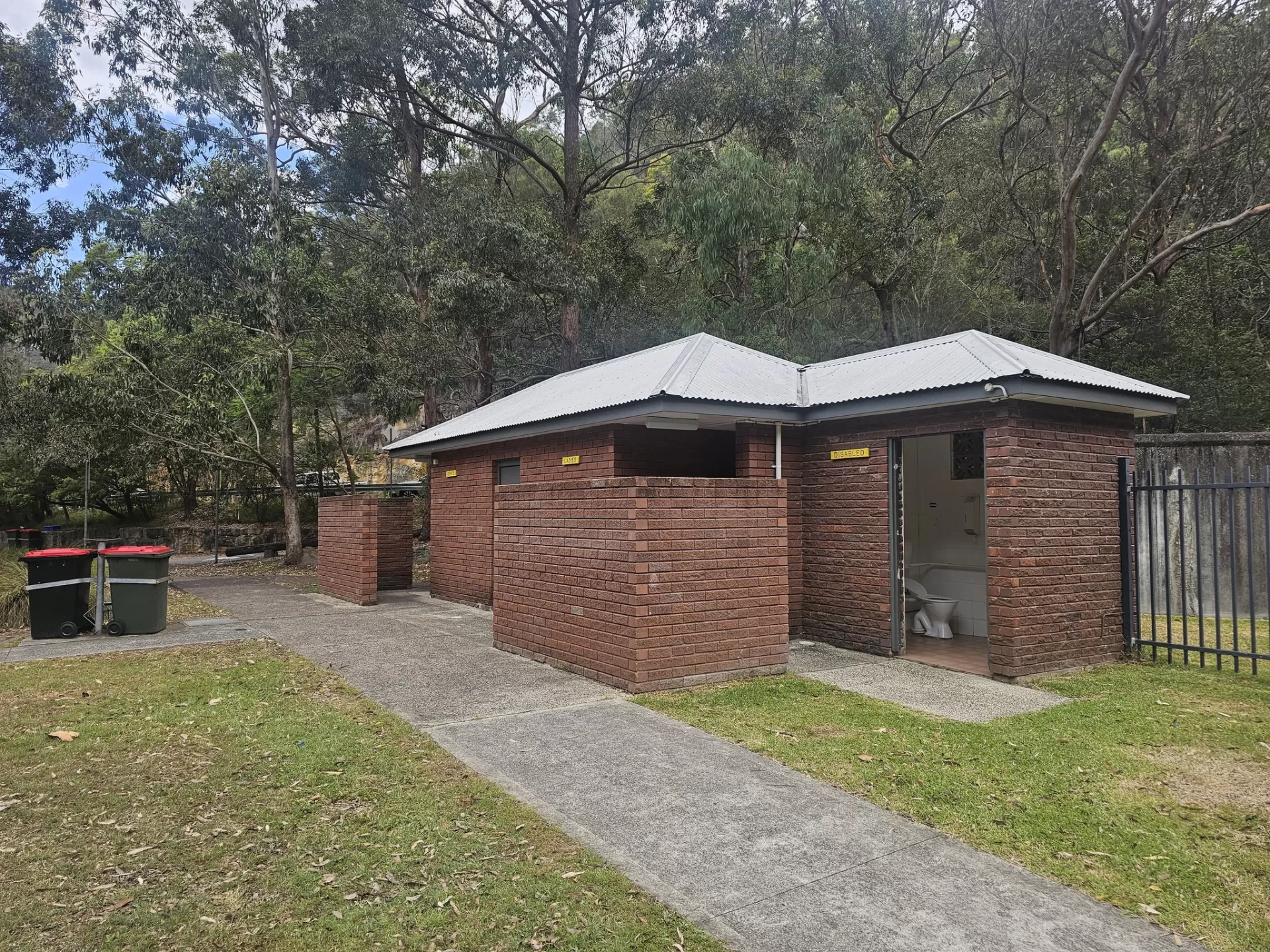

- Old brick facility delivered a poor user experience and did not meet current standards
- Need for a robust, low-maintenance public toilet design that blended with existing infrastructure
- Full compliance with AS 1428.1 accessibility requirements
Our Solution

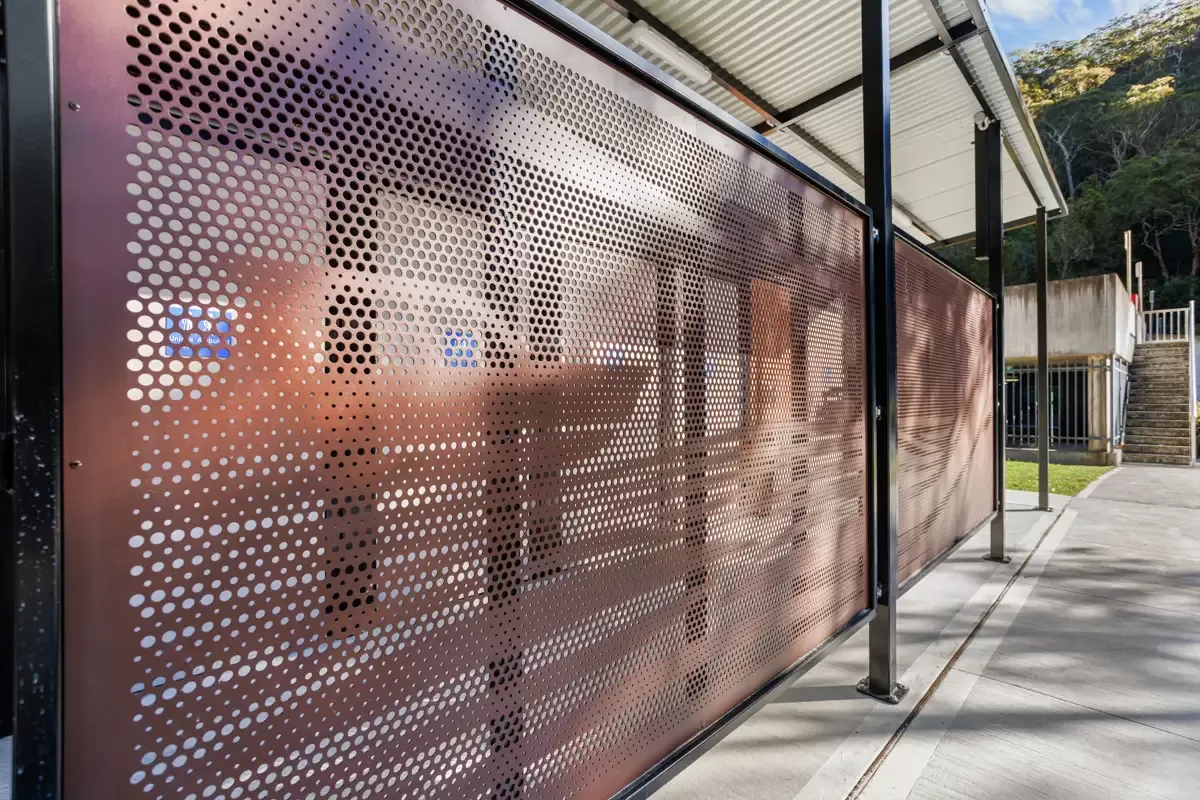

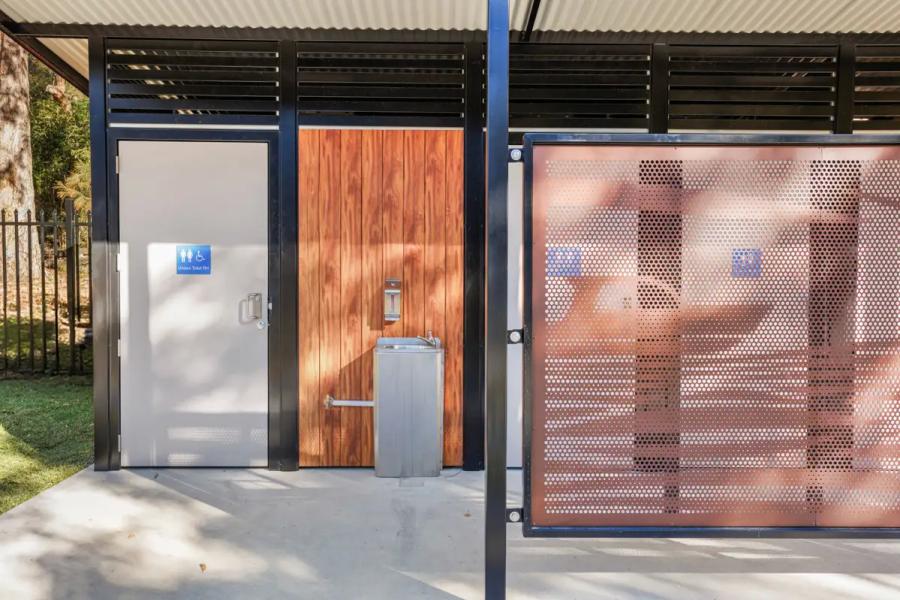

- Custom privacy screen in Pic-Perf with a subtle yachts motif, nodding to local boating culture.
- Colour and finishes selected to align with surrounding structures, constructed in Corten powder coat for a warm, coastal look that remains cost-effective and corrosion-resistant.
Materials and build quality

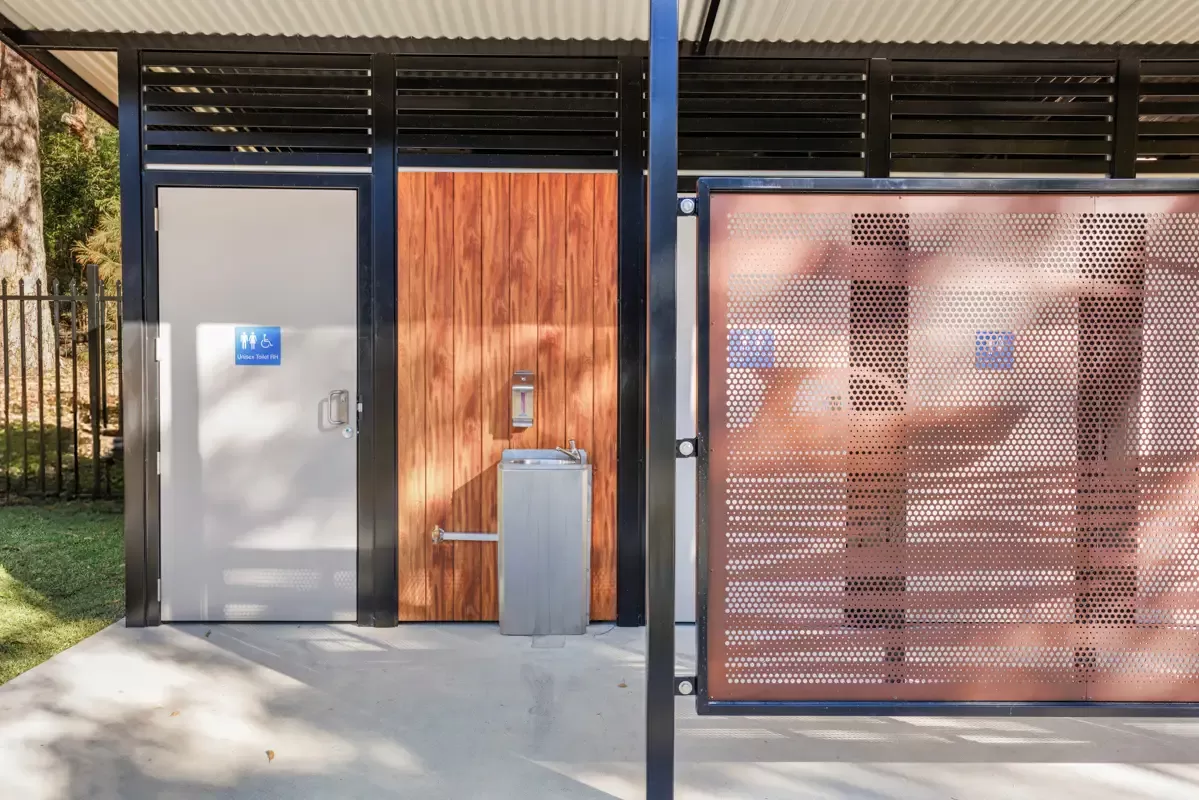

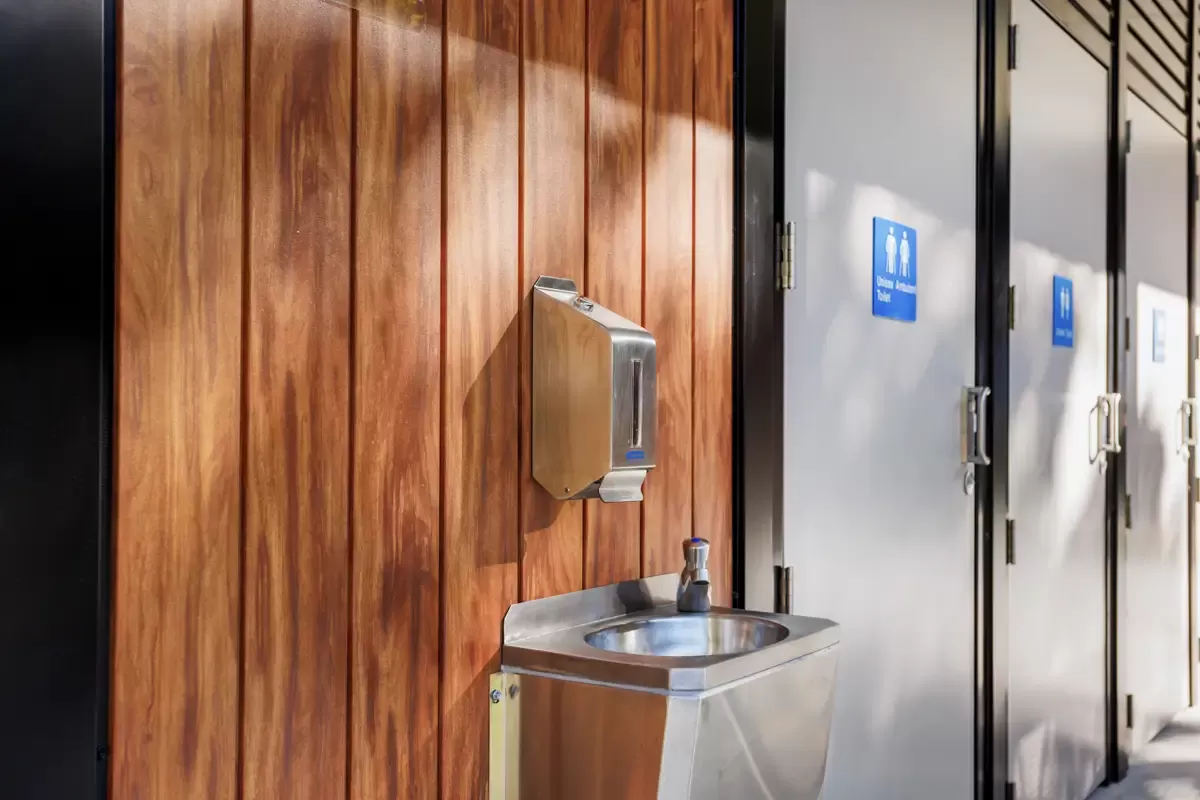

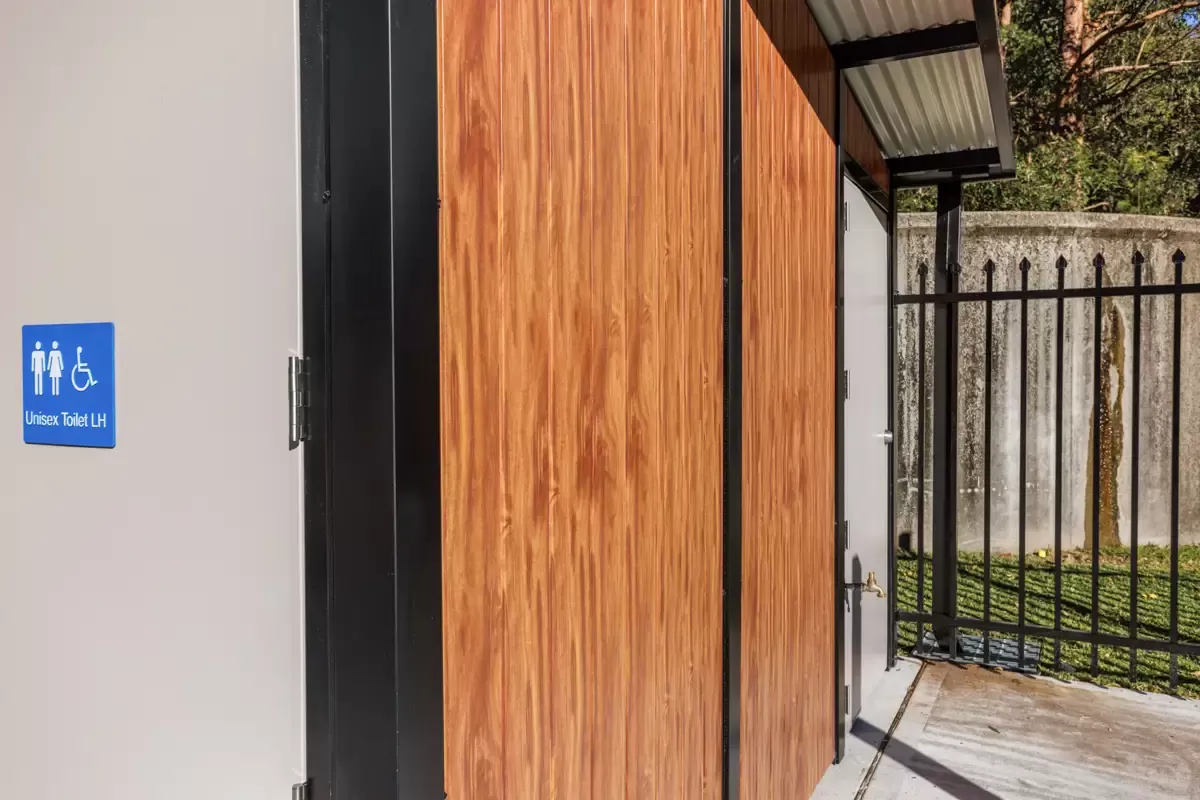

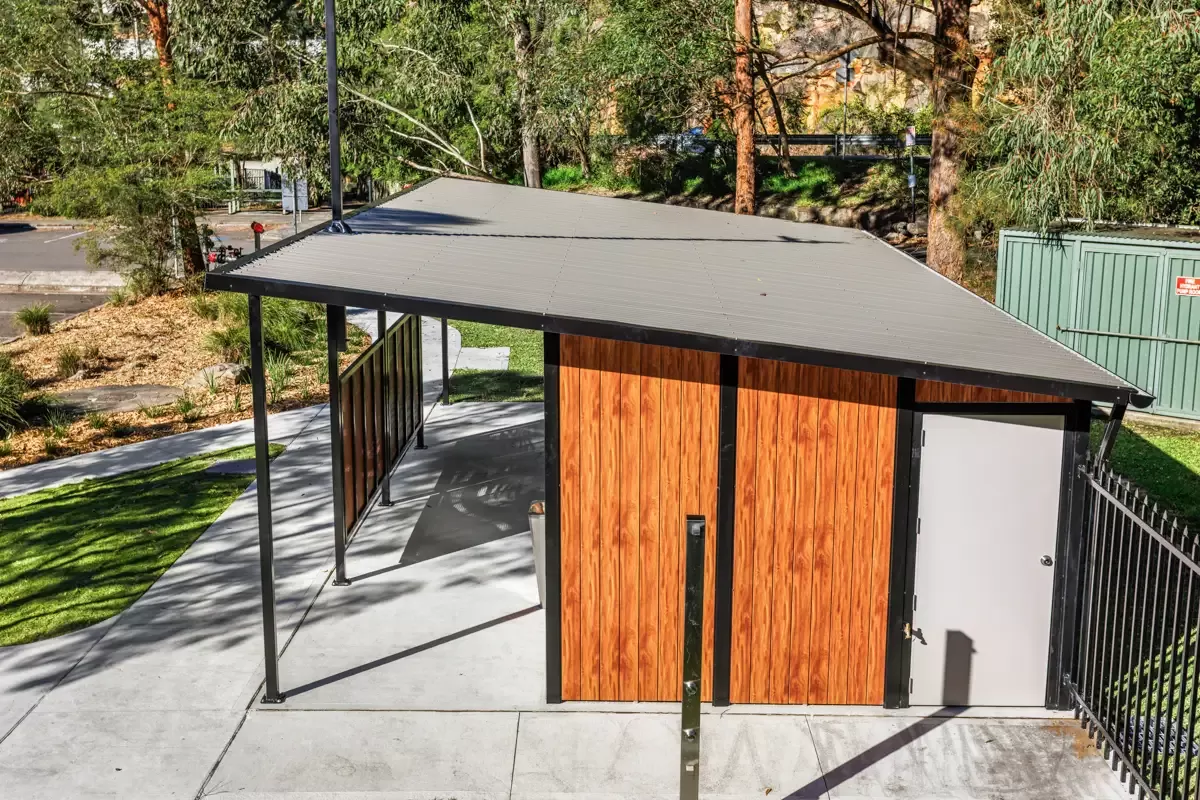

- Wood-look aluminium cladding and aluminium fascia planking provide the signature look while minimising maintenance.

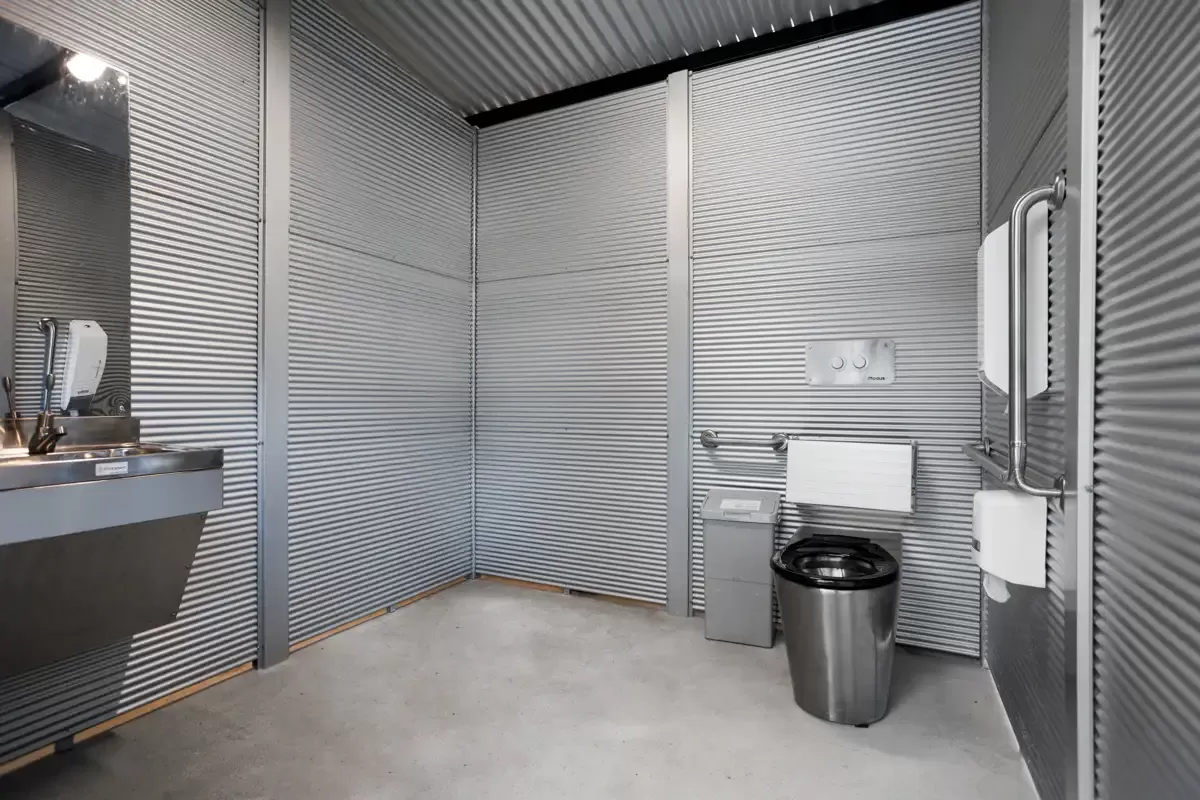

- Mini-orb internal walling for impact resistance due to ribbed surface and easy cleaning.
- Stainless steel pans for durability and vandal resistance.

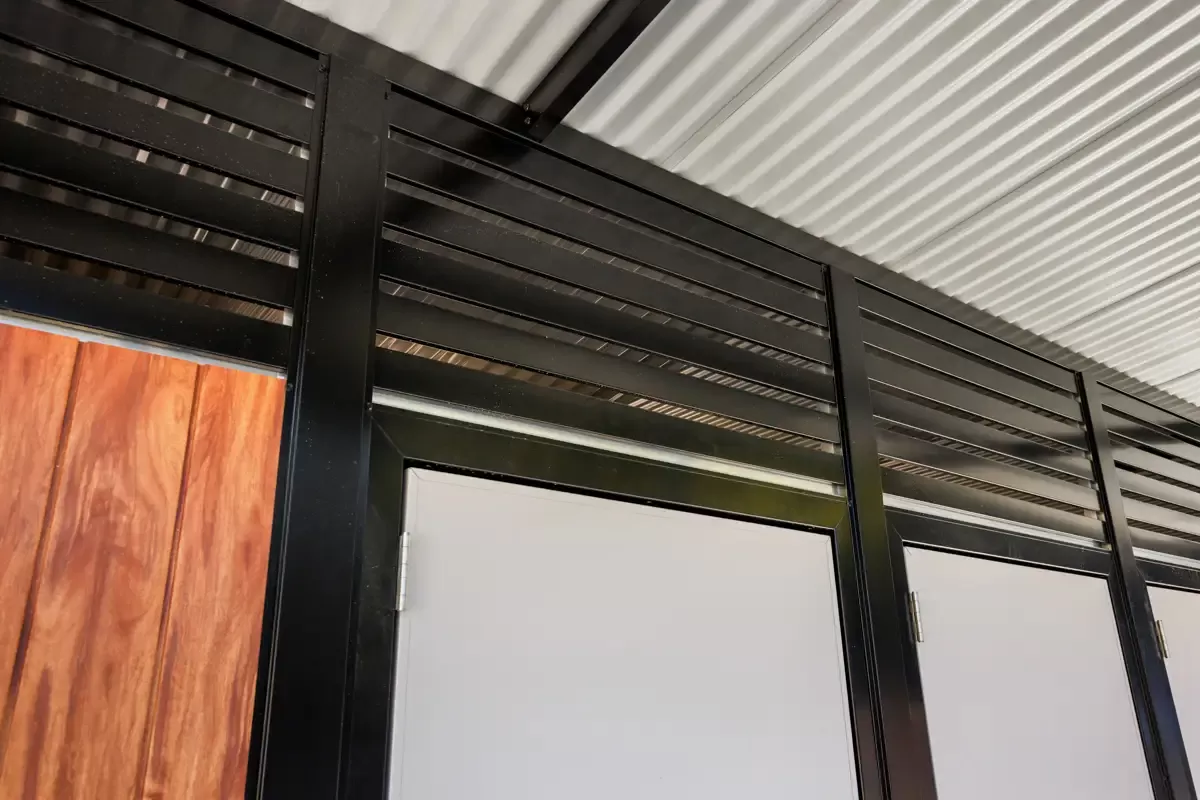

- Ventilation gaps under walls, plus front louvres, to improve airflow and user comfort.
Accessibility and compliance
- 2 Universal Access (UA) toilets with compliant grab rails, fixture heights, door clear openings, circulation space and signage.
- 2 Ambulant-accessible toilets designed for people who walk and use mobility aids or handrails for support (e.g., crutches).
- All layouts, hardware and fixtures checked against AS 1428.1:2021 for transfers, reach ranges, hardware locations and turning circles.
An Outstanding Result

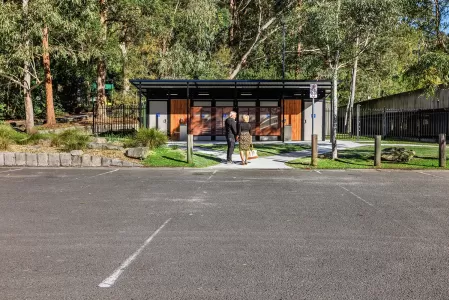

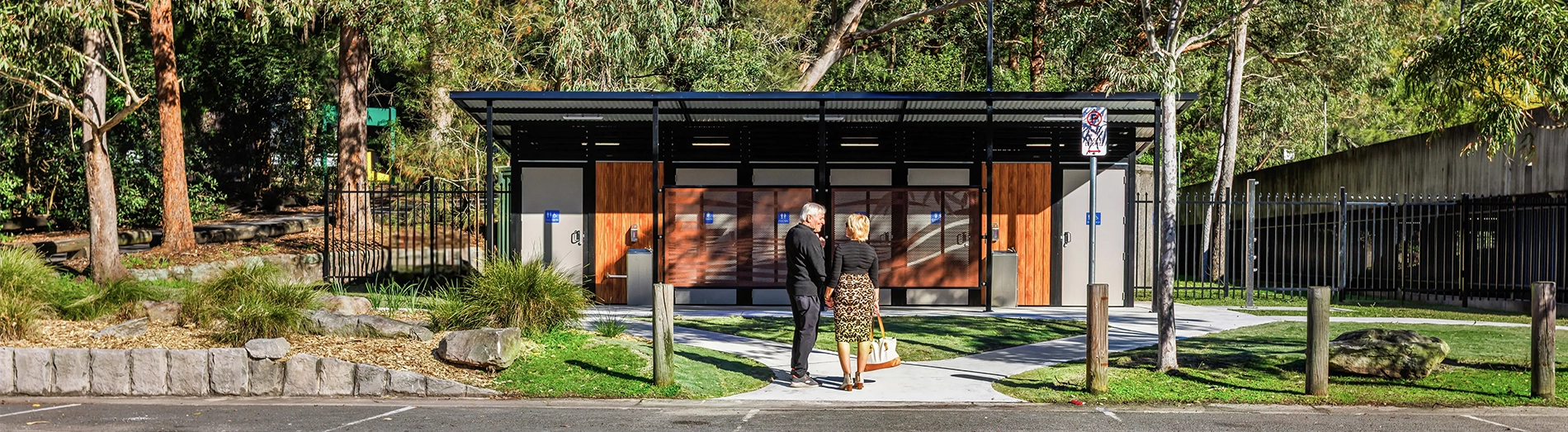

The new amenity building delivers a safer, cleaner, and more welcoming experience for visitors. The prefabricated toilet construction and material palette reduce whole-of-life costs, while the marina-inspired Pic-Perf screen and cohesive colours tie the building into its natural setting. Hornsby Shire Council now has a compliant, durable facility from a full-service public toilet manufacturer that will serve the community for years to come.
