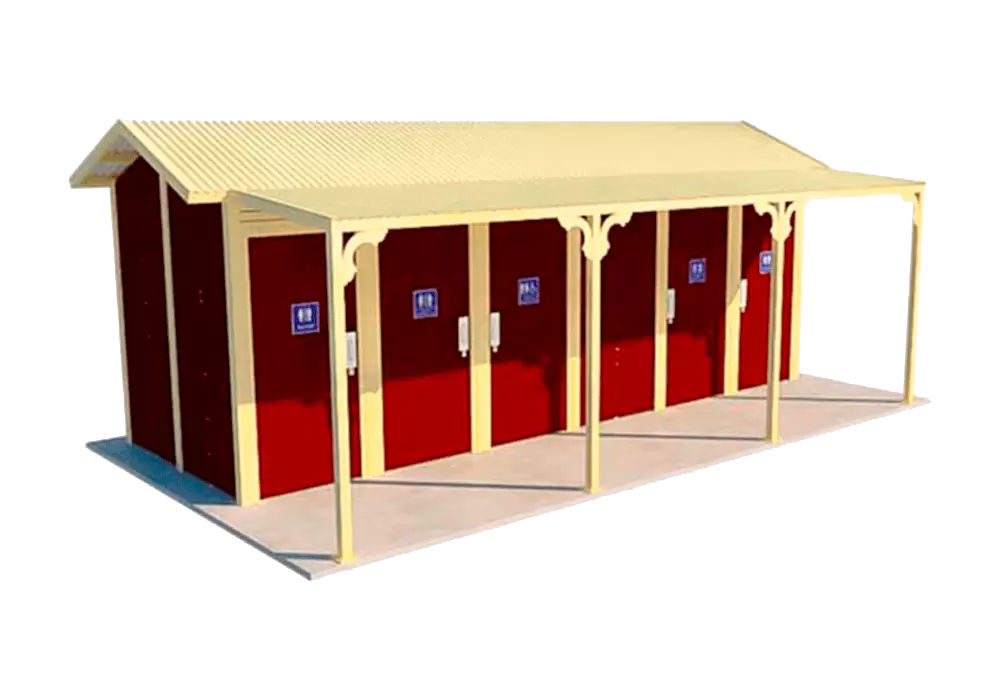

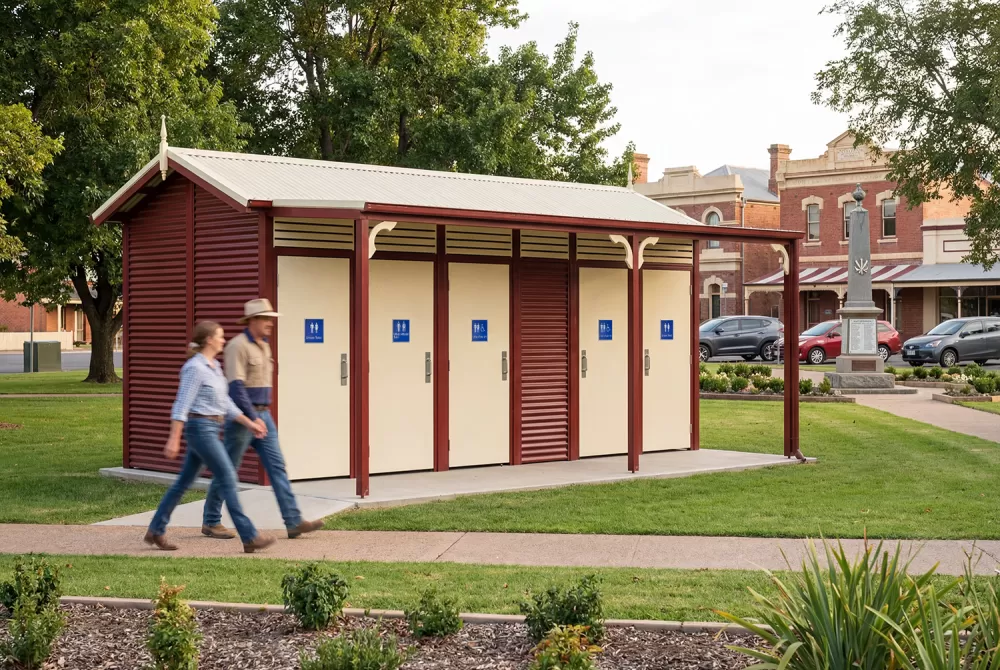

Burton 5 with Manor Red and Classic Cream colour scheme
Burton 5 with Manor Red and Classic Cream colour scheme

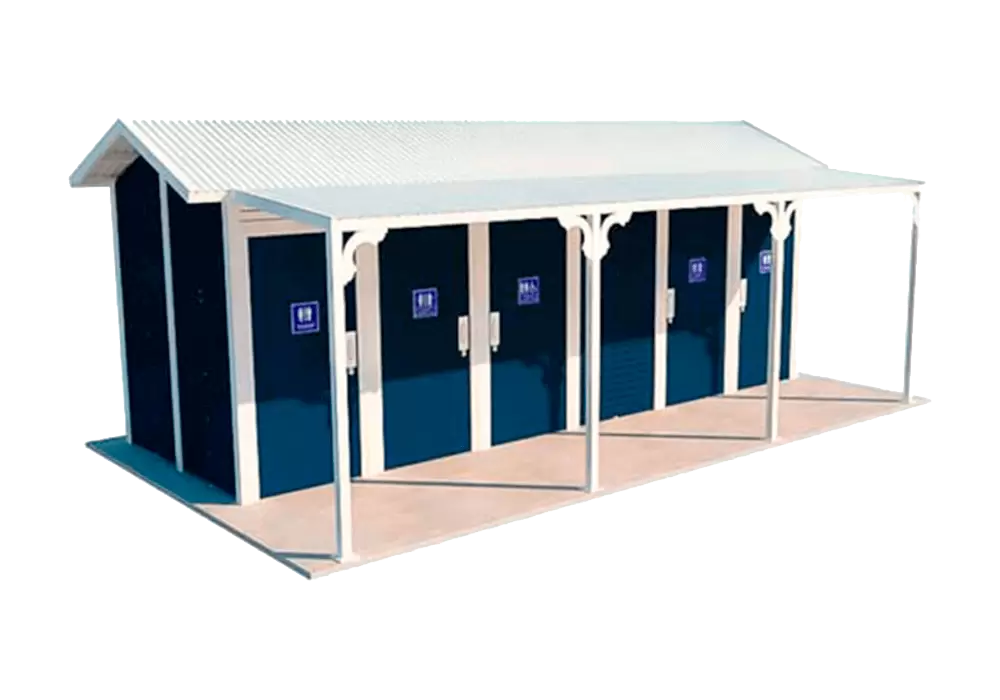

Burton 5 Standard Toilet Building with Deep Ocean and Surfmist colour scheme

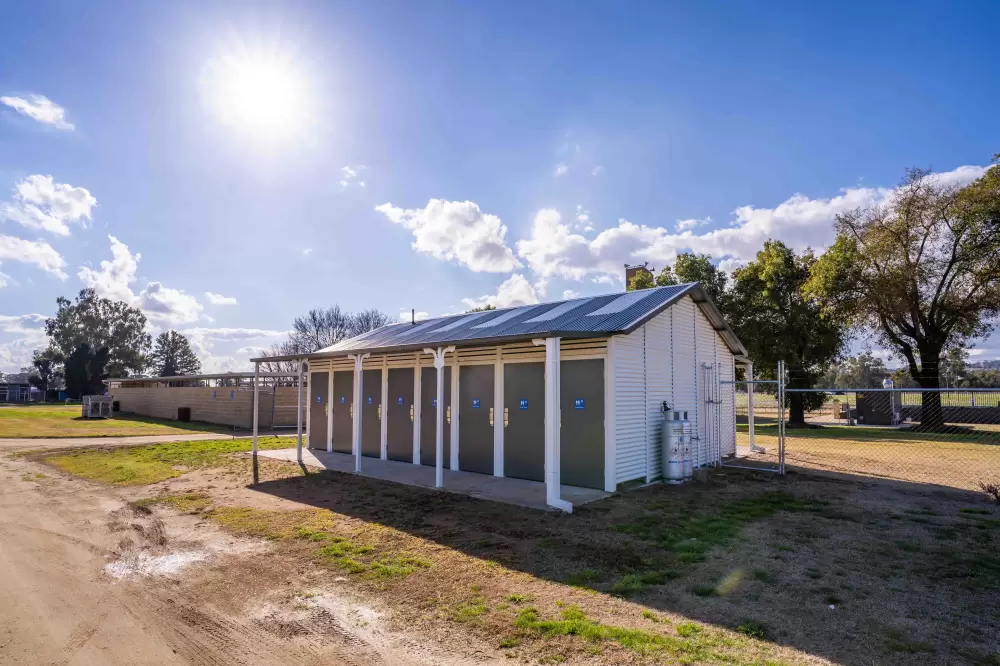

Burton 8 at showgrounds

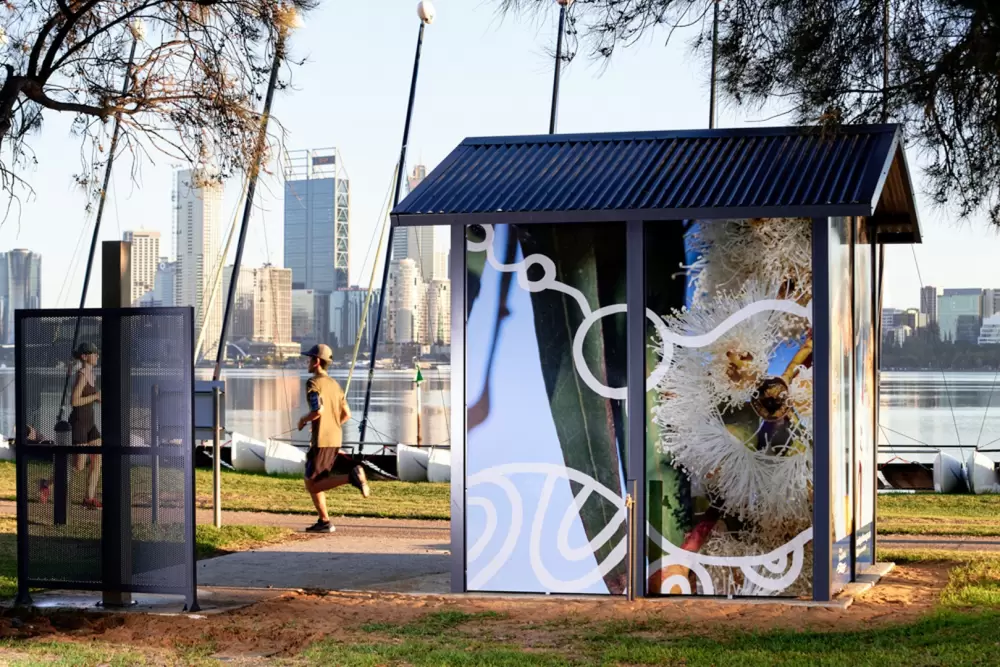

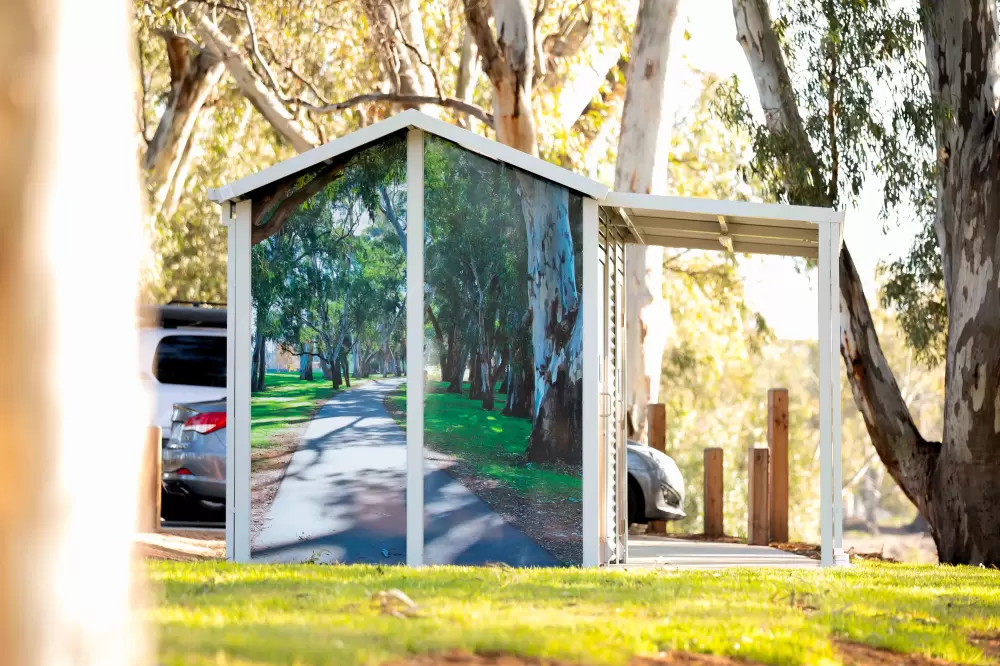

Burton 2 with graphic panels matching environment

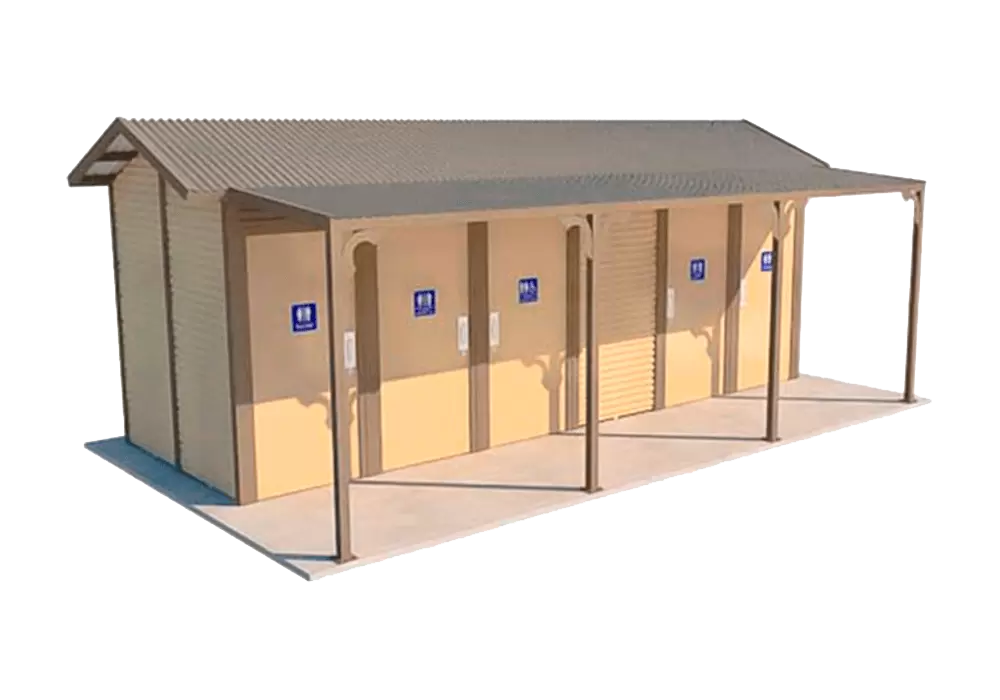

Burton 5 Standard Toilet Building with Paperbark and Gully colour scheme

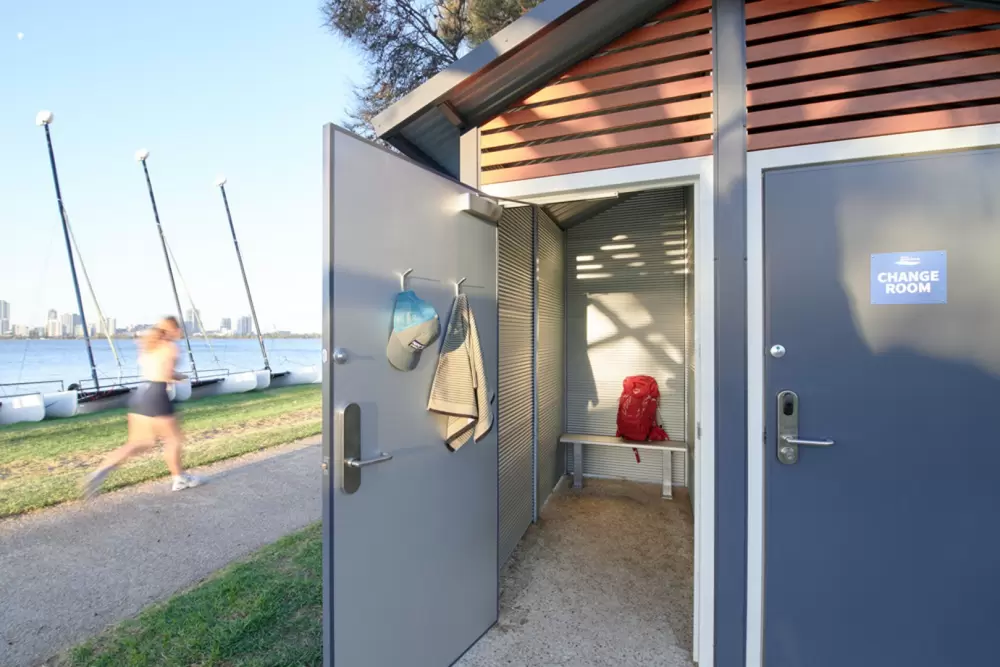

Burton 2 changing room facility with vandal-resistant mini orb internals

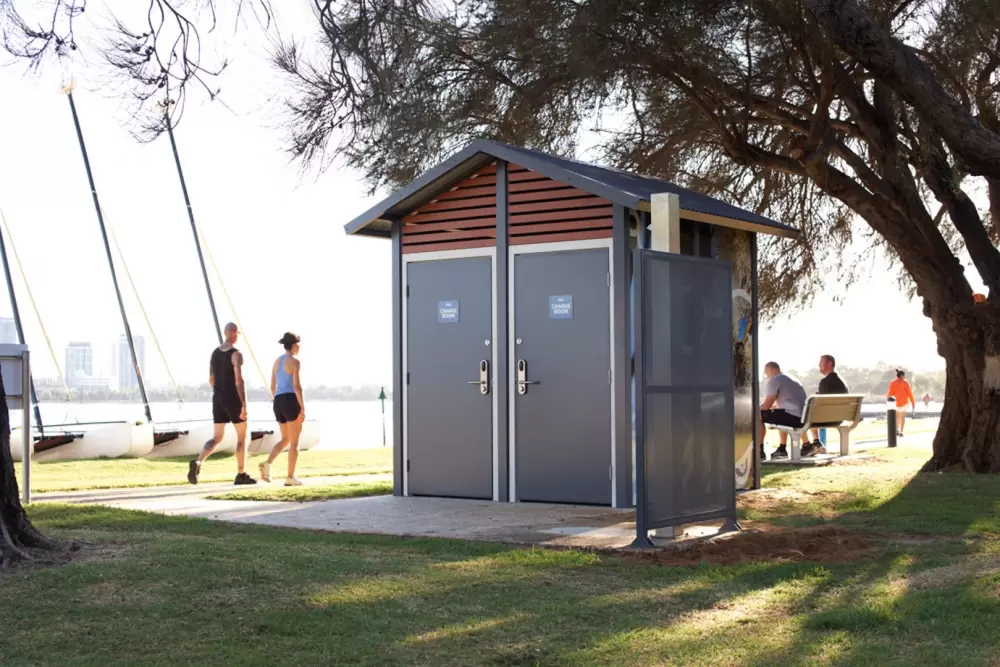

Burton 2 changing room facility with modwood ventilation slats

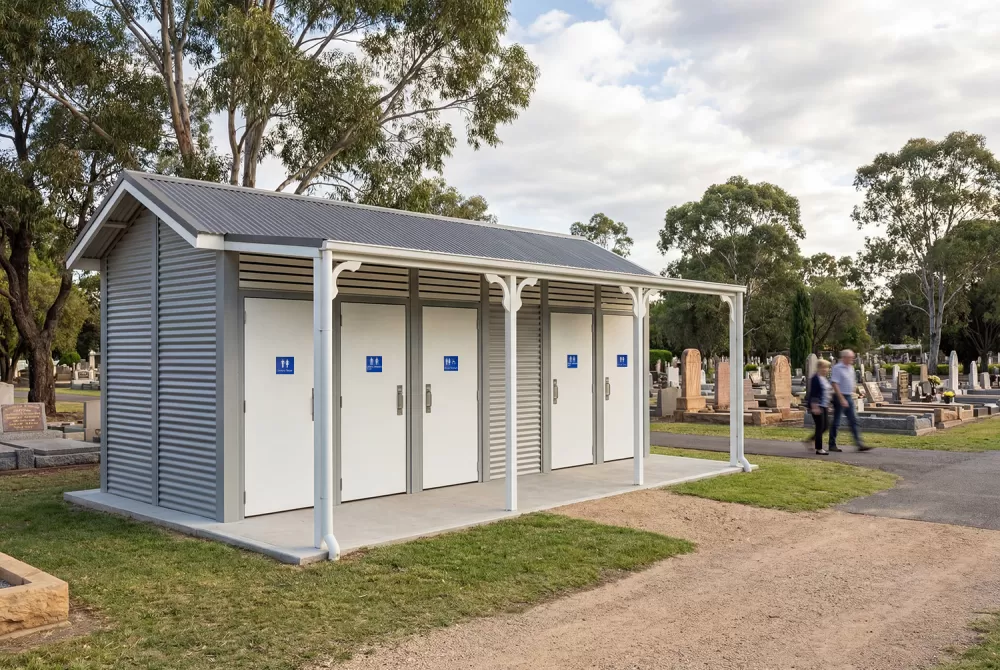

Burton 5

The Burton Toilet Building delivers classic form with a gable roof and trimming, designed to fit well in traditional surroundings. This building can be offered with or without the decorative veranda brackets.

Wall Framing

Fully welded robust steel SHS, hot dip galvanized after fabrication
Proprietary Prefab Wall Panel System

Pre-clad panels, inside and out. Doors pre-hung in frames. Prefab for simple, fast and accurate bolt together onsite construction
External Wall Cladding
- 1/2 Colorbond Custom Orb, 1/2 Alum Extruded Cladding (standard)
- Colorbond Custom Orb
- Alum Extruded Cladding
Internal Wall Cladding

Miniorb - vandal resistant and easy maintenance
Roof

Colorbond Custom Orb
Door

Solid core, Colorbond clad
Door Hardware

Heavy duty marine grade stainless steel, indicator bolts, door closers, internal and external pull handles
Door Signage

Tactile Braille blue/white
Fixings

Class 3 roof fixings, stainless steel structural fixings
Structural Engineering

Engineered for your site, including Region D cyclonic locations
Exposed Steel

Hot dip galvanised and powder-coated
Standard Fixtures

Toilet suites, S/S Basin, S/S Grab Rails, S/S Toilet Roll Holder
Optional Extras
- Solar lighting
- Auto-timed door locking
- Verandah screens
- Additional internal fixtures
- Off-grid solutions

Make an Enquiry

Standard 5

2 Standard Toilet
2 Ambulant Toilet
1 Universal Access Toilet
7200mm x 2400mm

Make an Enquiry

Resources

Download

Risk Audit Checklist

Download the Risk Audit Checklist

The 14 oversights councils most regret missing - covering site engineering, permissions, and specification. Take ten minutes at scoping or pre-tender to stress-test your next project.

Loading form...
Download

Flood and Cyclone Resilient Guide

Download the Flood and Cyclone Resilient Guide

Our comprehensive guide covers cyclone and flood design solutions in detail, includes planning checklists for both, and features real-world case studies from some of the toughest environments.

Loading form...
Download

HVRA Funding Guide and Checklist

Download the HVRA Funding Guide and Checklist

The HVRA grant funds new and upgraded rest areas across Australia to improve road safety for heavy vehicle drivers. Applications close 30 April. The department rarely accepts late evidence, so download the guide now to confirm your eligibility and start building your submission.

Loading form...
Download

Design Consultation
Download

Public Toilet Planning Guide and Checklist
Download

Refurb vs Replace: Guide and Cost Study

Download the guide for a 30 year cost comparison

A complete guide to help councils decide whether to refurbish or replace their toilet building. Includes 30 year cost breakdown comparison and full project planning checklist.

Loading form...
Download

Inspiration Lookbook
Download

Education Planning Guide and Checklist

Education Planning Guide and Checklist

A practical planning guide for facility managers, business managers, and campus planners covering every stage of an education amenity building project - from budget and procurement through to design, compliance, and handover.

Loading form...
Download

Automated Public Toilets

Download the guide for a 20 year cost study breakdown

See how the costs really stack up. Our 20-year cost comparison breaks down the true price of automated toilets—versus traditional toilet buildings.

Loading form...
Download

Modus vs Concrete Toilets

Download the guide for a 20 year cost study breakdown

See how the costs really stack up. Our 20-year cost comparison breaks down the true price of concrete Masonry versus traditional toilet buildings.

Loading form...
Download

Flood-Resilient Public Toilet Checklist and Guide
Download

Colours and Finishes
Download

About Prefab Modular

Frequently Asked Questions

How many cubicles does the Burton 5 have?

The Burton 5 has five cubicles: one Universal Access Toilet, two ambulant toilets, and two standard cubicles, all externally accessed. The room mix can be varied to match the site.

What are the dimensions of the Burton 5?

The Burton 5 runs 7200mm x 2400mm, three structural bays under the gable roof line.

What sites is the Burton 5 best suited for?

The Burton 5 serves high-use traditional venues, including large caravan parks, busy showgrounds, and major reserves, where five cubicles keep event-day and holiday-season queues manageable.

How is the Burton 5 different from the Burton 3 and Burton 7?

Two standard cubicles separate the Burton 5 from the Burton 3. At the top of the range, the Burton 7 adds further positions including a multiple urinal.

Can the Burton 5 be customised?

Yes, across cladding, colours, brackets, verandah screens, and cubicle mix, with ground-up redesigns handled as a Custom Burton.

Is the Burton 5 compliant with AS 1428.1 and the NCC?

It is. Accessible and ambulant cubicles meet AS 1428.1 and NCC requirements as a matter of standard design. More at AS 1428.1 compliance.

What warranty applies to the Burton 5?

As with every Modus building, the Burton 5 comes with a 20-year structural warranty and 50-year design life.
