Step 2: Review Product Page

  • Capricorn 1 Standard Toilet Building with Ironstone and Shale Grey colour scheme

    Capricorn 1 Standard Toilet Building with Ironstone and Shale Grey colour scheme

  • Capricorn 2 with Fascia Plank and Custom Orb

    Capricorn 2 with Fascia Plank and Custom Orb

  • Capricorn 1 Standard Toilet Building with Paperbark and Jasper colour scheme

    Capricorn 1 Standard Toilet Building with Paperbark and Jasper colour scheme

  • Capricorn 5 with Wood Look Alumium and Custom Orb external walls

    Capricorn 5 with Wood Look Alumium and Custom Orb external walls

  • Capricorn 1 Standard Toilet Building with Pale Eucalypt and Surfmist colour scheme

    Capricorn 1 Standard Toilet Building with Pale Eucalypt and Surfmist colour scheme

  • Capricorn 3 with Modwood external walls

    Capricorn 3 with Modwood external walls

  • Capricorn in coastal setting with it's distinctive concave curved roof line and architectural rolled steelwork

    Capricorn in coastal setting with it's distinctive concave curved roof line and architectural rolled steelwork

  • Capricorn 3 with integrated self-contained sewage system

    Capricorn 3 with integrated self-contained sewage system

  • Capricorn 5 in Woodland Grey and Shale Grey colour scheme

    Capricorn 5 in Woodland Grey and Shale Grey colour scheme

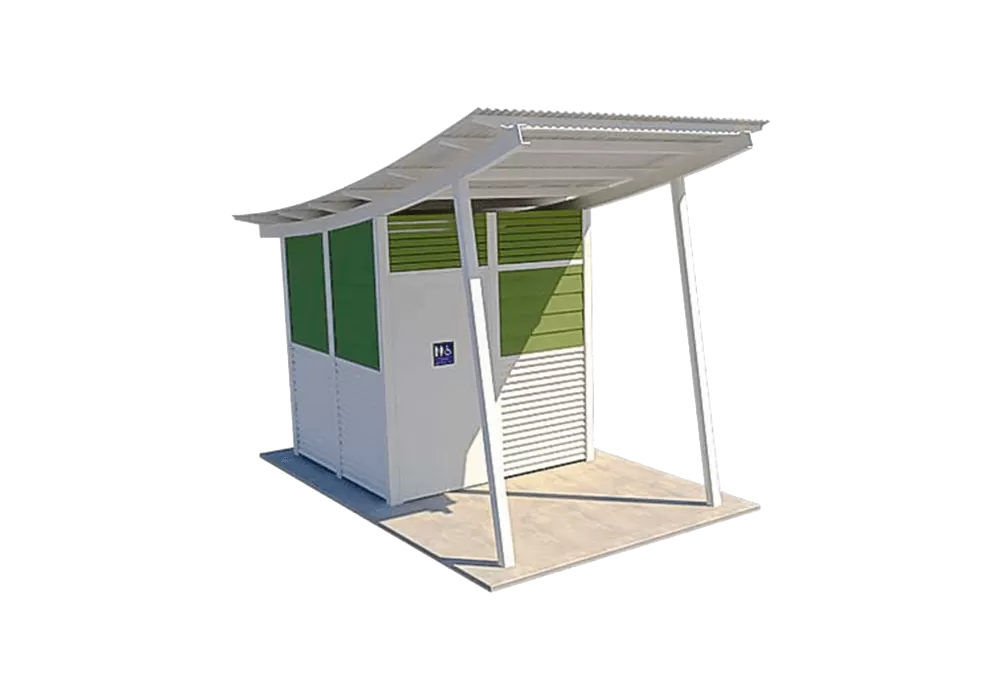

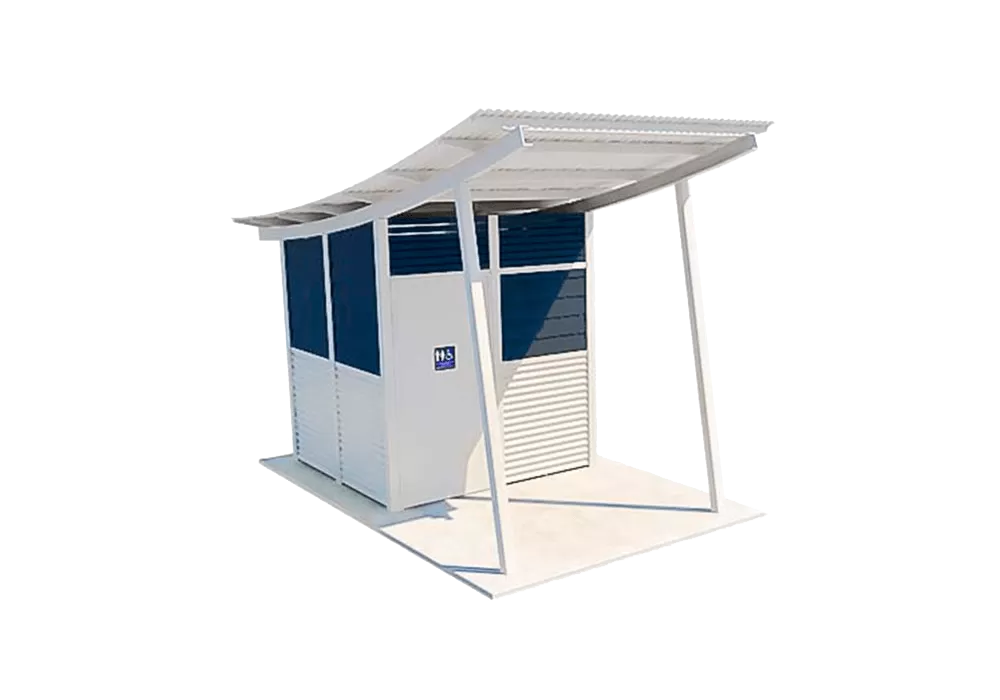

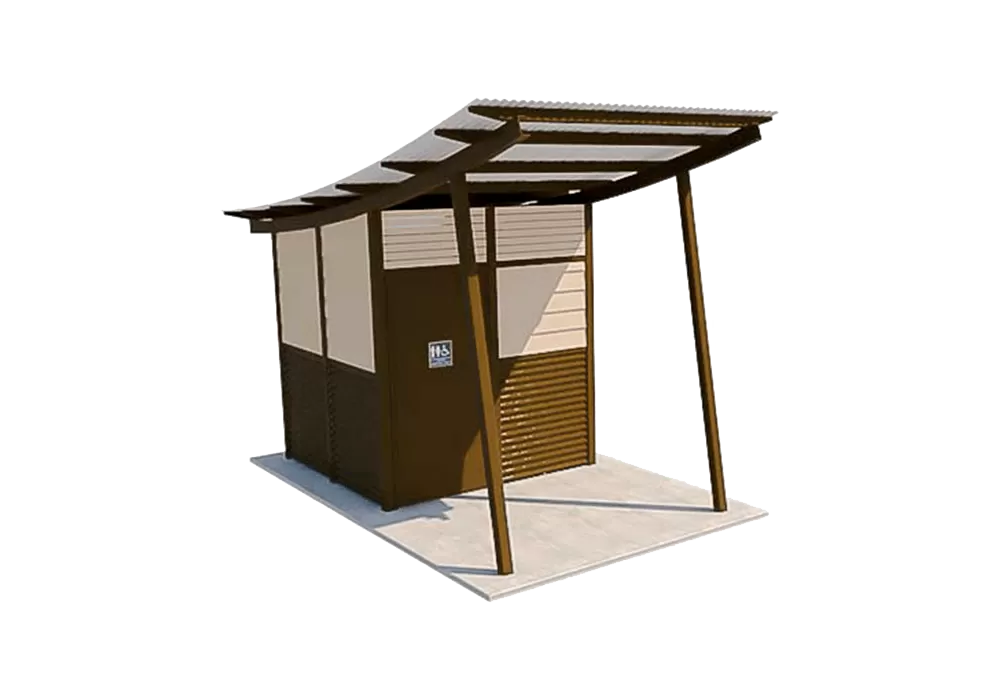

Capricorn 1

The Capricorn Toilet Building sets itself apart with a distinctive concave curved roof line and architectural rolled steelwork, designed to make a bold statement in any environment. The concave curved roof design provides an ideal catchment area for rainwater for water tanks to capture this valuable resource..

Applications

Specification

  • Wall Framing

    Fully welded robust steel SHS, hot dip galvanized after fabrication

  • Proprietary Prefab Wall Panel System

    Pre-clad panels, inside and out. Doors pre-hung in frames. Prefab for simple, fast and accurate bolt together onsite construction

  • External Wall Cladding

    • 1/2 Colorbond Custom Orb, 1/2 Alum Extruded Cladding (standard)Colorbond Custom Orb (standard)
    • Alum Extruded Cladding

  • Internal Wall Cladding

    Miniorb - vandal resistant and easy maintenance

  • Roof

    Colorbond Custom Orb - Curved

  • Door

    Solid core, Colorbond clad

  • Door Hardware

    Heavy duty marine grade stainless steel, indicator bolts, door closers, internal and external pull handles

  • Door Signage

    Tactile Braille blue/white

  • Fixings

    Class 3 roof fixings, stainless steel structural fixings

  • Structural Engineering

    Engineered for your site, including Region D cyclonic locations

  • Exposed Steel

    Hot dip galvanised and powder-coated

  • Standard Fixtures

    Toilet suites, S/S Basin, S/S Grab Rails, S/S Toilet Roll Holder

  • Optional Extras

    • Solar lighting
    • Auto-timed door locking
    • Verandah screens
    • Additional internal fixtures
    • Off-grid solutions
Standard 1 Make an Enquiry

Standard 1

  • 2400mm x 2400mm
  • 1x Universal Access Toilet
Make an Enquiry

Resources

  • Risk Audit Checklist Download

    Risk Audit Checklist

  • Flood and Cyclone Resilient Guide Download

    Flood and Cyclone Resilient Guide

  • HVRA Funding Guide and Checklist Download

    HVRA Funding Guide and Checklist

  • Design Consultation Download

    Design Consultation

  • Public Toilet Planning Guide and Checklist Download

    Public Toilet Planning Guide and Checklist

  • Refurb vs Replace: Guide and Cost Study Download

    Refurb vs Replace: Guide and Cost Study

  • Inspiration Lookbook Download

    Inspiration Lookbook

  • Education Planning Guide and Checklist Download

    Education Planning Guide and Checklist

  • Automated Public Toilets Download

    Automated Public Toilets

  • Modus vs Concrete Toilets Download

    Modus vs Concrete Toilets

  • Flood-Resilient Public Toilet Checklist and Guide Download

    Flood-Resilient Public Toilet Checklist and Guide

  • Colours and Finishes Download

    Colours and Finishes

  • About Prefab Modular Download

    About Prefab Modular

Frequently Asked Questions

How many cubicles does the Capricorn 1 have?
The Capricorn 1 houses one Universal Access Toilet in a single self-contained cubicle. It's the entry model in the Capricorn range, distinguished by its concave curved roof and architectural rolled steelwork.
What are the dimensions of the Capricorn 1?
The Capricorn 1 takes up 2400mm x 2400mm, a compact footprint for parks, beaches, golf courses, and resort grounds.
What sites is the Capricorn 1 best suited for?
The Capricorn 1 makes a statement at parks, beaches, tourist parks, resorts, and lakeside or riverside reserves where the curved roof line adds architectural interest to the landscape.
Can the Capricorn's curved roof capture rainwater?
Yes, and that's one of its defining advantages. The concave curve forms a natural catchment that channels rainwater to storage tanks, making the Capricorn a strong fit for off-grid and water-conscious sites.
How is the Capricorn 1 different from the Capricorn 2 and Capricorn 3?
The Capricorn 1 has a single Universal Access Toilet. The Capricorn 2 provides two Universal Access cubicles, and the Capricorn 3 converts the same footprint into three cubicles with a one UAT plus two ambulant mix.
Can the Capricorn 1 be customised?
Yes. Wood-look aluminium, Modwood external walls, cladding splits, and integrated water tanks are all options, with bespoke designs delivered through the Custom Capricorn.
Is the Capricorn 1 compliant with AS 1428.1 and the NCC?
Yes. Its Universal Access Toilet is designed to AS 1428.1 and NCC requirements as standard. Read more about AS 1428.1 compliance.
What warranty does the Capricorn 1 come with?
The Capricorn 1 is protected by a 20-year structural warranty on a 50-year design life.

Related Products

Related Projects

Bluegum Community Centre project in WA

Bluegum Community Centre, WA

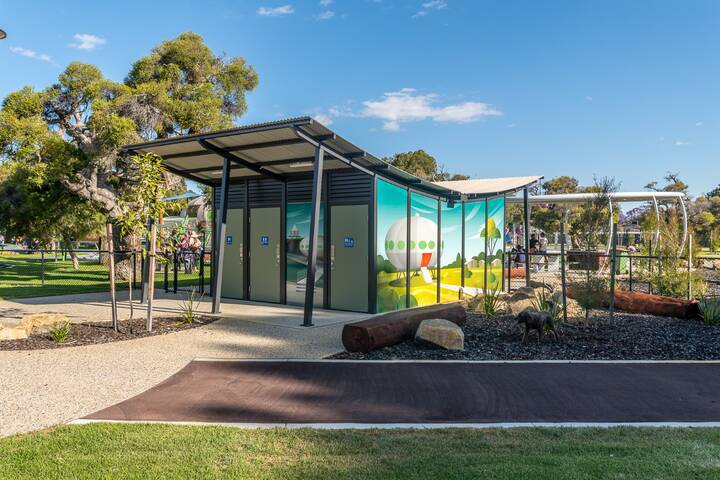

Bob Gordon Reserve project in WA

Bob Gordon Reserve, WA

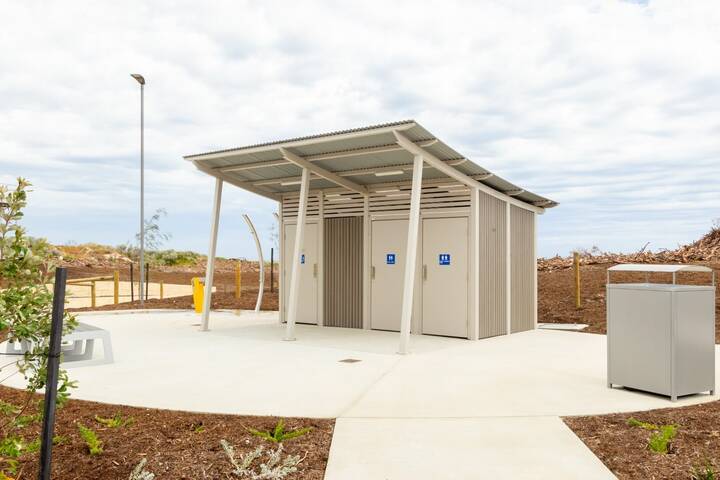

Golden Bay Foreshore | Capricorn 3 project in WA
