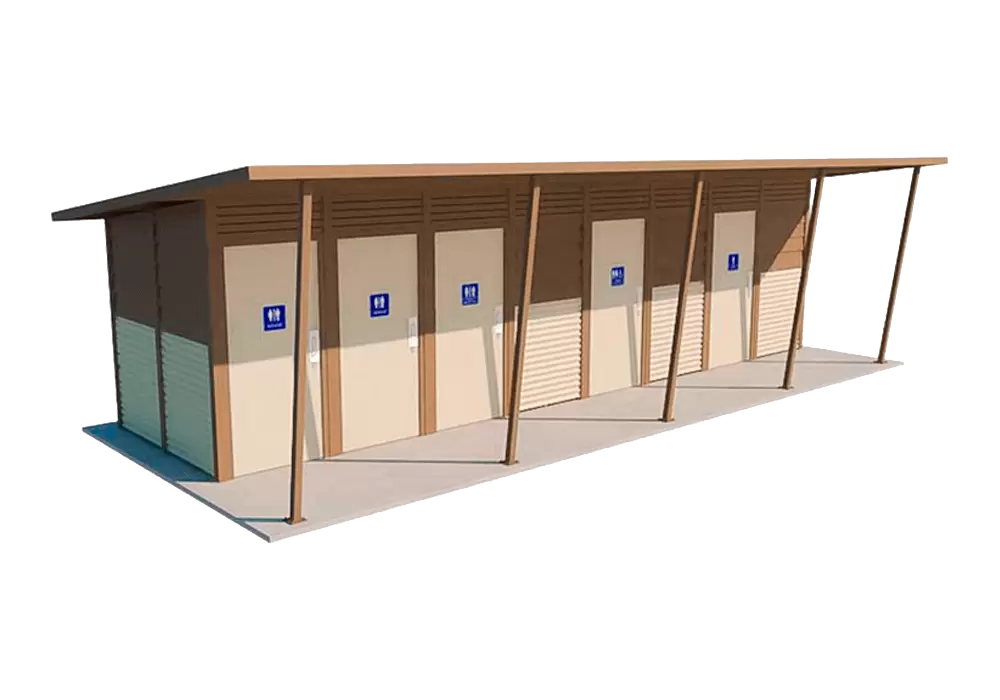

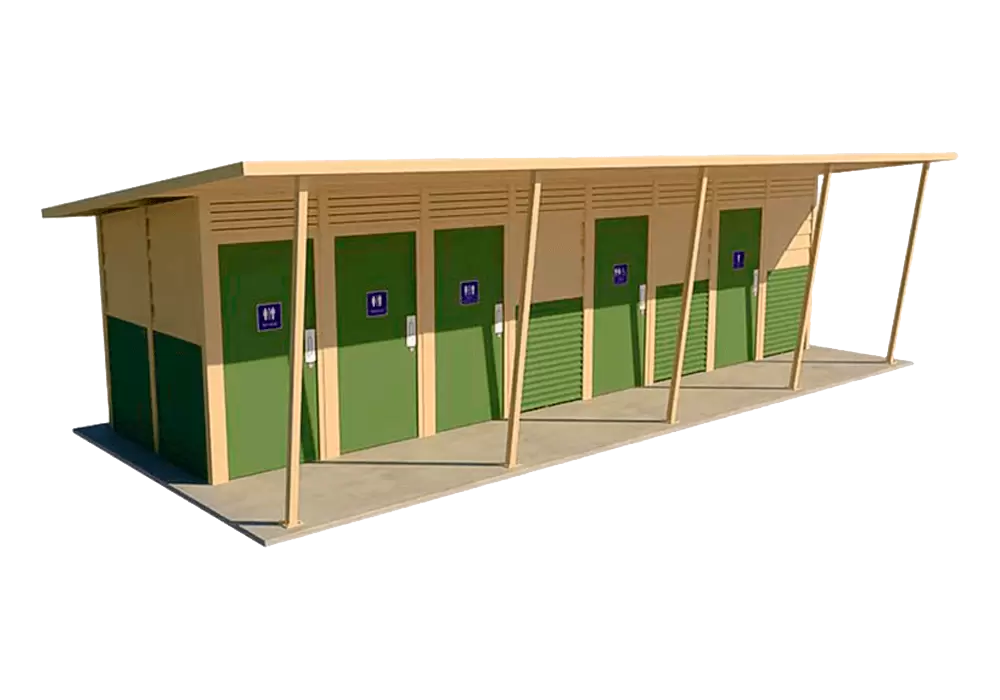

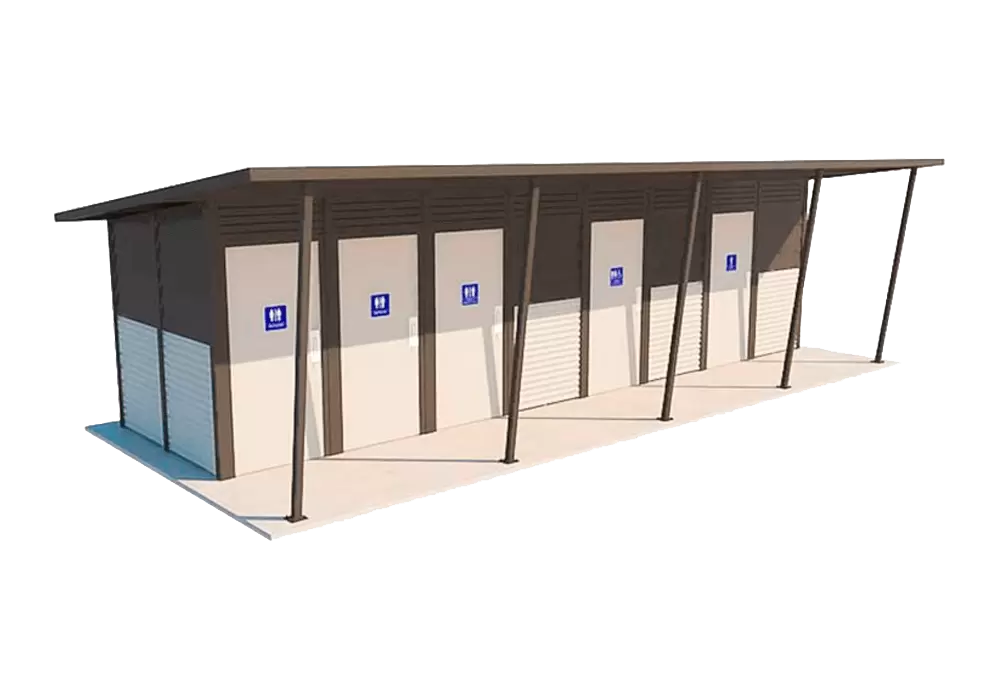

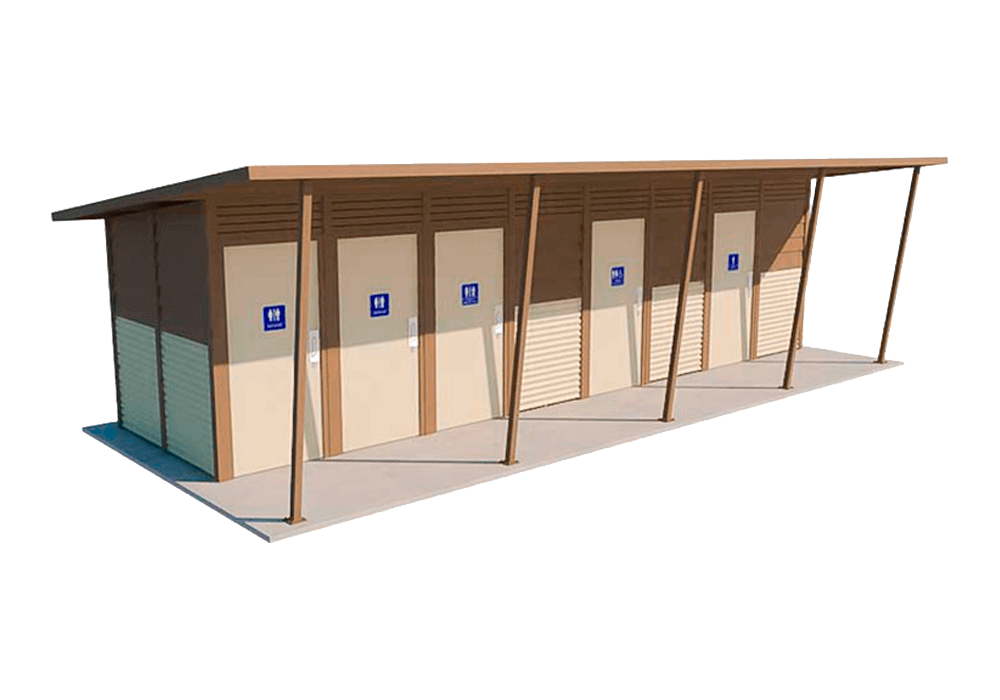

Yarra 7
The Yarra Toilet Building distinguishes itself from a standard toilet building with a distinctive skillion style roof line; a versatile design which integrates seamlessly into any environment. This building has found its place in many different environments, as it can sit well with varying architectural styles.
Applications
Specification
-
Wall Framing
Fully welded robust steel SHS, hot dip galvanized after fabrication
-
Proprietary Prefab Wall Panel System
Pre-clad panels, inside and out. Doors pre-hung in frames. Prefab for simple, fast and accurate bolt together onsite construction
-
External Wall Cladding
- Colorbond Custom Orb (standard)
- Alum Extruded Cladding
- 1/2 Colorbond Custom Orb, 1/2 Alum Extruded Cladding
- Vinyl Graphics
-
Internal Wall Cladding
Miniorb - vandal resistant and easy maintenance
-
Roof
Colorbond Custom Orb
-
Door
Solid core, Colorbond clad
-
Door Hardware
Heavy duty marine grade stainless steel, indicator bolts, door closers, internal and external pull handles
-
Door Signage
Tactile Braille blue/white
-
Fixings
Class 3 roof fixings, stainless steel structural fixings
-
Structural Engineering
Engineered for your site, including Region D cyclonic locations
-
Exposed Steel
Hot dip galvanised and powder-coated
-
Standard Fixtures
Toilet suites, S/S Basin, S/S Grab Rails, S/S Toilet Roll Holder
-
Optional Extras
- Solar lighting
- Auto-timed door locking
- Verandah screens
- Additional internal fixtures
- Off-grid solutions
The Yarra Toilet Building distinguishes itself from a standard toilet building with a distinctive skillion style roof line; a versatile design which integrates seamlessly into any environment. This building has found its place in many different environments, as it can sit well with varying architectural styles.
Applications
Specification
-
Wall Framing
Fully welded robust steel SHS, hot dip galvanized after fabrication -
Proprietary Prefab Wall Panel System
Pre-clad panels, inside and out. Doors pre-hung in frames. Prefab for simple, fast and accurate bolt together onsite construction -
External Wall Cladding
- Colorbond Custom Orb (standard)
- Alum Extruded Cladding
- 1/2 Colorbond Custom Orb, 1/2 Alum Extruded Cladding
- Vinyl Graphics
-
Internal Wall Cladding
Miniorb - vandal resistant and easy maintenance -
Roof
Colorbond Custom Orb -
Door
Solid core, Colorbond clad -
Door Hardware
Heavy duty marine grade stainless steel, indicator bolts, door closers, internal and external pull handles -
Door Signage
Tactile Braille blue/white -
Fixings
Class 3 roof fixings, stainless steel structural fixings -
Structural Engineering
Engineered for your site, including Region D cyclonic locations -
Exposed Steel
Hot dip galvanised and powder-coated -
Standard Fixtures
Toilet suites, S/S Basin, S/S Grab Rails, S/S Toilet Roll Holder -
Optional Extras
- Solar lighting
- Auto-timed door locking
- Verandah screens
- Additional internal fixtures
- Off-grid solutions
Standard 7 Floorplan
- 2 Standard Toilet
- 2 Ambulant Toilet
- 1 Universal Access Toilet
- 1 Multiple Urinal
- 9600mm x 2400mm
