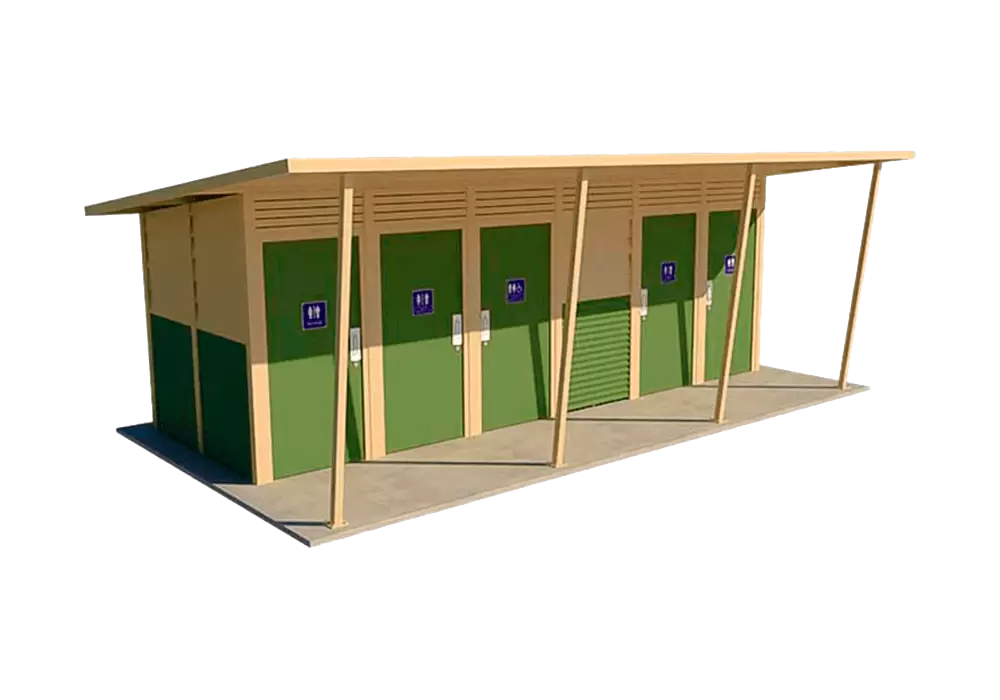

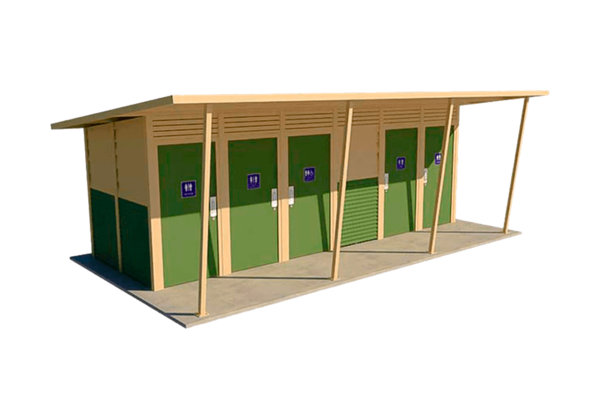

  • Yarra 5 Standard Toilet Building with Shale Grey and Woodland Grey colour scheme

    Yarra 5 Standard Toilet Building with Shale Grey and Woodland Grey colour scheme

  • Yarra 5 with wood-look aluminium slats

    Yarra 5 with wood-look aluminium slats

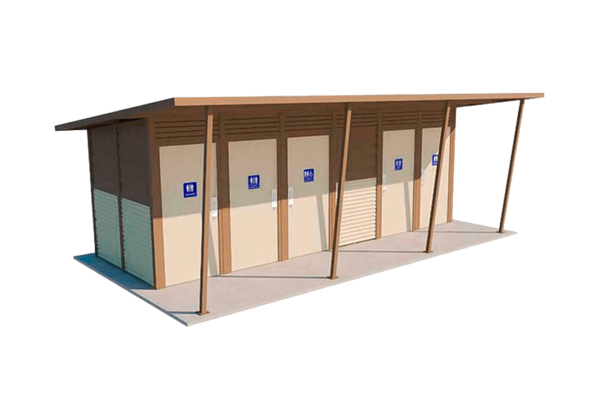

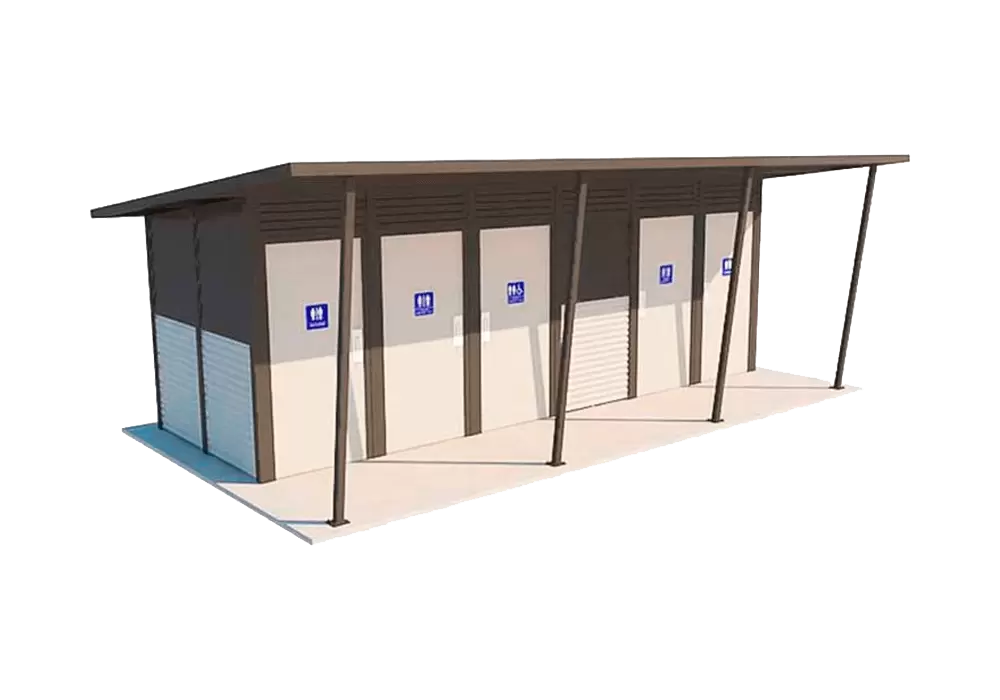

  • Yarra 5 Standard Toilet Building with Evening Haze and Gully colour scheme

    Yarra 5 Standard Toilet Building with Evening Haze and Gully colour scheme

  • Yarra 5 with Modwood ventilation louvres and privacy screen verandah

    Yarra 5 with Modwood ventilation louvres and privacy screen verandah

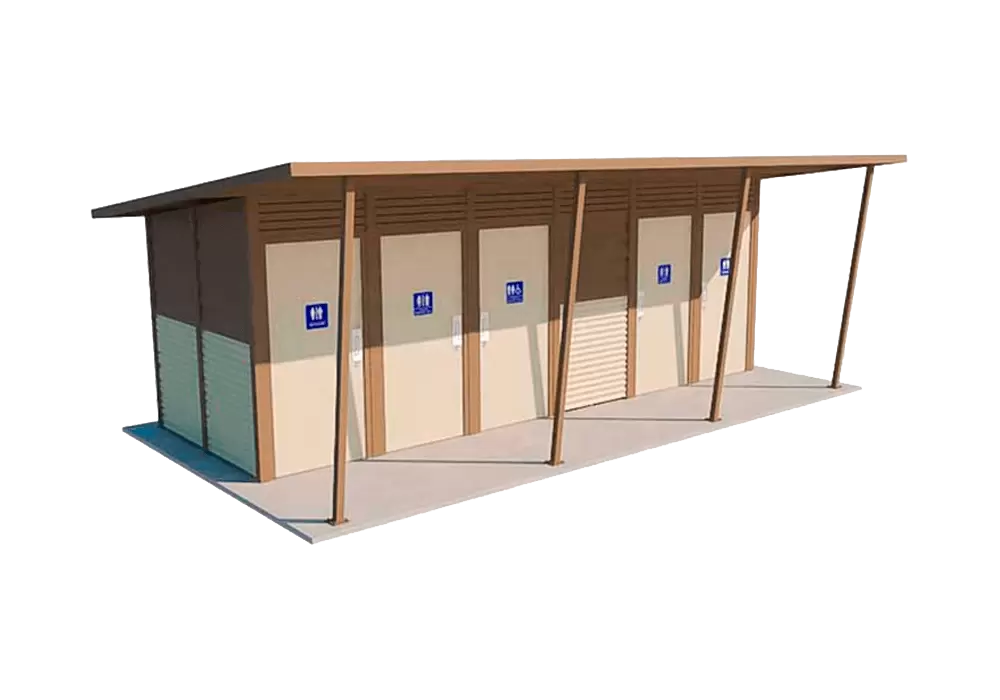

  • Yarra 5 Standard Toilet Building with Pale Eucalypt and Paperbark colour scheme

    Yarra 5 Standard Toilet Building with Pale Eucalypt and Paperbark colour scheme

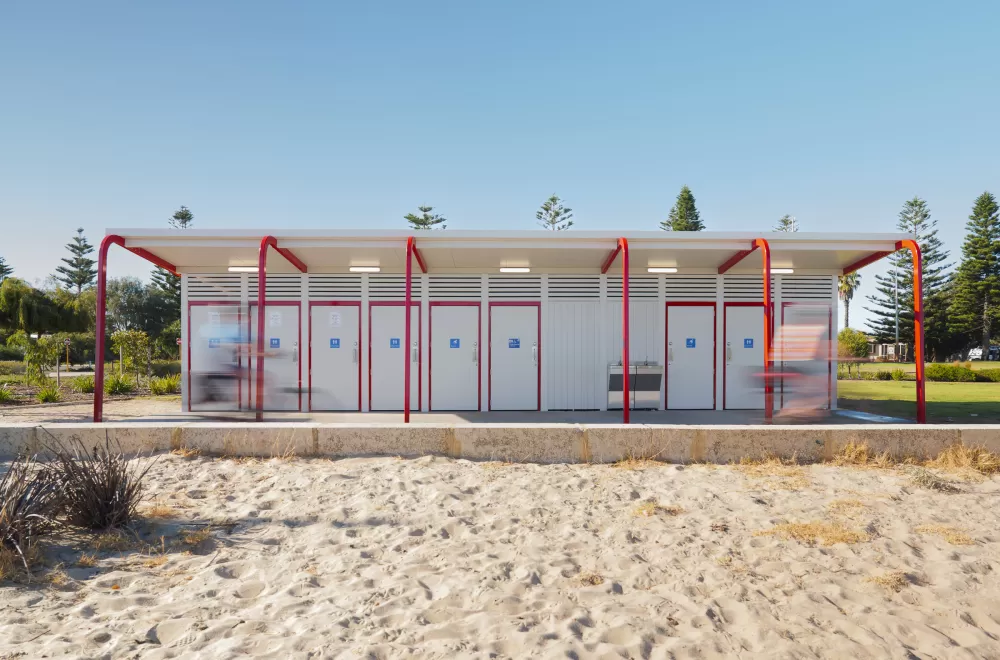

  • Custom Yarra 6 for Koombana Bay

    Custom Yarra 6 for Koombana Bay

  • Yarra 2 with Fascia Plank and Custom Orb

    Yarra 2 with Fascia Plank and Custom Orb

  • Yarra 5 with Modwood ventilation louvres and privacy screen verandah

    Yarra 5 with Modwood ventilation louvres and privacy screen verandah

  • Yarra 3 integrated into structure

    Yarra 3 integrated into structure

  • Yarra 1 with timber slats and vandal-resistant mini orb externals

    Yarra 1 with timber slats and vandal-resistant mini orb externals

  • Custom Yarra with yellow floral verandah and vertical aluminium planks

    Custom Yarra with yellow floral verandah and vertical aluminium planks

  • Yarra 1 with graphic panels

    Yarra 1 with graphic panels

  • Yarra 1 with floral graphic panels in park setting

    Yarra 1 with floral graphic panels in park setting

  • Custom Yarra 5 with American Oak Wood-Look aluminium

    Custom Yarra 5 with American Oak Wood-Look aluminium

  • Yarra 2 with timber external walls

    Yarra 2 with timber external walls

  • Custom Yarra for campground with Wood-Look aluminium and showers

    Custom Yarra for campground with Wood-Look aluminium and showers

Yarra 5

The Yarra Toilet Building distinguishes itself from a standard toilet building with a distinctive skillion style roof line; a versatile design which integrates seamlessly into any environment. This building has found its place in many different environments, as it can sit well with varying architectural styles.



Applications

Specification

  • Wall Framing

    Fully welded robust steel SHS, hot dip galvanized after fabrication

  • Proprietary Prefab Wall Panel System

    Pre-clad panels, inside and out. Doors pre-hung in frames. Prefab for simple, fast and accurate bolt together onsite construction

  • External Wall Cladding

    • Colorbond Custom Orb (standard)
    • Alum Extruded Cladding
    • 1/2 Colorbond Custom Orb, 1/2 Alum Extruded Cladding
    • Vinyl Graphics

  • Internal Wall Cladding

    Miniorb - vandal resistant and easy maintenance

  • Roof

    Colorbond Custom Orb

  • Door

    Solid core, Colorbond clad

  • Door Hardware

    Heavy duty marine grade stainless steel, indicator bolts, door closers, internal and external pull handles

  • Door Signage

    Tactile Braille blue/white

  • Fixings

    Class 3 roof fixings, stainless steel structural fixings

  • Structural Engineering

    Engineered for your site, including Region D cyclonic locations

  • Exposed Steel

    Hot dip galvanised and powder-coated

  • Standard Fixtures

    Toilet suites, S/S Basin, S/S Grab Rails, S/S Toilet Roll Holder

  • Optional Extras

    • Solar lighting
    • Auto-timed door locking
    • Verandah screens
    • Additional internal fixtures
    • Off-grid solutions
Standard 5 Make an Enquiry

Standard 5

  • 2 Standard Toilet
  • 2 Ambulant Toilet
  • 1 Universal Access Toilet
  • 7200mm x 2400mm
Make an Enquiry

Resources

  • Risk Audit Checklist Download

    Risk Audit Checklist

  • Flood and Cyclone Resilient Guide Download

    Flood and Cyclone Resilient Guide

  • HVRA Funding Guide and Checklist Download

    HVRA Funding Guide and Checklist

  • Design Consultation Download

    Design Consultation

  • Public Toilet Planning Guide and Checklist Download

    Public Toilet Planning Guide and Checklist

  • Refurb vs Replace: Guide and Cost Study Download

    Refurb vs Replace: Guide and Cost Study

  • Inspiration Lookbook Download

    Inspiration Lookbook

  • Education Planning Guide and Checklist Download

    Education Planning Guide and Checklist

  • Automated Public Toilets Download

    Automated Public Toilets

  • Modus vs Concrete Toilets Download

    Modus vs Concrete Toilets

  • Flood-Resilient Public Toilet Checklist and Guide Download

    Flood-Resilient Public Toilet Checklist and Guide

  • Colours and Finishes Download

    Colours and Finishes

  • About Prefab Modular Download

    About Prefab Modular

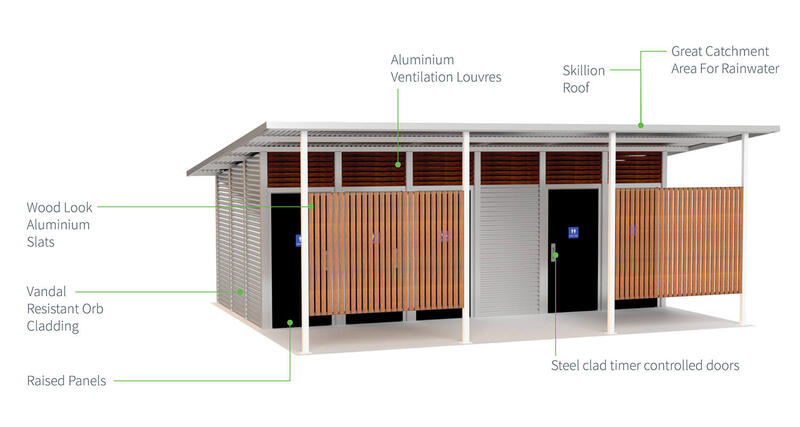

Building Features

Building Features

Popular Customisations

  • Wood Look Aluminium

    Wood Look Aluminium

  • Auto-Locking System

    Auto-Locking System

  • CCTV

    Graphic Panels

Frequently Asked Questions

How many cubicles does the Yarra 5 have?
The Yarra 5 has five cubicles: one Universal Access Toilet, two ambulant toilets, and two standard cubicles. All cubicles are individually accessed from outside the building, and the room types can be customised to suit your site's needs.
What are the dimensions of the Yarra 5?
The Yarra 5 has a footprint of 7200mm x 2400mm, three times the width of the Yarra 1 at the same 2400mm depth.
What sites is the Yarra 5 best suited for?
The Yarra 5 is built for high-traffic public locations, such as major parks, foreshore reserves, sporting hubs, and busy rest areas, where five individually accessed cubicles keep queues moving at peak times.
How is the Yarra 5 different from the Yarra 3 and Yarra 7?
The Yarra 5 sits between the three-cubicle Yarra 3 and the seven-cubicle Yarra 7, the largest standard building in the range. All share the same skillion roof design and prefab panel construction.
Can the Yarra 5 be customised?
Yes. Wood-look aluminium, Modwood ventilation louvres, privacy screen verandahs, and graphic panels are popular on delivered Yarra 5 projects. Fully bespoke layouts run through the Custom Yarra.
Is the Yarra 5 compliant with AS 1428.1 and the NCC?
Yes. Accessible and ambulant cubicles within the Yarra 5 are designed to AS 1428.1 and NCC requirements. Read more about AS 1428.1 compliance.
What warranty applies to the Yarra 5?
The Yarra 5 carries Modus's standard 20-year structural warranty with a 50-year design life.

Related Products

Related Projects

Bayview Park project in TAS

Bayview Park, TAS

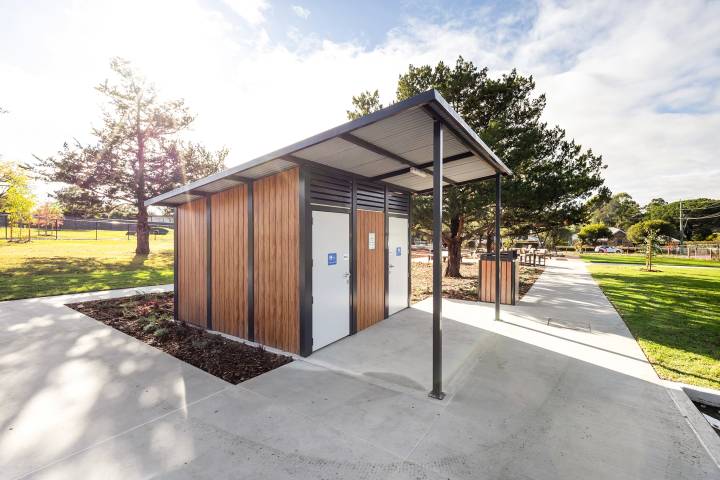

Redbank Reserve project in NSW
