Churchill Park, Busselton

Churchill Park, Busselton

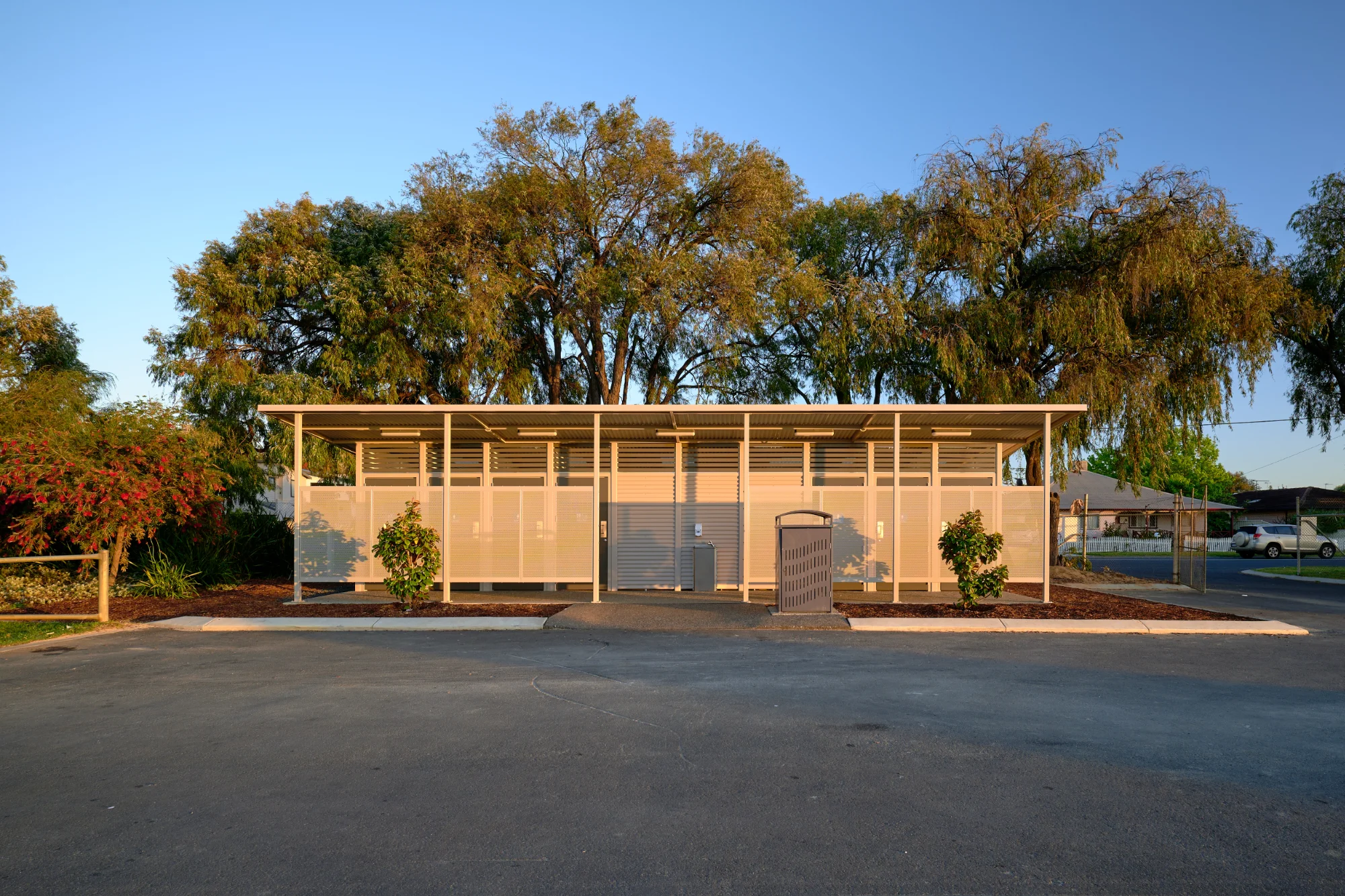

Modus Australia delivered a custom Yarra 6 toilet building for Churchill Park, Busselton, featuring AS1428.1 compliant accessible facilities, dedicated urinal room, external handwashing basins, and marine-grade corrosion protection designed for high-volume sporting events and coastal conditions.

Principal:
Modus Australia
Client:
City of Busselton
Product/s:

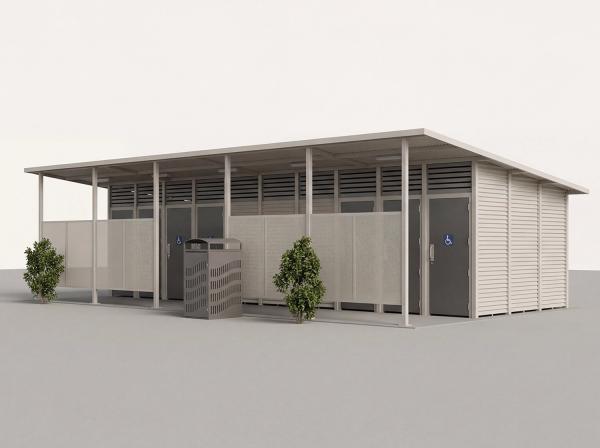

Custom Yarra 6
Year:
2025

Churchill Park serves as a central recreational hub for Busselton, featuring a trotting track, two large ovals, and the Busselton Bowling Club. The park's central location and extensive facilities make it a popular venue for sporting activities and community events, including the annual Busselton Show. The City of Busselton required public toilet facilities capable of handling high-volume events whilst providing durable, accessible amenities for everyday park users.

What were the key design requirements?

The facility needed to accommodate high-volume events with separate urinal facilities, resist vandalism through smart material selection, and include external handwashing to reduce congestion during busy periods.

Through design consultations, the City of Busselton initially requested floor and wall tiling, painted ceilings, and traditional finishes. However, discussions revealed that vandalism resistance and cost-effectiveness were critical priorities given the park's use for large public events. The facility needed to handle peak demand during events like the Busselton Show, requiring efficient throughput and reduced wait times.

Accessibility for all users, including families and individuals with disabilities, remained essential.

Finally, the design required durability and ease of maintenance to withstand frequent use whilst minimising operational costs.

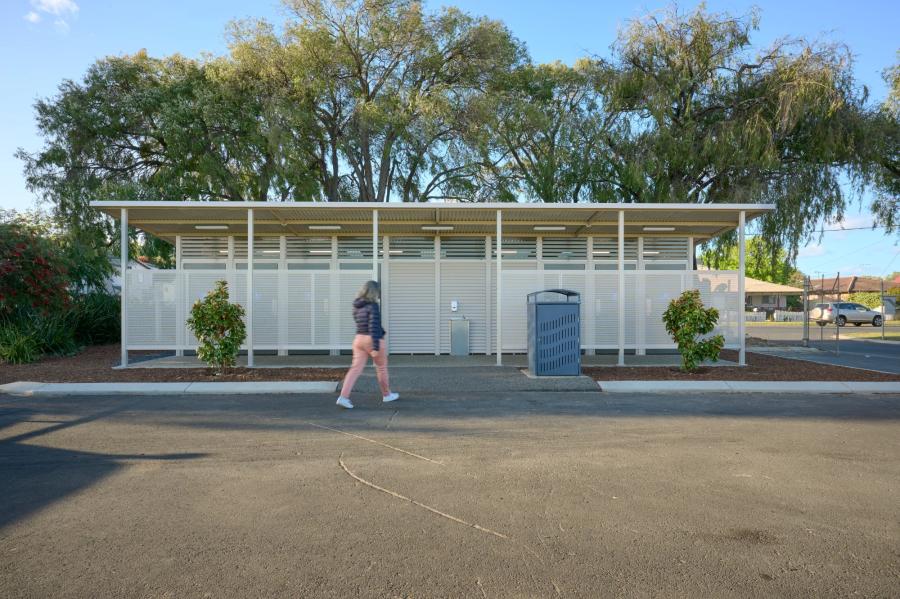

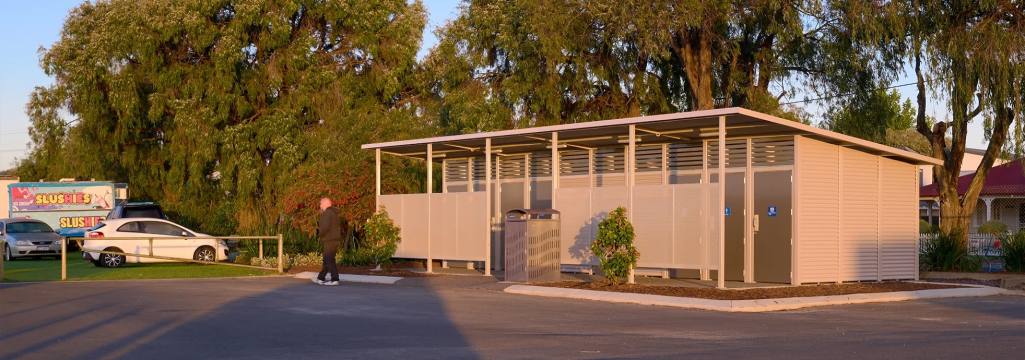

Churchill Park Toilet Building | Event Facilities Busselton

Planning or executing a toilet building project?

Check out our practical 14-step guide to planning, designing, and delivering public toilets that are accessible, durable, and community-loved without blowing your timeline or budget.

How did design consultations improve the solution?

Recommending mini-orb internal cladding instead of painted and tiled surfaces eliminated grout lines that trap bacteria and graffiti, reducing cleaning time and maintenance costs whilst providing superior vandalism resistance.

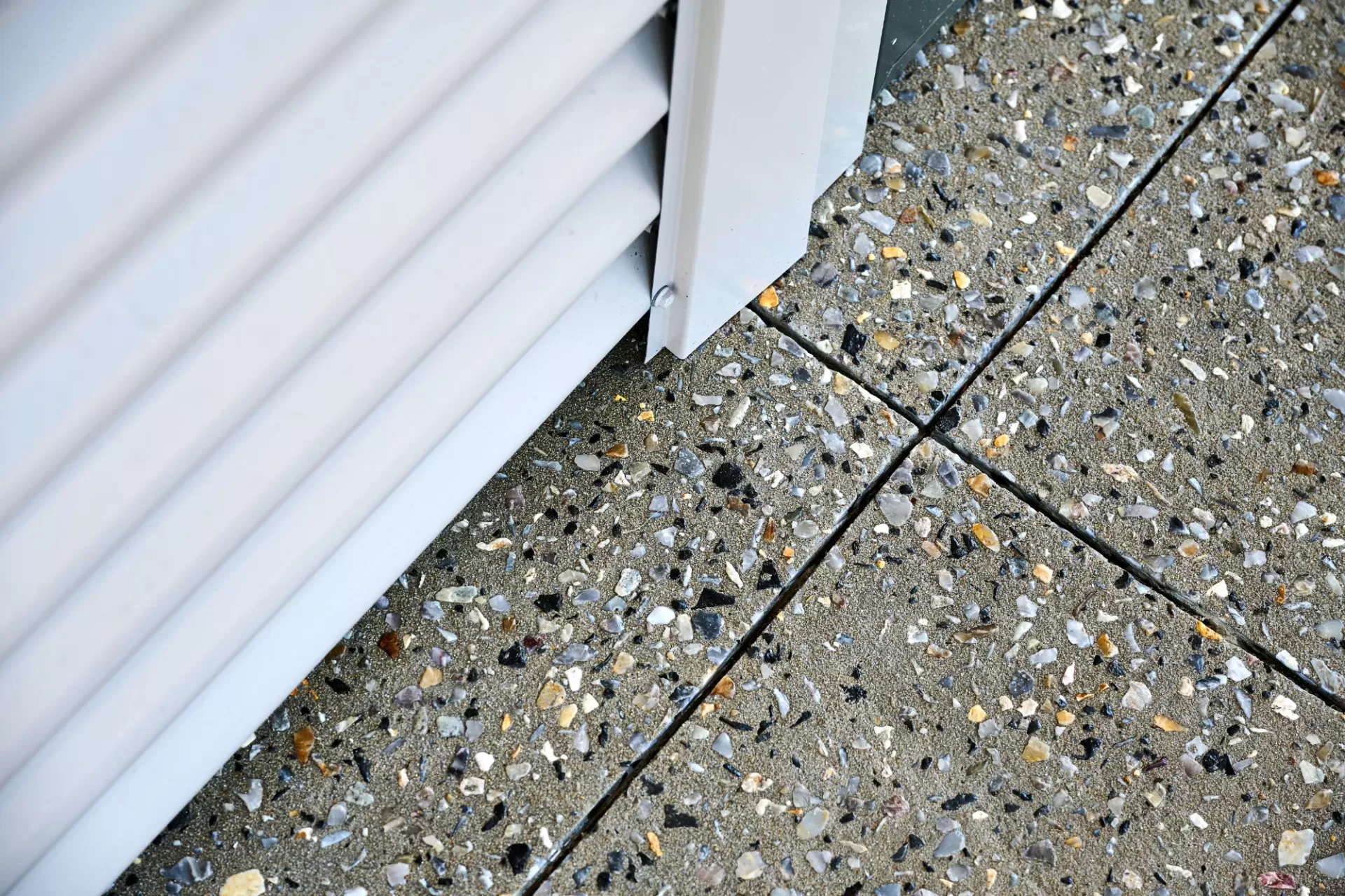

Exposed aggregate concrete flooring provides a durable, slip-resistant, low-maintenance surface ideal for high-traffic public toilets. Premium Britex fixtures throughout ensure exceptional quality and longevity, with marine-grade corrosion resistance appropriate for Busselton's coastal location.

Concealed cisterns and through-wall sharps dispensers are locked within service ducts, preventing them from being smashed, removed, or tampered with for needle access.

What facilities does the building include?

The facility includes:

  • AS1428.1 compliant accessible facilities
  • Five ambulant cubicles
  • A dedicated urinal room
  • External handwashing basins
  • A service area with marine-grade corrosion protection throughout

Structural and External Features

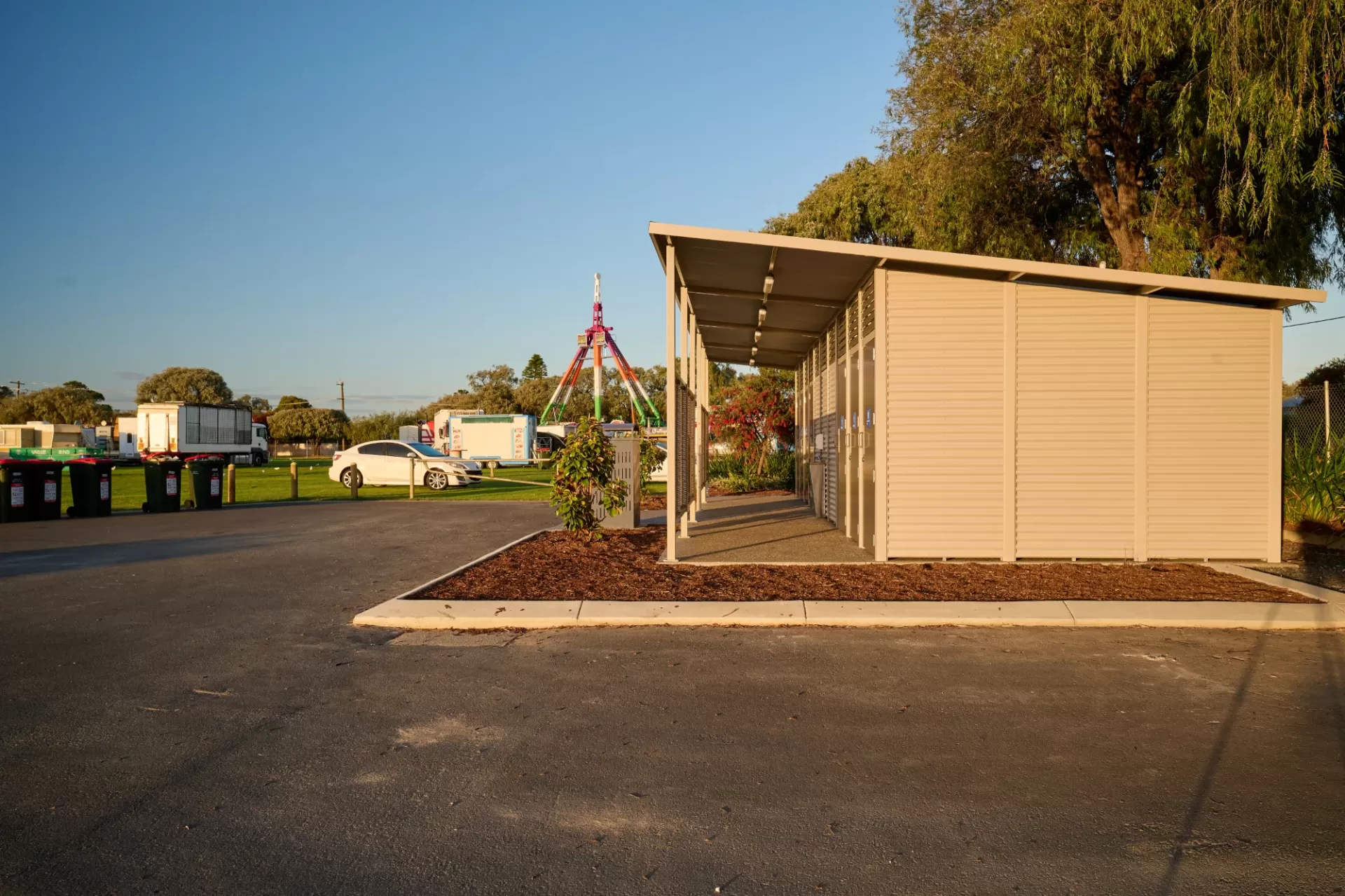

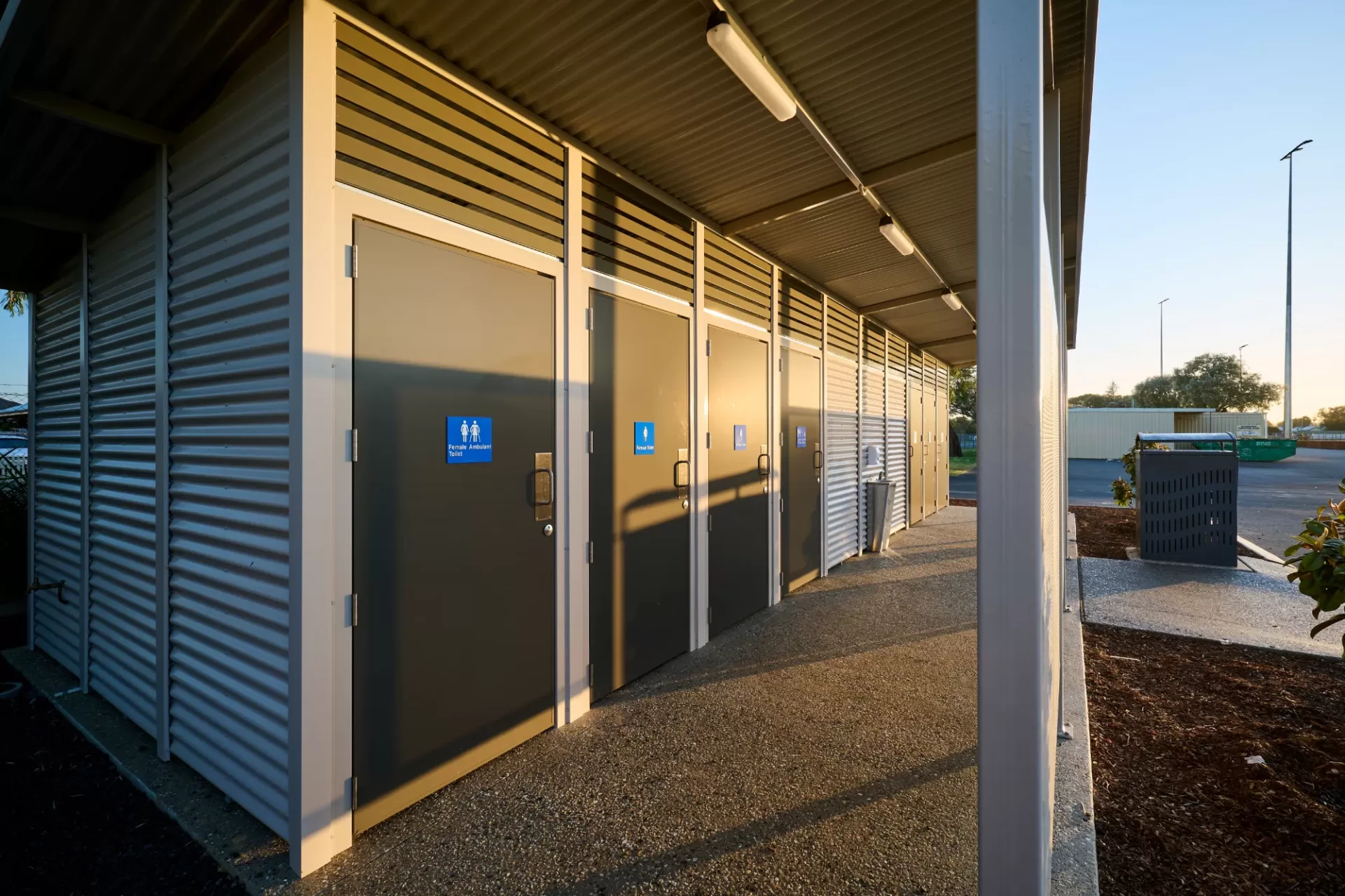

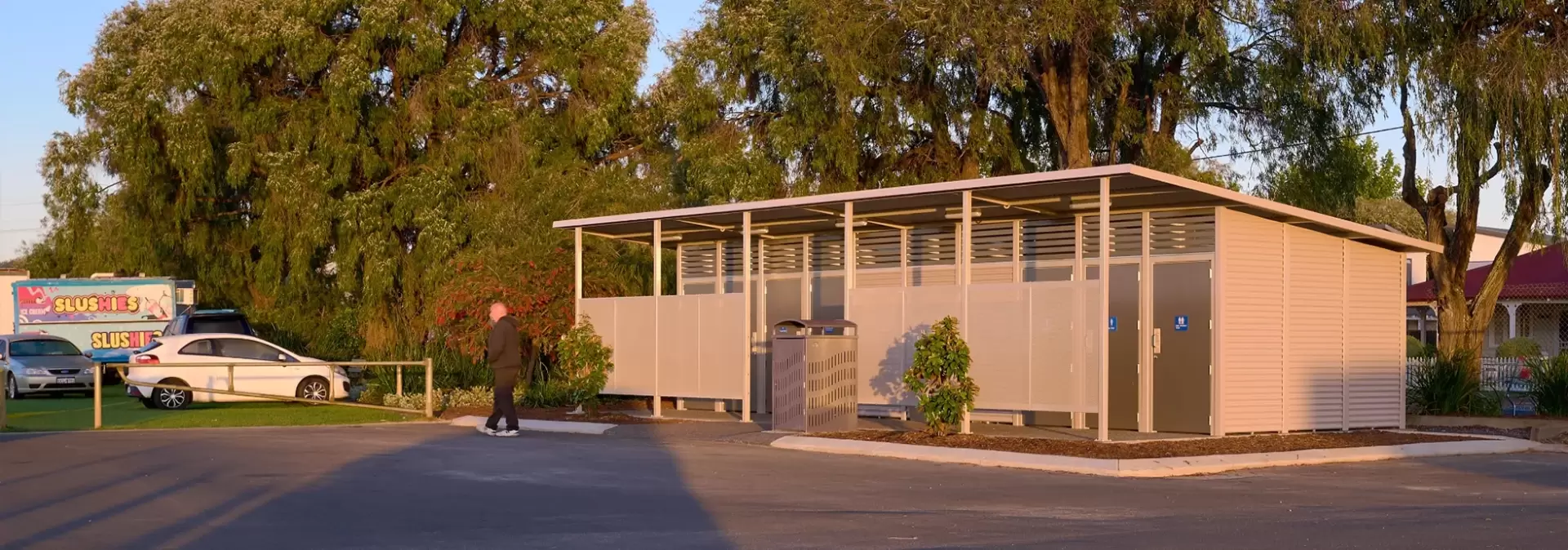

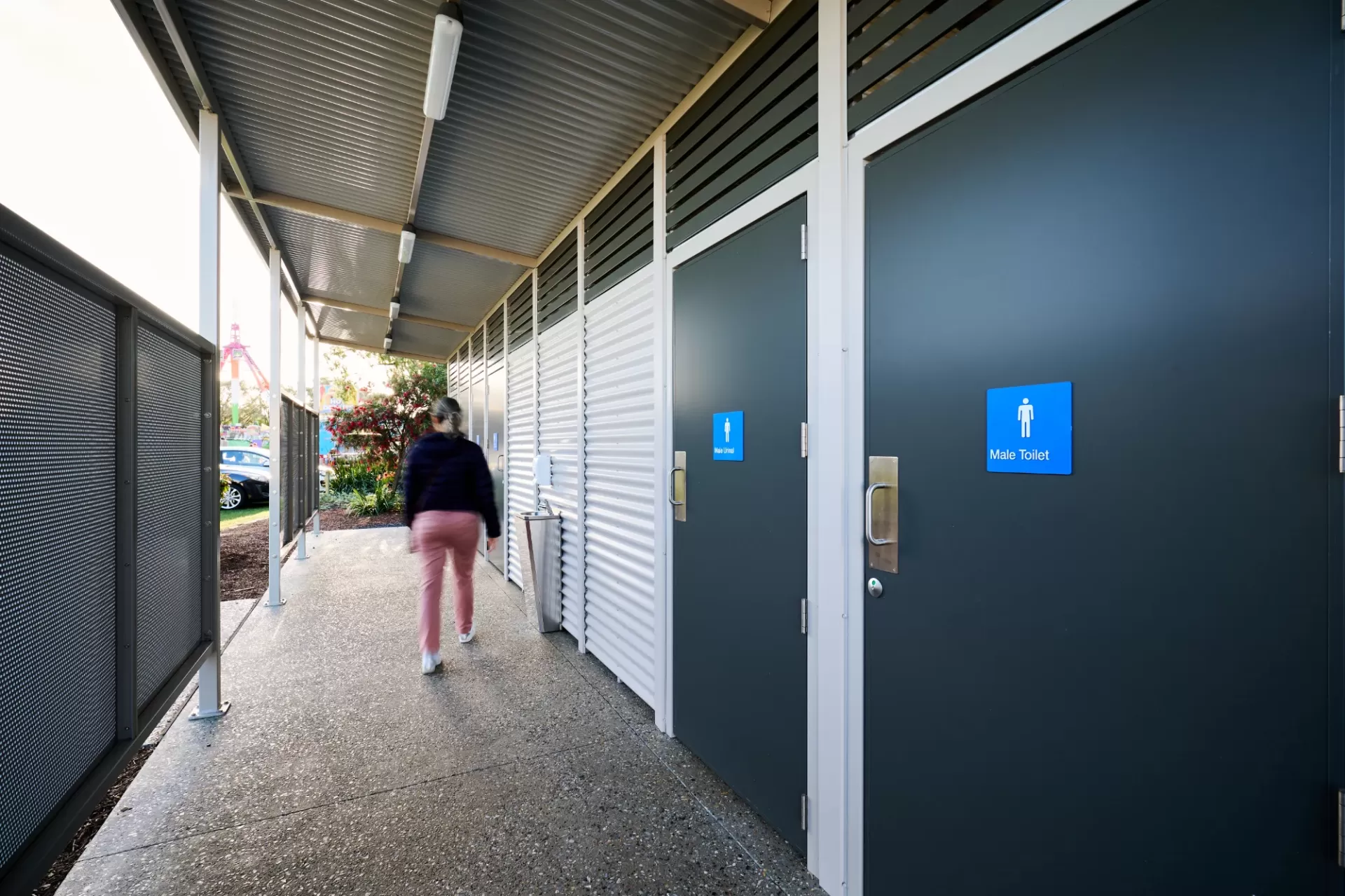

  • Extended verandah with privacy screens: Provides sheltered access whilst supporting CPTED principles through improved natural surveillance and clear sightlines

  • Roof skylights: Maximises natural light penetration, creating a safer, more comfortable environment and reducing daytime power consumption

  • Service area: Secure, dedicated space for cleaners and maintenance staff with supplies, bins, and service access. Enables quick turnaround without working in public view, reducing closure time during maintenance

  • Marine-grade protection: All metal components feature corrosion-resistant coatings and marine-grade stainless steel appropriate for Busselton's coastal environment

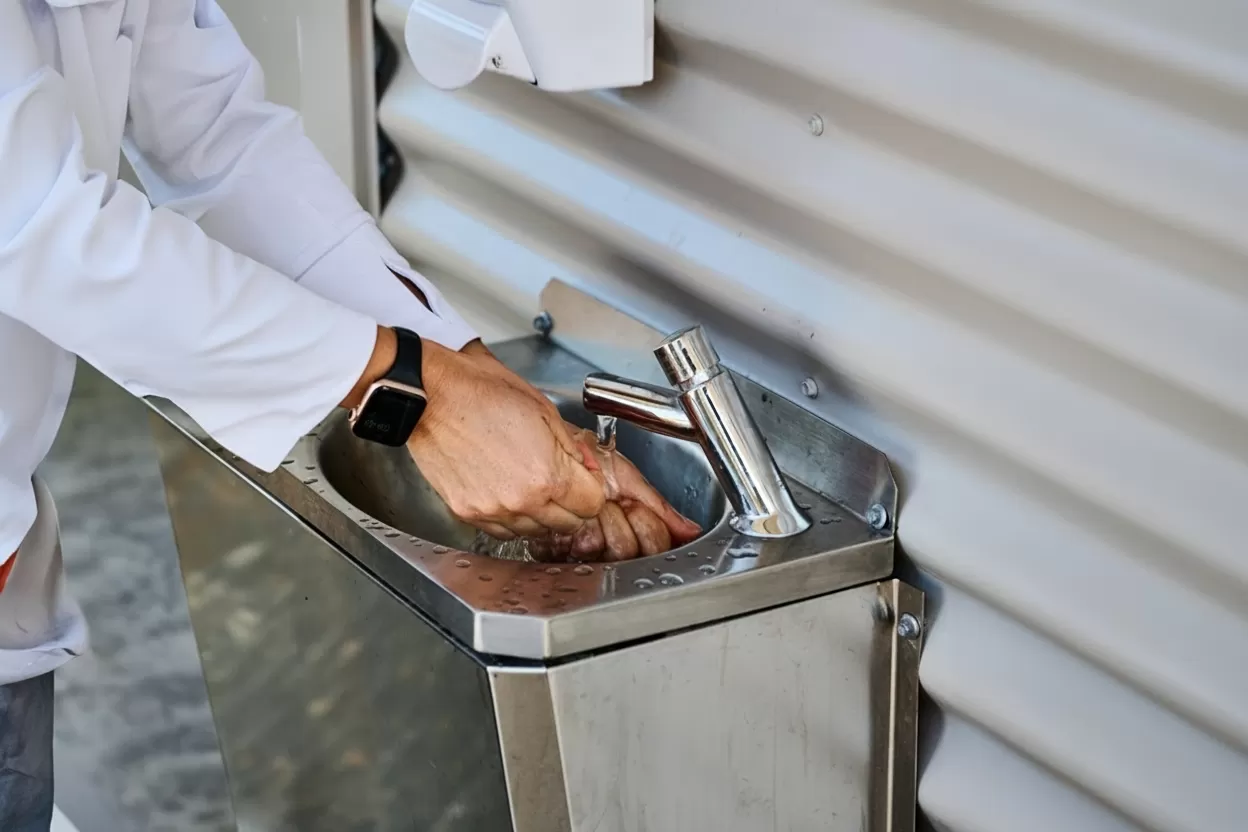

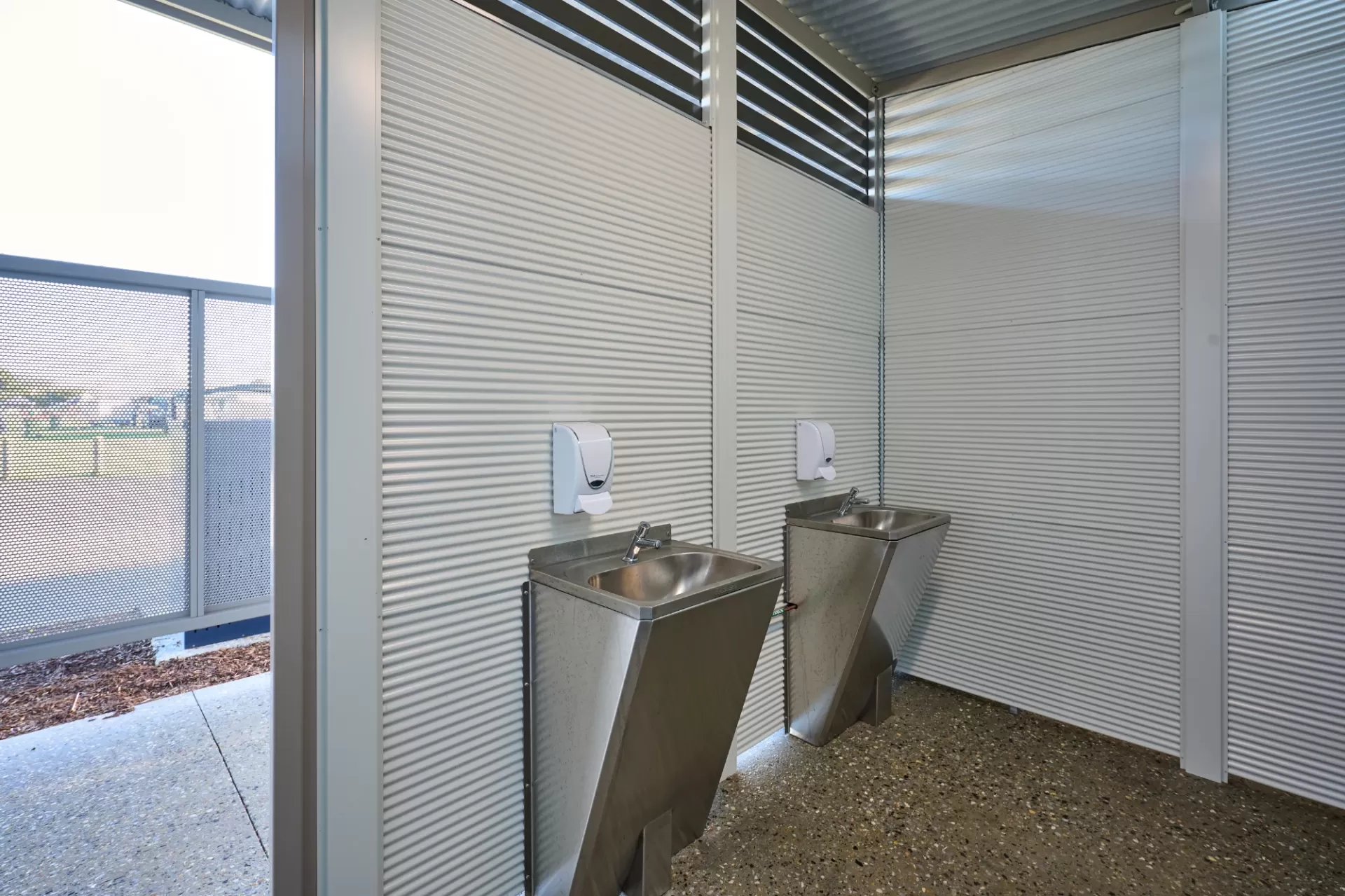

  • External handwashing basins: Britex marine-grade stainless steel basins, particularly valuable during events

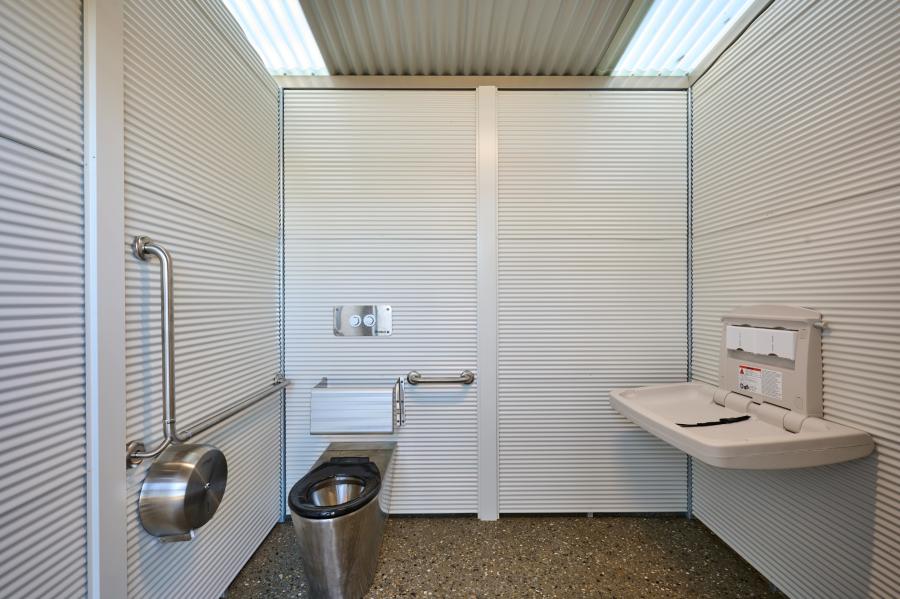

Internal Fixtures and Amenities

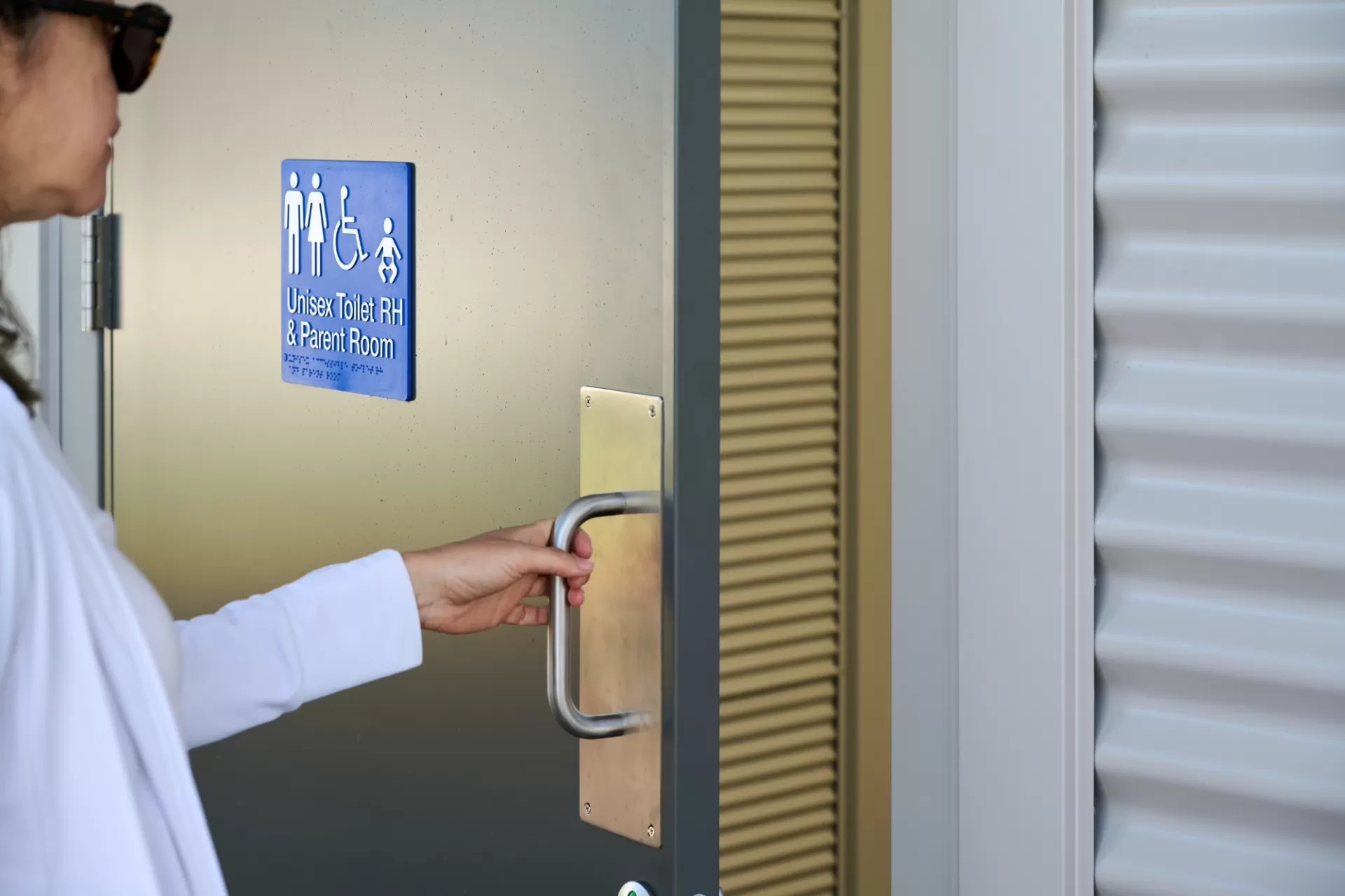

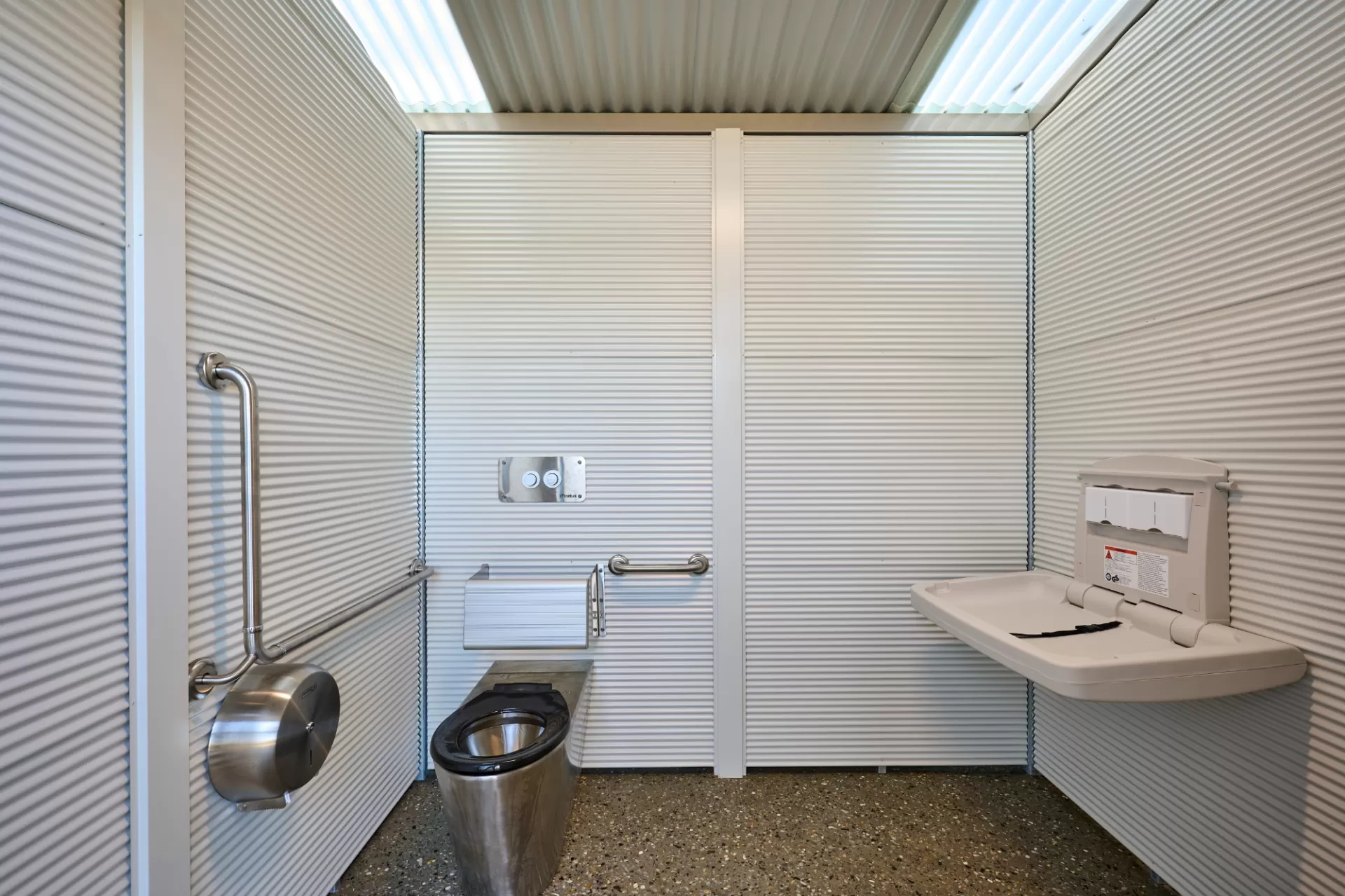

  • AS1428.1 Compliant Universal Access Toilet: Full accessibility for wheelchair users, families with young children, and individuals requiring assistance, meeting Australian accessibility standards

  • Ambulant cubicles: Each fitted with two grabrails (AS1428.1 compliant) for stability and support, featuring custom extended buildouts for improved user comfort

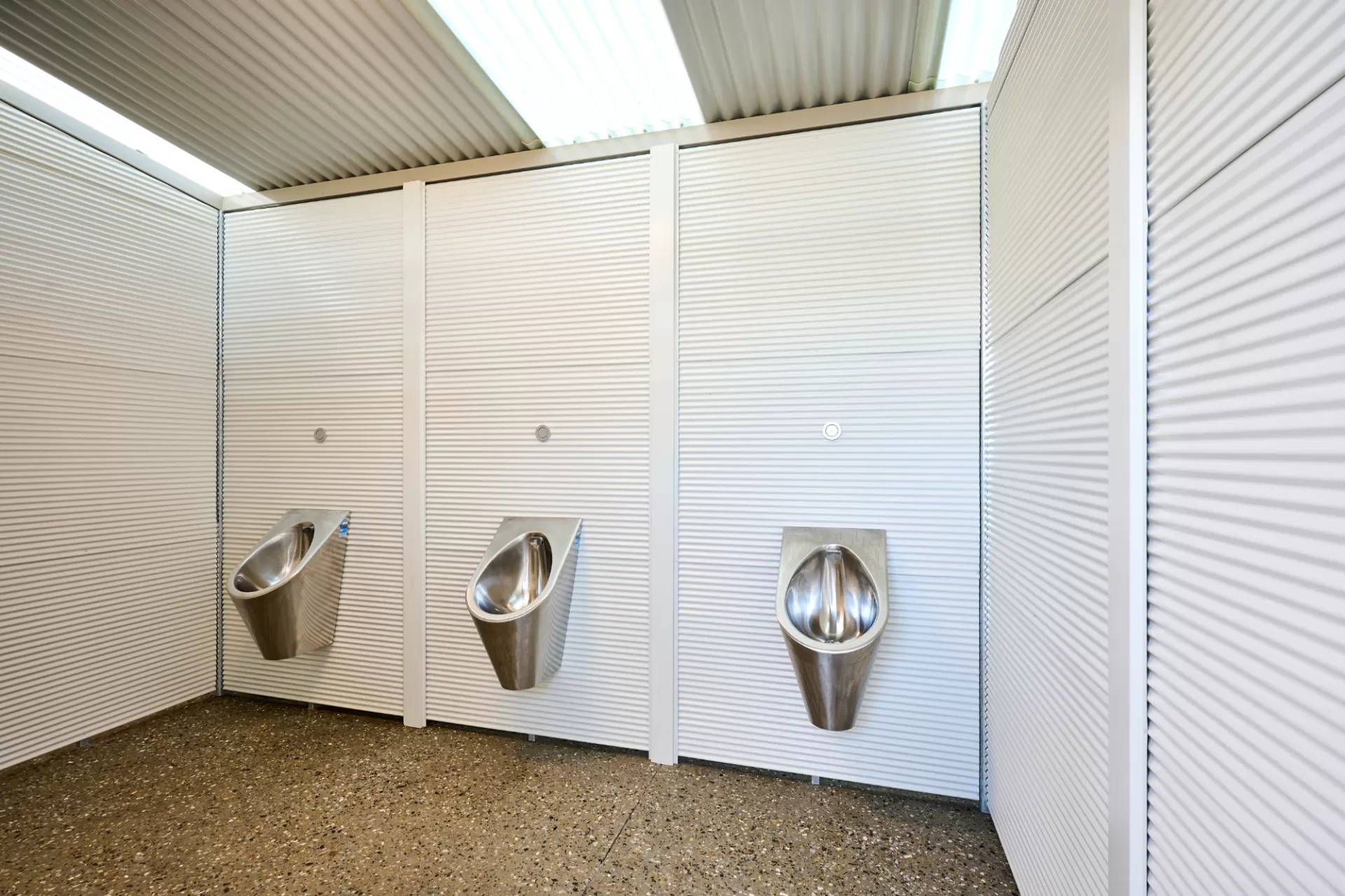

  • Dedicated urinal room: Three Britex Regal stainless steel urinal pods with marine-grade construction in a dedicated space, ideal for high-volume events where quick throughput is essential

  • LED lighting system: Energy-efficient 15W Gilbralter batten lights with minimal power consumption for sustainable operation
  • What materials ensure long-term durability?

    Mini-orb internal cladding, exposed aggregate concrete flooring, and premium stainless steel Britex fixtures provide exceptional durability with minimal maintenance.

    The colour scheme combines Surfmist for roof sheets and internal cladding with Paperbark for external wall sheets, wall trims, and roof trims, creating a coastal aesthetic appropriate to Busselton's location. Deep Ocean doors and louvres provide visual interest and practical durability.

    Frequently Asked Questions

    How does this design resist coastal corrosion?

    All metal components feature marine-grade corrosion protection appropriate for Busselton's coastal environment. The building's structure uses hot-dip galvanised steel treated with a two-pack epoxy system, providing industrial-grade coating that enhances corrosion resistance. Britex fixtures are manufactured from marine-grade stainless steel, whilst aluminium cladding elements are corrosion-resilient and built to last in coastal conditions. The mini-orb internal cladding eliminates porous grout lines where salt and moisture can accumulate, and the exposed aggregate concrete flooring provides a non-porous, salt-resistant surface that won't degrade from coastal exposure.

    Is the facility compliant with CPTED principles?
    Yes. The extended verandah with privacy screens provides sheltered access whilst maintaining clear sightlines and natural surveillance from the surrounding park areas. Roof skylights maximise natural light penetration during daytime hours, creating a well-lit, safe environment. LED lighting ensures excellent visibility during evening use. The open verandah design eliminates hidden corners and blind spots, whilst the building's positioning and transparent elements support passive surveillance principles that deter anti-social behaviour.
    What is the benefit of the external handwashing basins?

    External handwashing basins significantly improve flow-through during high-volume events by allowing people to wash sand, sunscreen, food residue, and BBQ mess without entering the toilet building. This reduces queues at peak times, particularly during events like the Busselton Show when families need to wash hands quickly before eating. The external basins also keep interior floors cleaner and drier by preventing sand and outdoor debris from being tracked inside, reducing cleaning frequency and slip hazards whilst improving the overall user experience.

    What colours were used for this building?

    The colour scheme was carefully selected to suit Busselton's coastal location. Surfmist was used for roof sheets and internal mini-orb cladding, providing a clean, bright interior. Paperbark features on external wall sheets, wall trims, and roof trims, creating a warm, natural coastal aesthetic. Deep Ocean was chosen for doors and louvres, adding visual interest whilst providing practical durability. This palette balances contemporary design with environmental sensitivity appropriate to the park setting.

    How was the building installed?

    The building uses Modus Australia's prefabricated modular construction system. Manufactured off-site in flat-pack panels with doors pre-hung and fixtures included, the building was delivered to site and bolted together on a prepared concrete pad. This system enabled fast, accurate installation with minimal site disruption, typically requiring only 1-2 weeks for on-site assembly compared to months for traditional construction methods. The prefabricated approach ensures precision engineering, quality control, and reduced waste.
