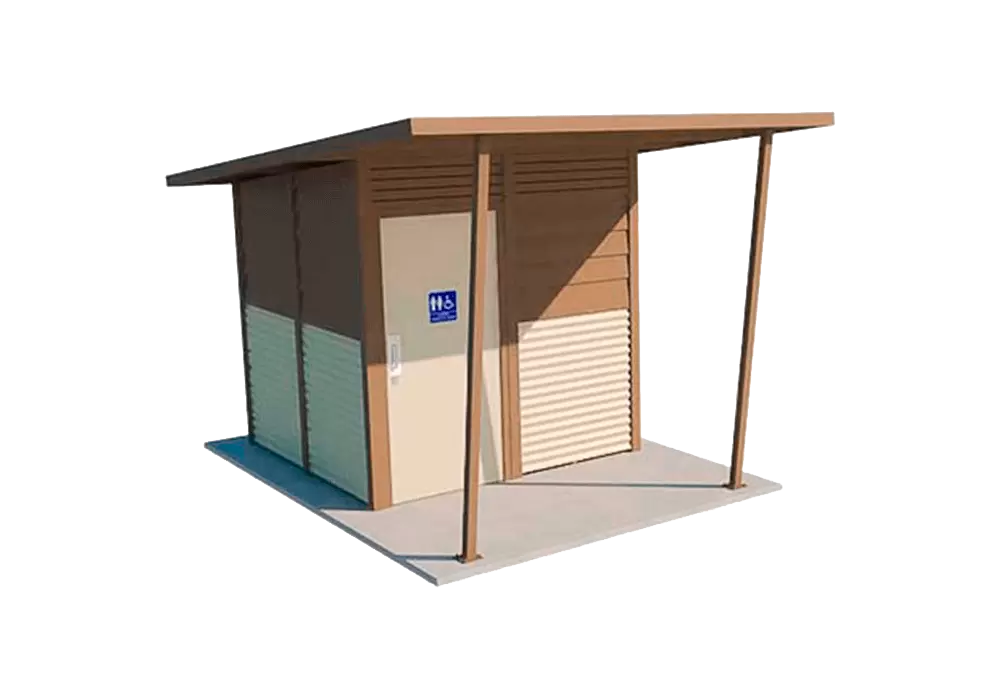

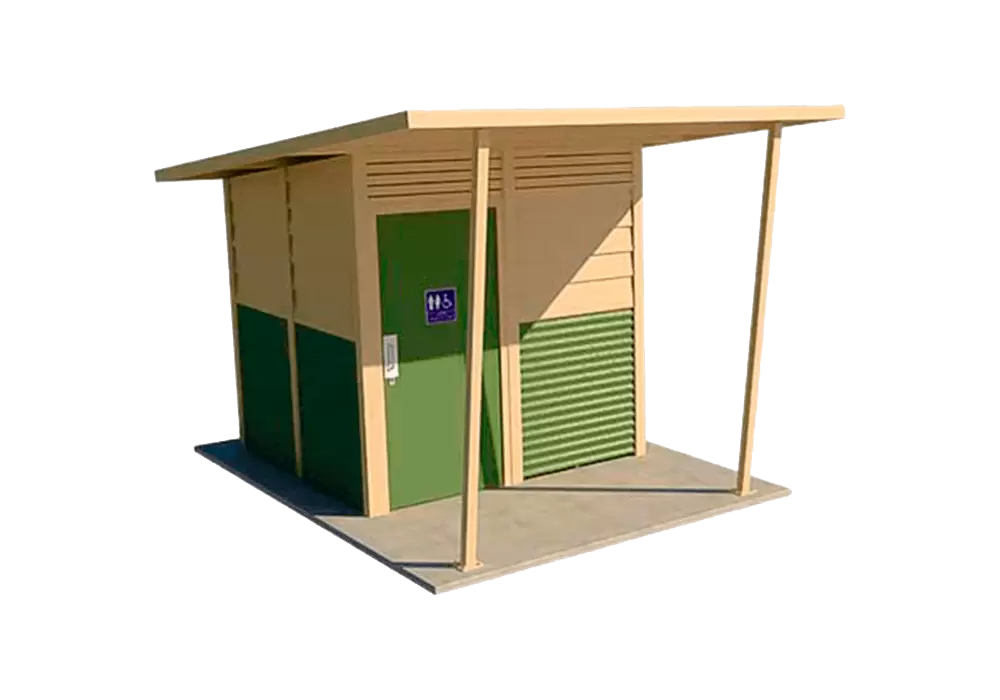

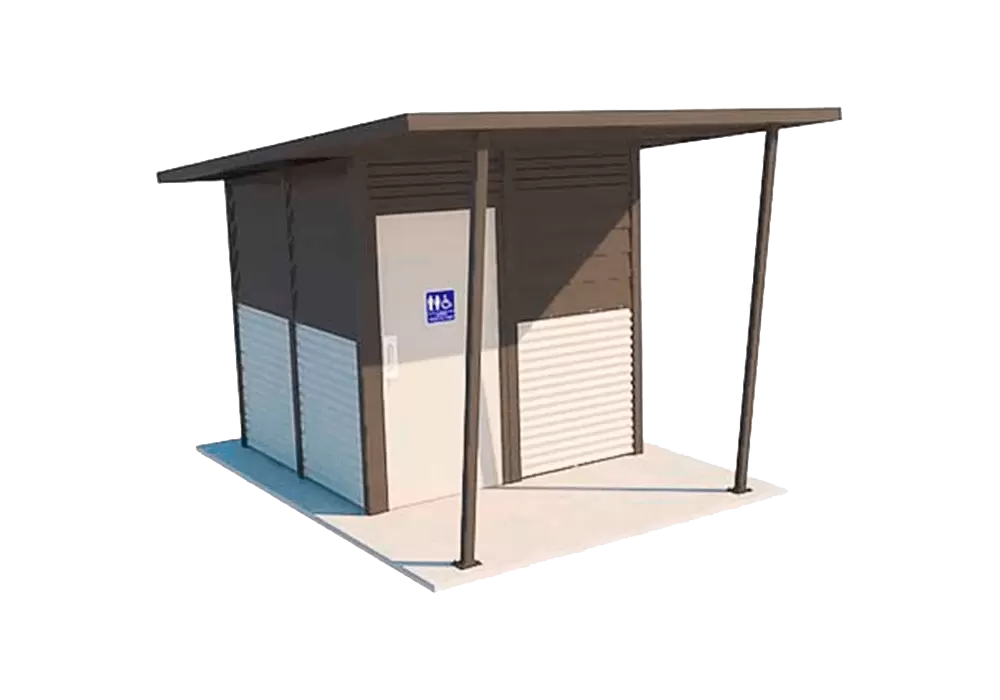

Yarra 1

The Yarra Toilet Building distinguishes itself from a standard toilet building with a distinctive skillion style roof line; a versatile design which integrates seamlessly into any environment. This building has found its place in many different environments, as it can sit well with varying architectural styles.



Specification

  • Wall Framing

    Fully welded robust steel SHS, hot dip galvanized after fabrication
  • Proprietary Prefab Wall Panel System

    Pre-clad panels, inside and out. Doors pre-hung in frames. Prefab for simple, fast and accurate bolt together onsite construction
  • External Wall Cladding

    • Colorbond Custom Orb (standard)
    • Alum Extruded Cladding
    • 1/2 Colorbond Custom Orb, 1/2 Alum Extruded Cladding
    • Vinyl Graphics
  • Internal Wall Cladding

    Miniorb - vandal resistant and easy maintenance
  • Roof

    Colorbond Custom Orb
  • Door

    Solid core, Colorbond clad
  • Door Hardware

    Heavy duty marine grade stainless steel, indicator bolts, door closers, internal and external pull handles
  • Door Signage

    Tactile Braille blue/white
  • Fixings

    Class 3 roof fixings, stainless steel structural fixings
  • Structural Engineering

    Engineered for your site, including Region D cyclonic locations
  • Exposed Steel

    Hot dip galvanised and powder-coated
  • Standard Fixtures

    Toilet suites, S/S Basin, S/S Grab Rails, S/S Toilet Roll Holder
  • Optional Extras

    • Solar lighting
    • Auto-timed door locking
    • Verandah screens
    • Additional internal fixtures
    • Off-grid solutions

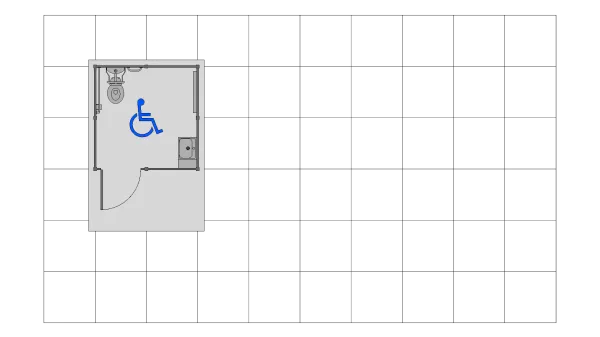

Standard 1 Floorplan

  • 2400mm x 2400mm
  • 1x Universal Access Toilet
