Floorplans

Choose floorplan and then corresponding building type to make an enquiry.

Filter by

Standard Shelter Multi Changing Places

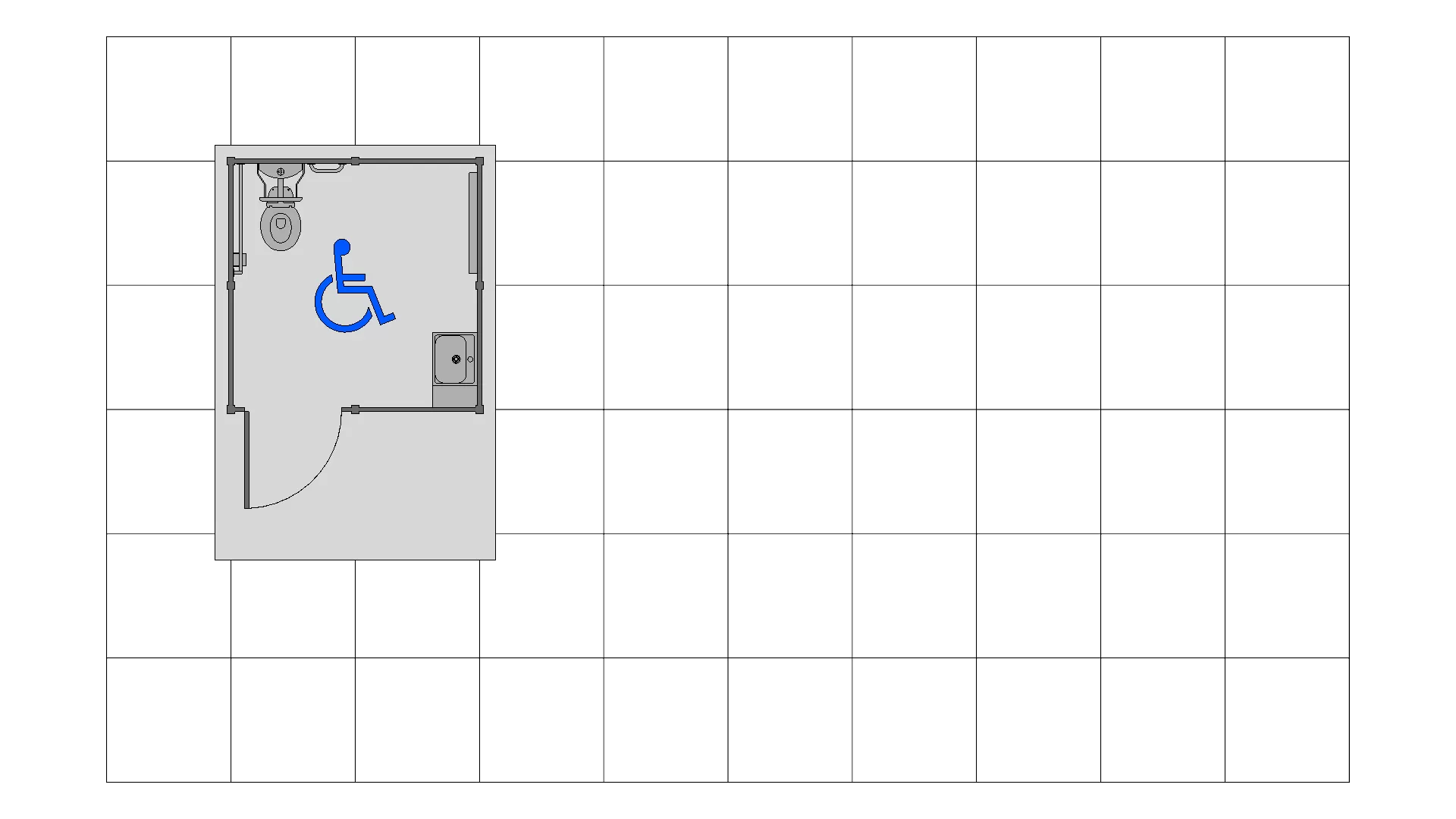

Standard 1

2400mm x 2400mm
1x Universal Access Toilet

Select Floorplan

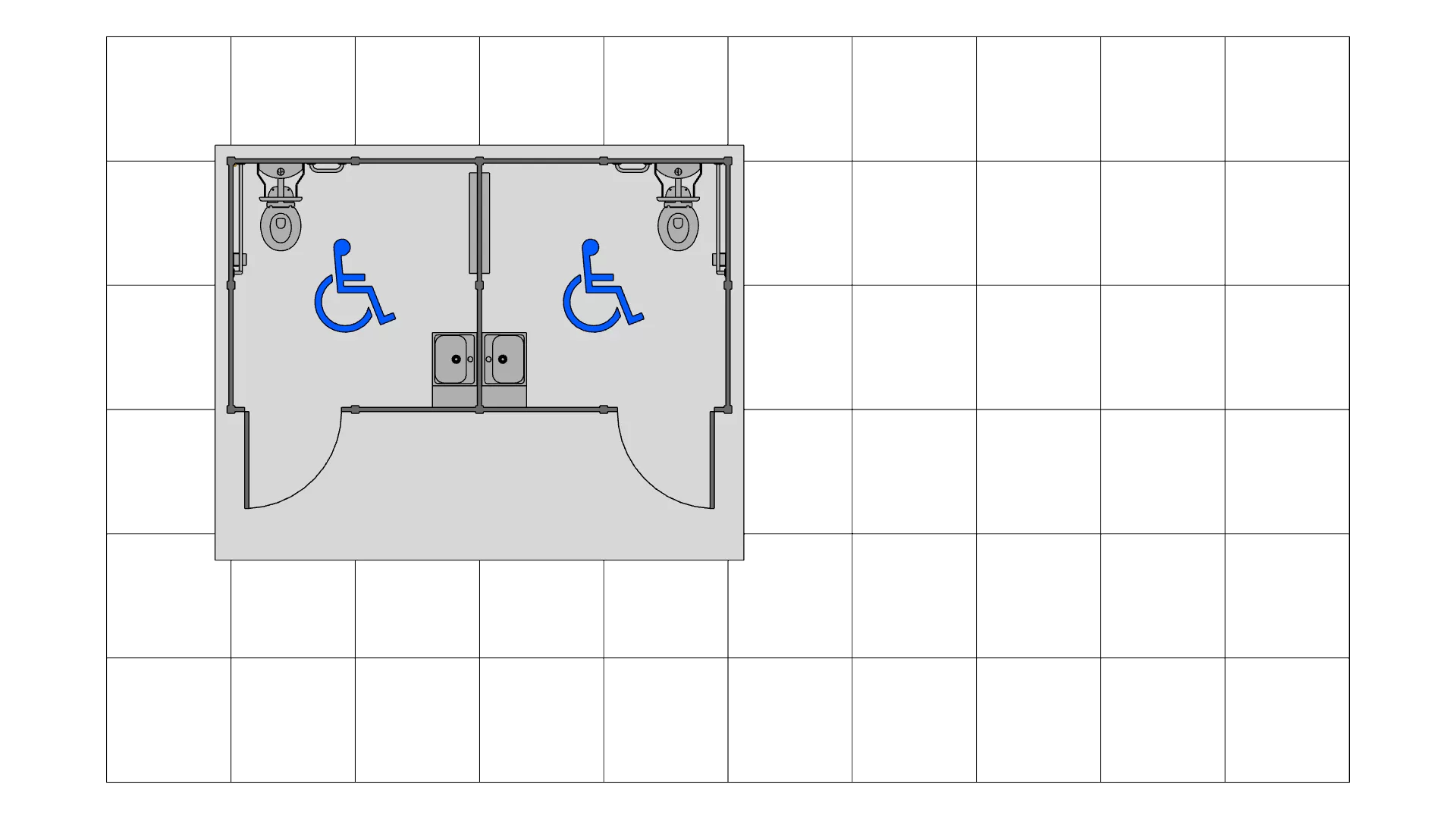

Standard 2

4800mm x 2400mm
2x Universal Access Toilet

Select Floorplan

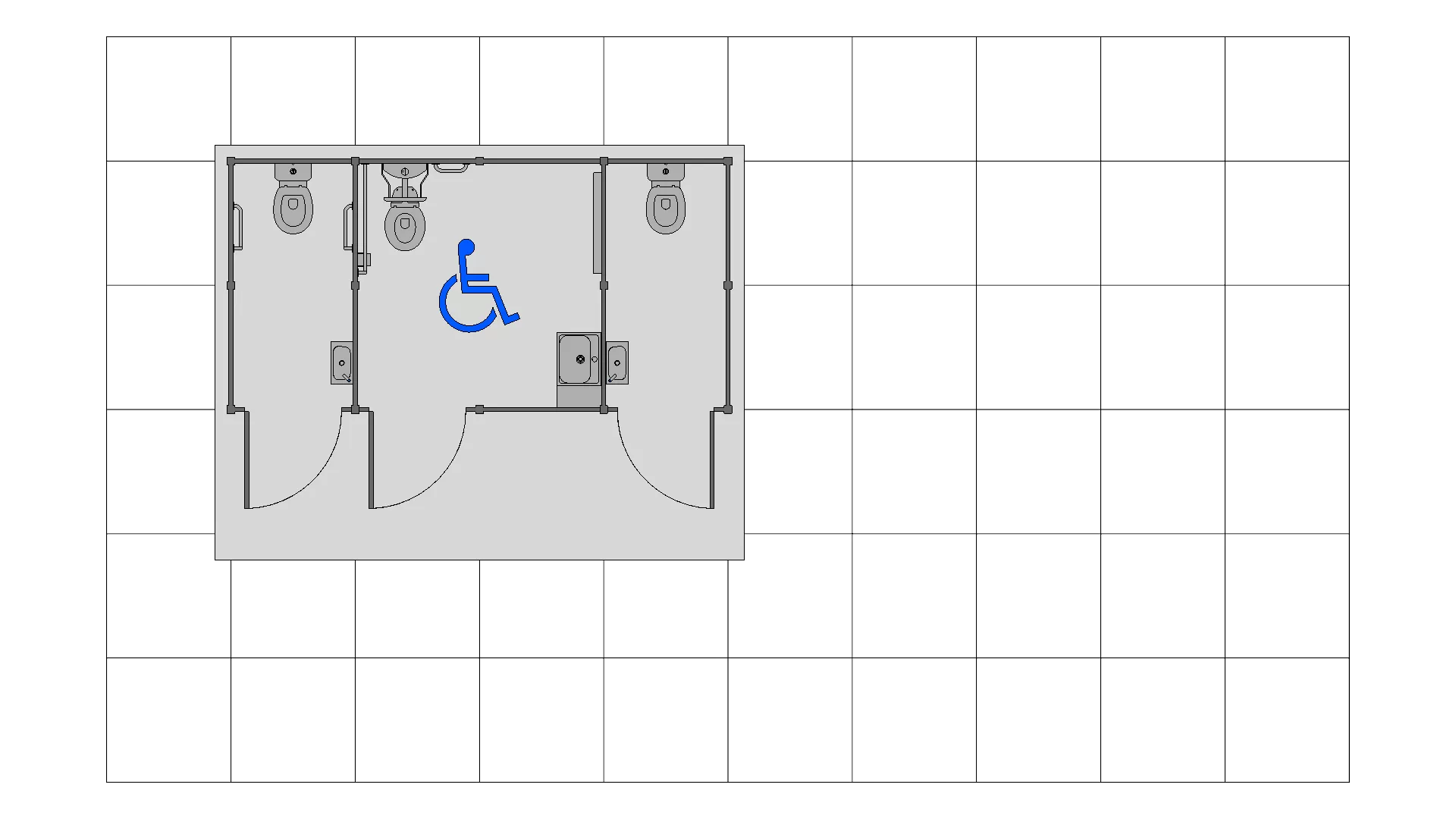

Standard 3

2 Ambulant Toilet
1 Universal Access Toilet
4800mm x 2400mm

Select Floorplan

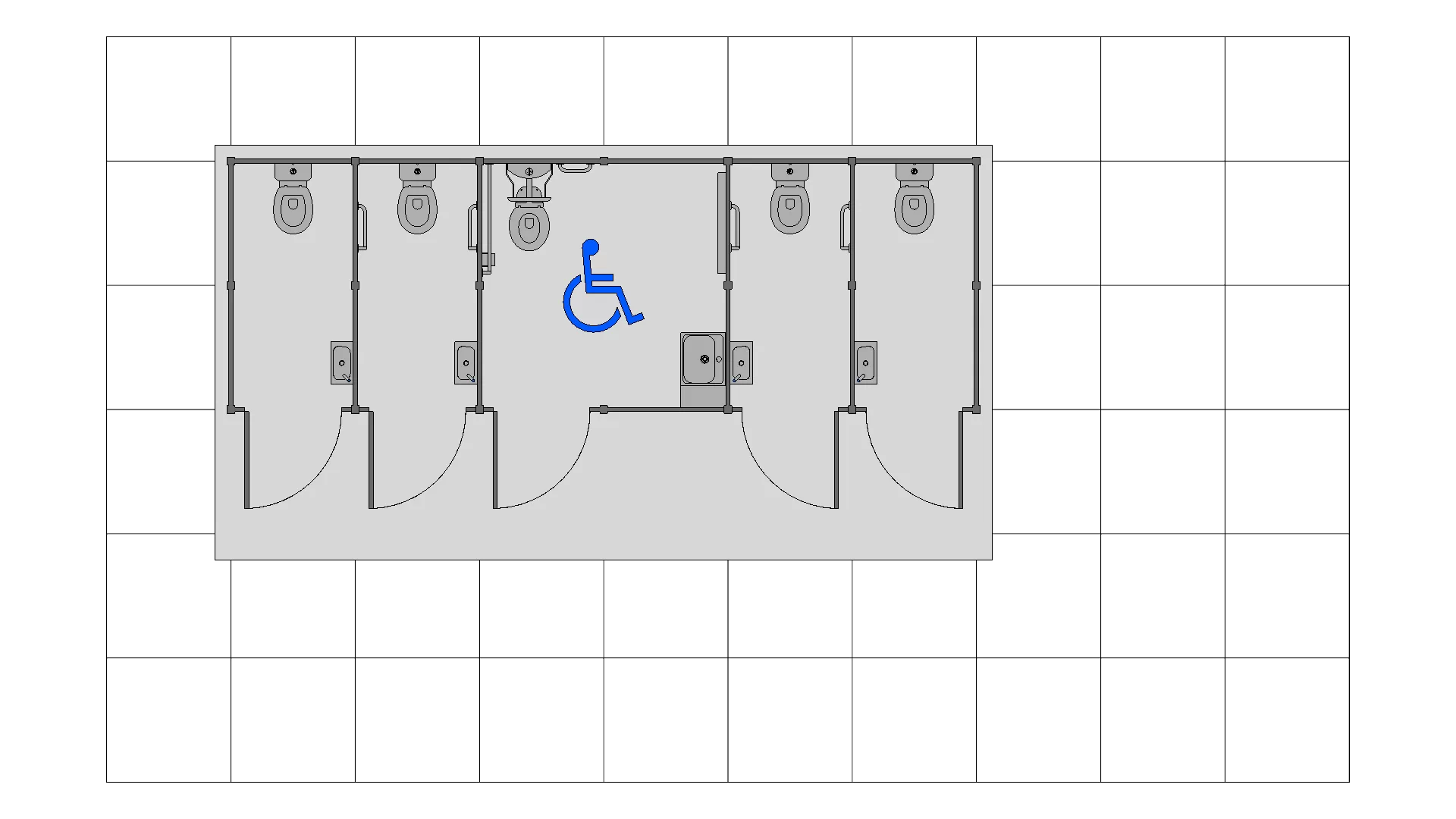

Standard 5

2 Standard Toilet
2 Ambulant Toilet
1 Universal Access Toilet
7200mm x 2400mm

Select Floorplan

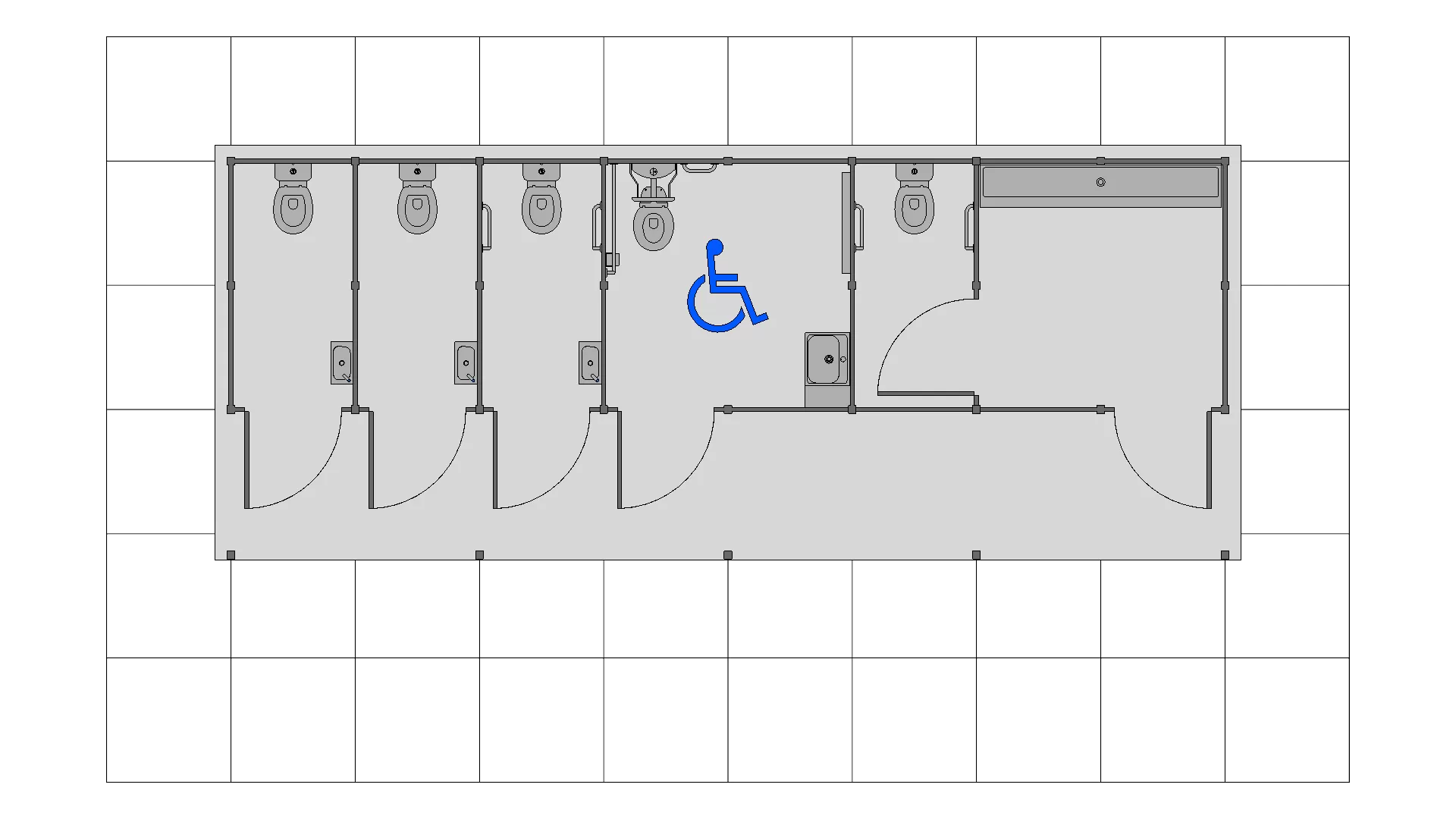

Standard 7

2 Standard Toilet
2 Ambulant Toilet
1 Universal Access Toilet
1 Multiple Urinal
9600mm x 2400mm

Select Floorplan

Design Your Own Floorplan

Have a different idea in mind?

 Select from the options and we can tailor any floorplan: size, rooms, orientation, fixtures.

Design My Layout

Frequently Asked Questions

Can the floorplans be customised?

Yes. All Modus buildings use a modular grid, so floorplans can be adapted to your project. You can change the number of cubicles, include accessible or unisex rooms, re-arrange circulation for CPTED and wayfinding, or adjust the layout to suit services, setbacks and site constraints-while keeping the efficiency and compliance of our proven designs.

Can I add a storeroom, showers or a parents room?

Absolutely. We can integrate:

Storerooms for cleaning equipment, bins and consumables
Service rooms / plant (electrical switchboard, hot-water system, comms, pumps/irrigation; secure external access as required)
Showers (cold or hot-water, timed or push-button controls, privacy/screens as required)
Parents rooms / baby change with benches, change tables, basins and pram space

These can be added to most plans with appropriate services, ventilation and accessibility clearances.

My site is narrow or irregular-can the floorplan be tailored to fit?

Usually, yes. The answer depends on the site geometry, access, levels and services, but our modular system makes "long-and-skinny" or stepped layouts practical. Share your plans and objectives and we'll confirm the best approach.

Not sure where to start? Book a complimentary design consultation (Teams or in-person) and bring any drawings or reports: design-consultation.modusaustralia.com.au

Are there any toilet rooms that have to be included?

Our standard floorplans are designed to align with AS1428 and the NCC. As a guide, a single-cubicle building must be a Universal Access Toilet (UAT). For larger layouts, such as 3 or 5 cubicles, we'll configure the mix to suit your project and user needs while meeting compliance.

Learn more about compliance

Will you provide CAD or elevation drawings before we place an order?

During the proposal stage we supply concept drawings and visuals so you can see how the building will look and confirm scope. Detailed CAD files and full elevations are issued after we receive a Purchase Order. This ensures the design is locked, compliant, and construction-ready while giving you clear visuals up front.

Can you coordinate with our architect or builder?

No problem. Modus frequently collaborates with architects, builders and project managers. We can align with your documentation standards, attend design meetings, and coordinate services and compliance requirements so the final solution meets your vision, budget and programme.

Do you have a structural warranty?

Yes. Every Modus toilet building includes a 20-year structural warranty covering the frame and main structural components. Your building is engineered to Australian Standards for long-term performance in public environments, giving you confidence it's built to last.
